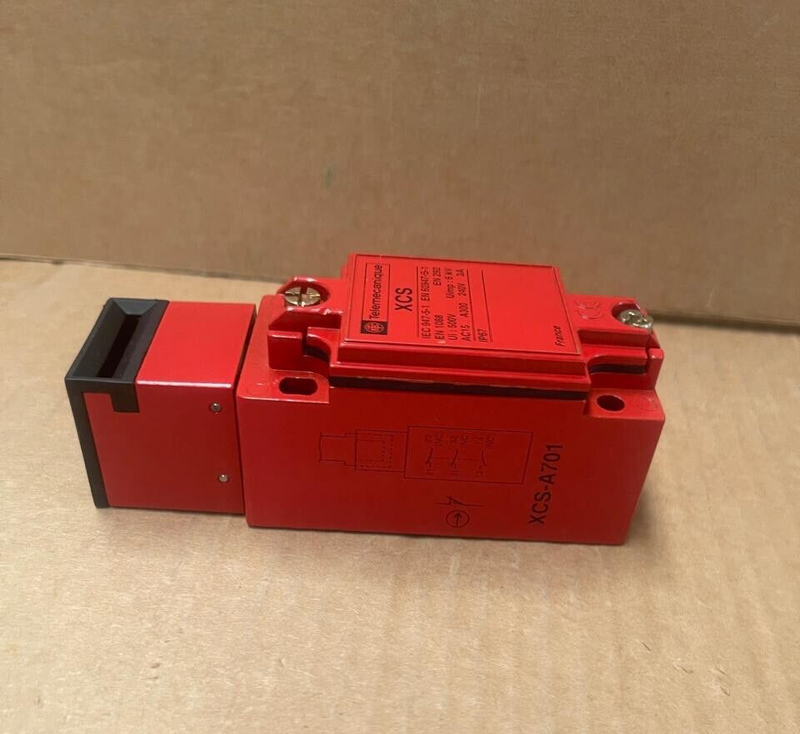

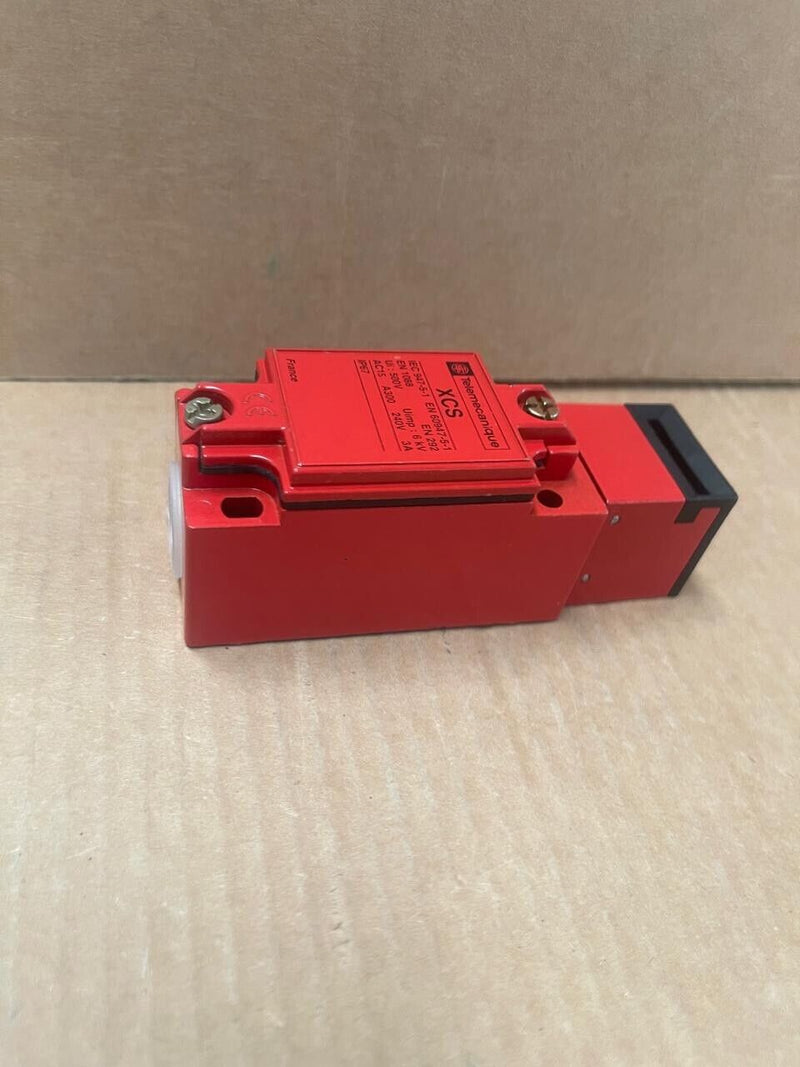

Telemecanique - XCSA701 - Metal Safety Switch, 2NC+1NO, Slow Break, Pg13.5

The Schneider Electric XCSA701 is a metal safety switch from the Telemecanique Safety switches XCS range, designed for industrial applications requiring reliable safety interlocking. Key features include:

• Contact Configuration: 2 Normally Closed (NC) + 1 Normally Open (NO) contacts with slow-break, break-before-make operation, ensuring dependable safety performance.

• Actuator Type: Key-operated turret head, suitable for applications where a key or actuator is used to engage the switch.

• Cable Entry: One entry tapped for Pg13.5, accommodating cable diameters between 9 to 12 mm, facilitating straightforward electrical connections.

• Electrical Ratings:

• Rated Operational Current (Ie):

• 6 A at 120 V AC (AC-15, A300)

• 3 A at 240 V AC (AC-15, A300)

• 0.55 A at 125 V DC (DC-13, Q300)

• 0.27 A at 250 V DC (DC-13, Q300)

• Conventional Enclosed Thermal Current (Ithe): 10 A

• Rated Insulation Voltage (Ui): 500 V conforming to IEC 60947-1

• Rated Impulse Withstand Voltage (Uimp): 6 kV conforming to IEC 60947-5-1

• Mechanical Durability: Rated for ≥1,000,000 operating cycles, ensuring long-term reliability in industrial environments.

• Positive Opening Operation: Incorporates positive opening operation for NC contacts, enhancing safety by ensuring direct mechanical separation of contacts.

• Housing Material: Constructed with a robust metal housing, providing durability and resistance to industrial environmental factors.

• Ingress Protection: Rated IP67, offering protection against dust and water ingress, suitable for harsh industrial environments.

• Standards Compliance: Conforms to international standards, including IEC 60947-5-1 and IEC 60204-1, ensuring compatibility and safety in industrial applications.

This safety switch is ideal for safeguarding machinery and equipment by monitoring the position of protective guards, ensuring that operations are halted when safety guards are not properly positioned.
