Schneider Electric - XPSMCMRO0004DAG - Safety Controller Output Module

The Schneider Electric XPSMCMRO0004DAG is an output module designed for use with the Preventa XPSMCM modular safety controller system. This module expands the safety controller’s capabilities by providing additional relay outputs, enabling the control of safety-related actuators and devices in industrial automation applications.

Key Features:

• Relay Outputs: Equipped with 4 relay outputs, allowing for direct control of safety actuators such as contactors and valves.

• Modular Integration: Seamlessly integrates into the XPSMCM safety controller system, enhancing flexibility and scalability.

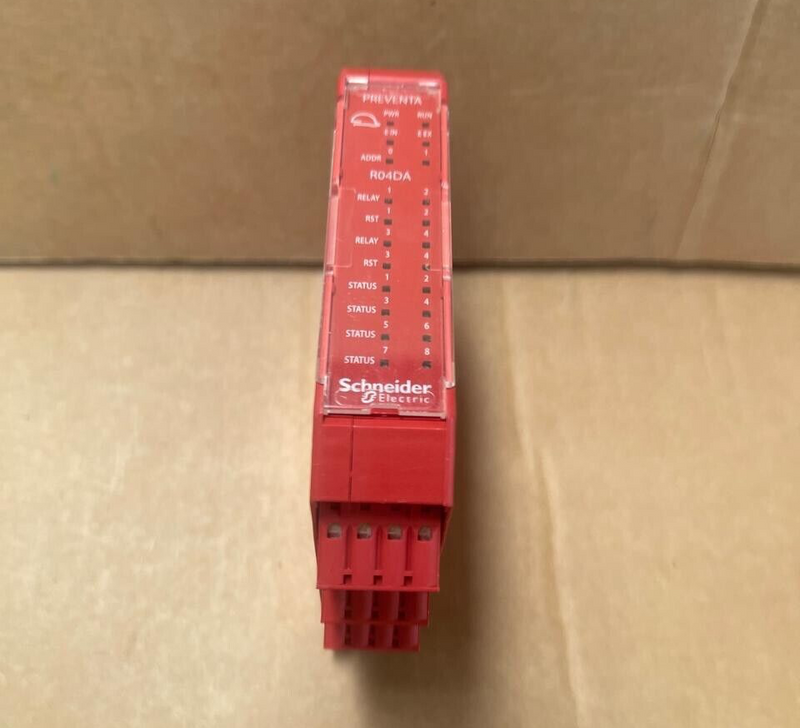

• Diagnostic LEDs: Features LED indicators for easy status monitoring and troubleshooting.

• Compact Design: Occupies minimal space in control panels, facilitating efficient system design.

Technical Specifications:

• Number of Outputs: 4 relay outputs

• Output Type: Relay, normally open (NO) contacts

• Contact Rating: 6 A at 250 V AC / 30 V DC

• Electrical Durability: 100,000 cycles at 6 A, 250 V AC

• Mechanical Durability: 10,000,000 cycles

• Response Time: < 10 ms

• Power Supply: 24 V DC

• Power Consumption: 2 W

• Operating Temperature: -10°C to +55°C

• Mounting: DIN rail

• Dimensions: 22.5 mm (W) x 99 mm (H) x 114.5 mm (D)

• Weight: Approximately 200 grams
