The Schneider Electric SD326DU25S2 is a 3-phase stepper motor drive from the Lexium SD3 series, designed to provide high torque even at low speeds. It features an integrated pulse/direction communication interface and operates with a motor phase current of up to 2.5 A. This drive is suitable for applications requiring precise motion control, such as printing, packaging, handling, and labeling.

Key Features:

• High Torque at Low Speeds: Ensures efficient performance in applications where maintaining torque at low speeds is critical.

• Integrated Pulse/Direction Interface: Simplifies communication with control systems, facilitating precise motion control.

• Natural Convection Cooling: Utilizes natural convection for cooling, eliminating the need for additional cooling systems.

• Compact Design: With dimensions of 72 mm (W) x 140 mm (D) x 145 mm (H), it is designed to fit into space-constrained environments.

Technical Specifications:

• Model Number: SD326DU25S2

• Series: Lexium SD3

• Motor Phase Current: Up to 2.5 A

• Supply Voltage: 100–120 V AC / 200–230 V AC

• Nominal Power: 270 W at 230 V

• Maximum Mechanical Speed: 3000 RPM

• Cooling Method: Natural convection

• Protection Rating: IP20 and IP40

• Dimensions: 72 mm (W) x 140 mm (D) x 145 mm (H)

• Weight: 1.1 kg

Applications:

• Printing Industry: Provides precise control for printing machinery.

• Packaging: Ensures accurate motion control in packaging equipment.

• Handling and Labeling: Suitable for systems requiring exact positioning and movement.

• Textile Industry: Offers reliable performance for textile machinery operations.

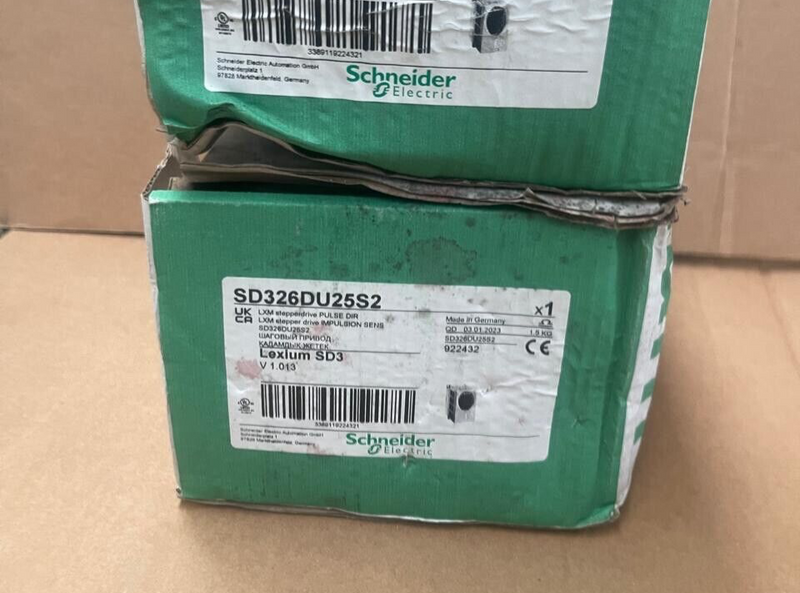

Schneider Electric - SD326DU25S2 - Lexium SD3 Motion Control Stepper Motor Drive
