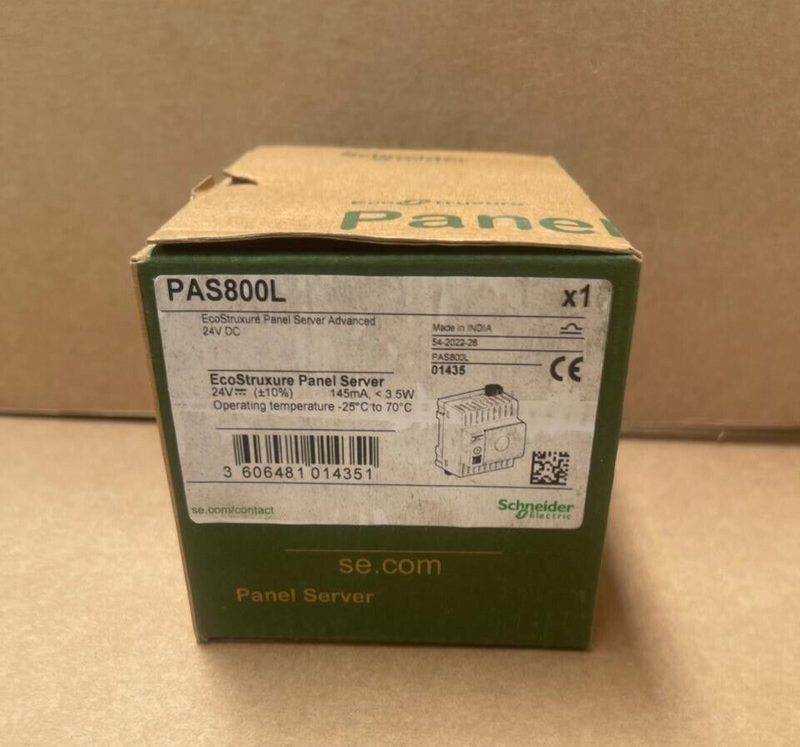

Schneider Electric - PAS800L - EcoStruxure Panel Server Advanced Datalogger

The Schneider Electric PAS800L is an advanced datalogger and energy server designed to integrate wired and wireless smart IoT devices with edge control software or cloud applications. It facilitates seamless connectivity for devices such as PowerTag Energy, PowerLogic HeatTag, and various Modbus/RS485 and Modbus/TCP devices, including power meters and protection devices from Schneider Electric. The PAS800L offers a three-year datalogger with user-friendly web pages, providing energy dashboards, trend analysis, and alarm monitoring. It supports easy commissioning through embedded web pages or with EcoStruxure Power Commissioning software, offering commissioning reports and advanced features.

Key Features:

• Comprehensive Connectivity: Connects both wired and wireless devices to edge control software or cloud applications.

• Extensive Device Support: Compatible with Schneider Electric’s wireless devices and most Modbus/RS485 and Modbus/TCP devices.

• Advanced Data Logging: Provides a three-year datalogger with energy dashboards, trend analysis, and alarm views.

• User-Friendly Commissioning: Features embedded web pages and supports EcoStruxure Power Commissioning software for straightforward setup and advanced functionalities.

• Robust Security and Diagnostics: Offers advanced diagnostic information and logs for efficient troubleshooting.

Technical Specifications:

• Model Number: PAS800L

• Power Supply: 24 V DC, 3 W Max

• Operating Temperature: –25 °C to +70 °C

• Humidity Range: 5–95% relative humidity

• Dimensions: Width: 71.8 mm; Depth: 70.2 mm; Height: 85 mm

• Mounting: DIN rail mounting in a modular enclosure

• Certifications: CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC, UKCA

• Connectivity:

• Ethernet: Two 10/100 Base-T Ethernet RJ45 connectors

• Modbus RS485: Open-style connector

• Wireless: Connectors for external Wi-Fi/Bluetooth antenna and external antenna for wireless devices

• Digital Inputs: Two connectors for digital inputs for dry contact or WAGES

Applications:

• Energy Management: Monitors and logs energy consumption data for analysis and optimization.

• Building Automation: Integrates various IoT devices for centralized control and monitoring.

• Industrial Automation: Connects and manages multiple devices within industrial control systems.
