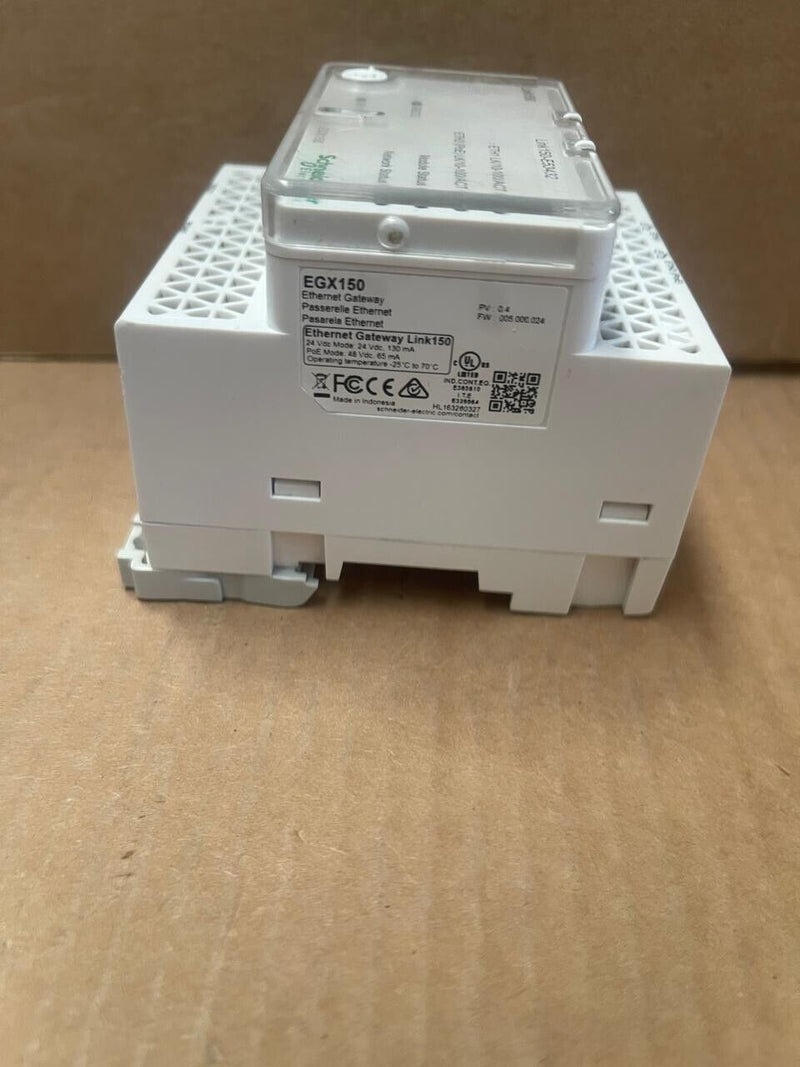

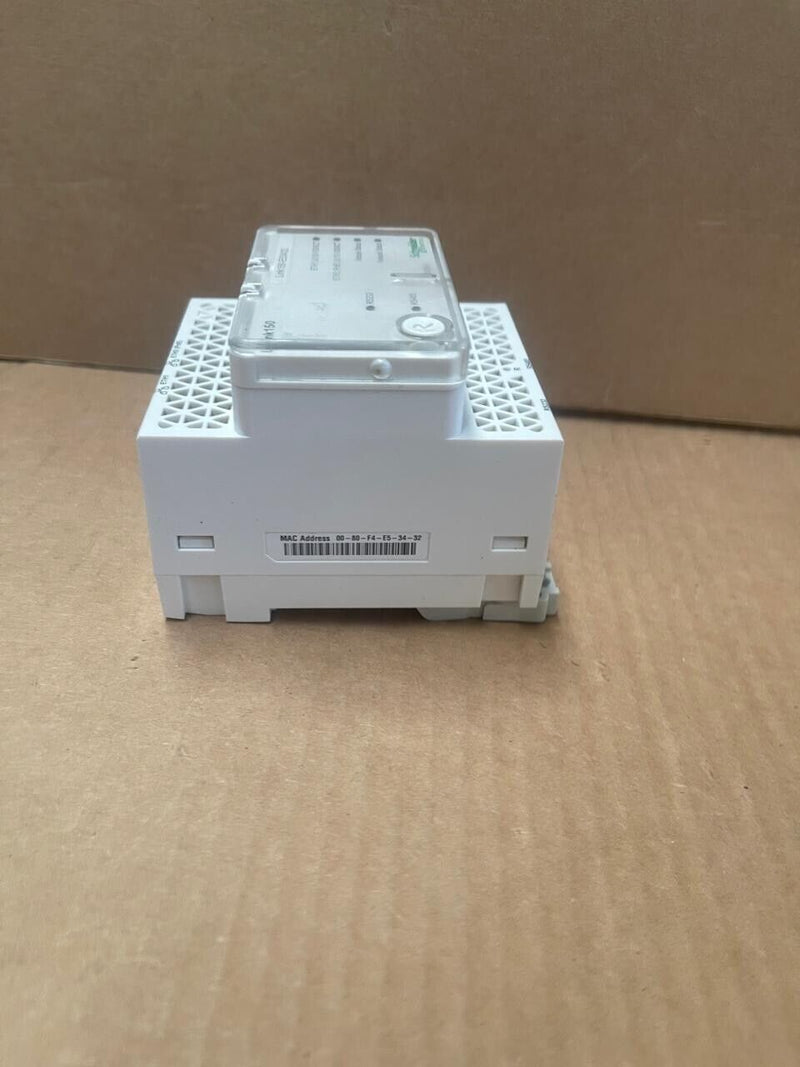

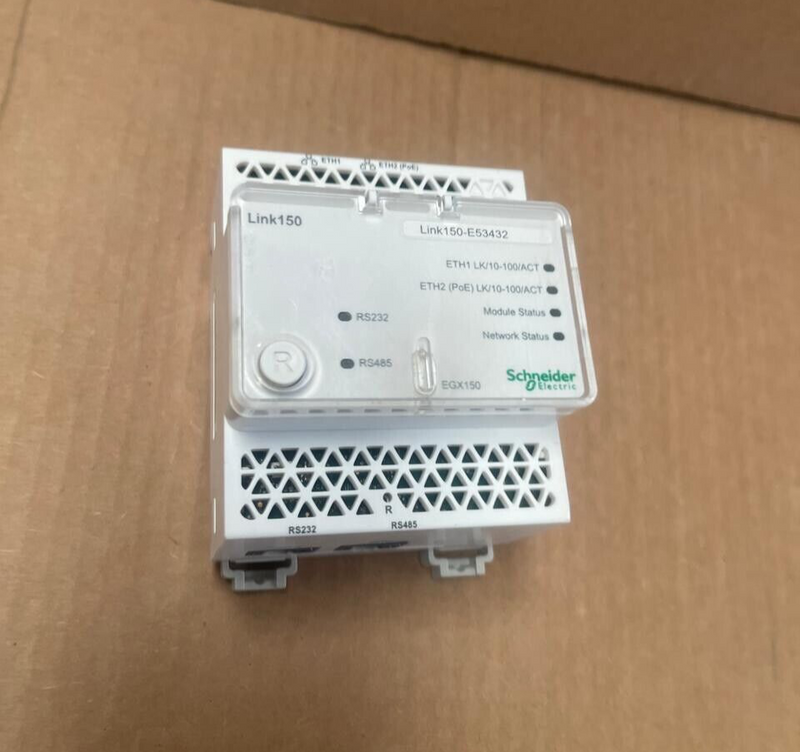

Schneider Electric - EGX150 - Link150 Ethernet Gateway, 2 Ports, 24V DC/PoE

The Schneider Electric EGX150, also known as the Link150 Ethernet Gateway, is designed to provide reliable Ethernet connectivity for various applications, ranging from single buildings to multi-site enterprises. Key features include:

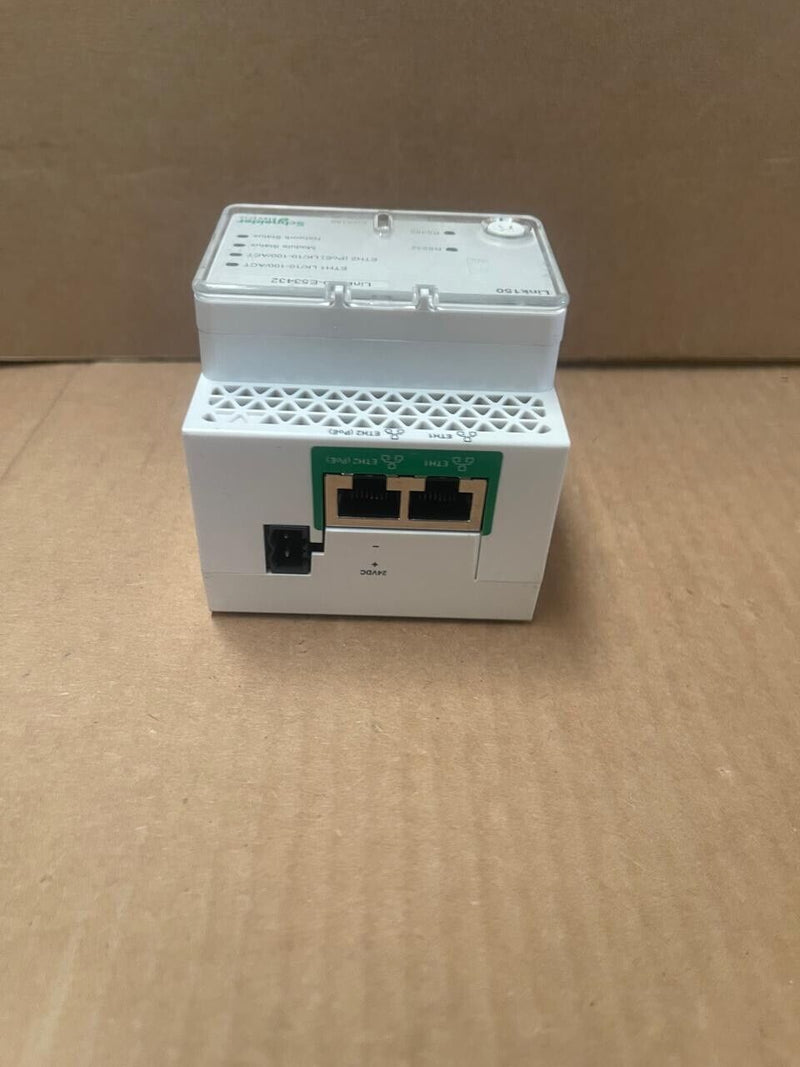

• Dual Ethernet Ports: Facilitates easy daisy-chaining of devices, reducing the need for additional networking hardware.

• Power Options: Supports both 24 V DC external power supply and Power over Ethernet (PoE) conforming to IEEE 802.3af standards, offering flexibility in installation.

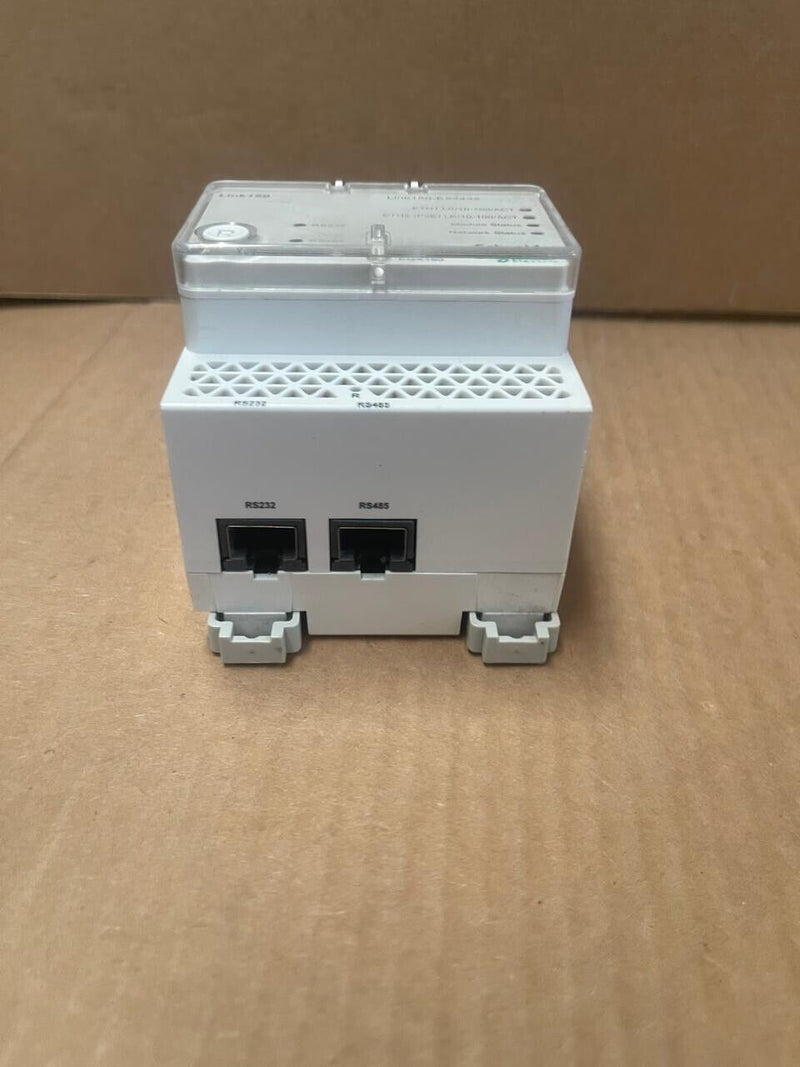

• Communication Protocols: Compatible with Modbus TCP/IP for Ethernet and Modbus RTU, ASCII, JBUS, and PowerLogic (SY/MAX) for serial communications, ensuring seamless integration with various devices.

• Web Server: Includes an embedded web server for easy configuration and monitoring via a standard web browser.

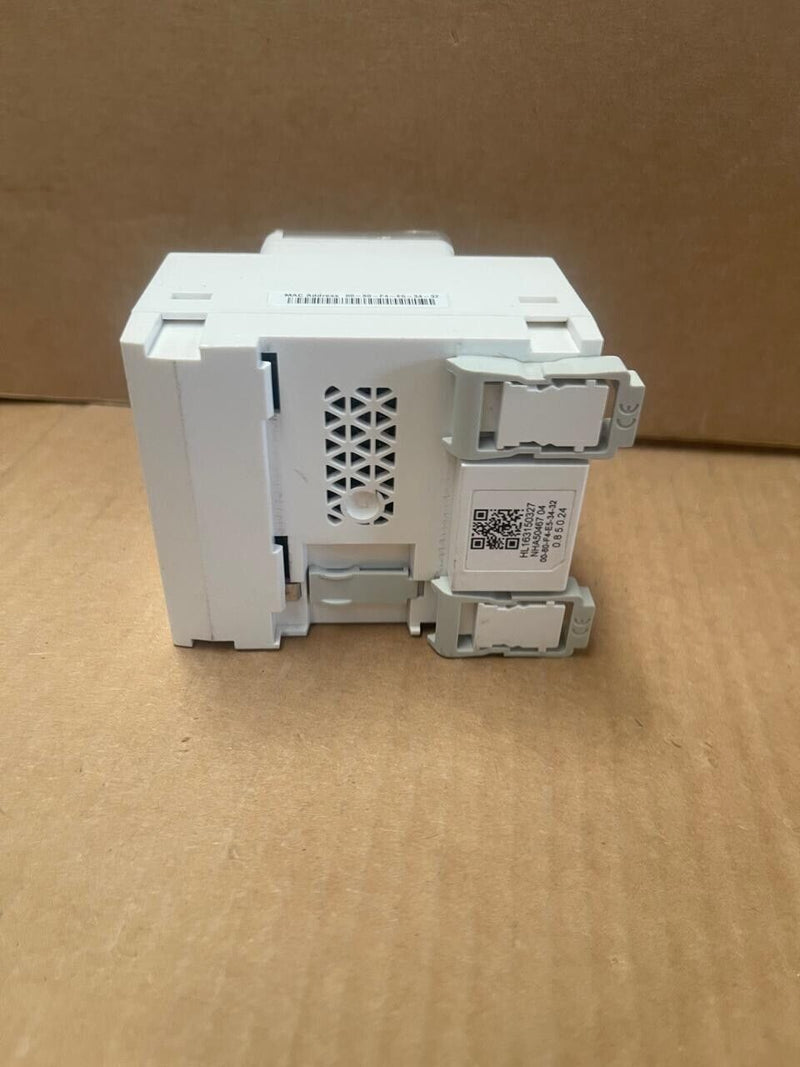

• Compact Design: DIN rail mountable with dimensions of 105 mm (height) x 71 mm (width) x 72 mm (depth), suitable for space-constrained environments.
