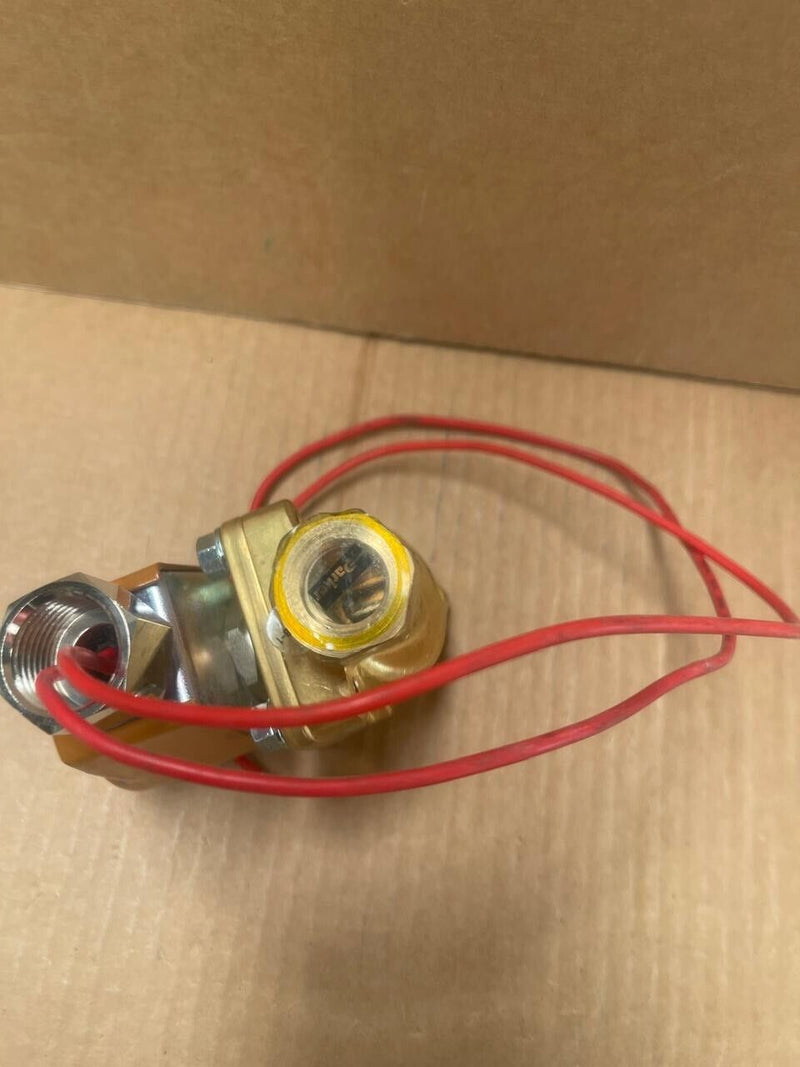

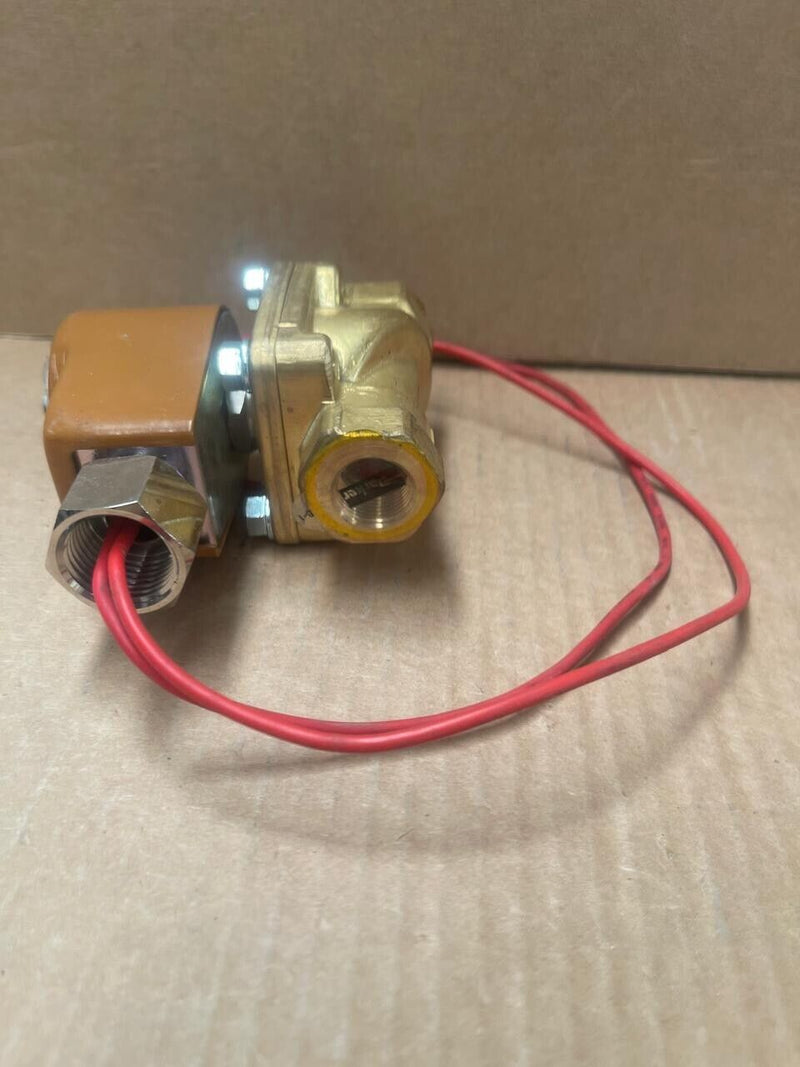

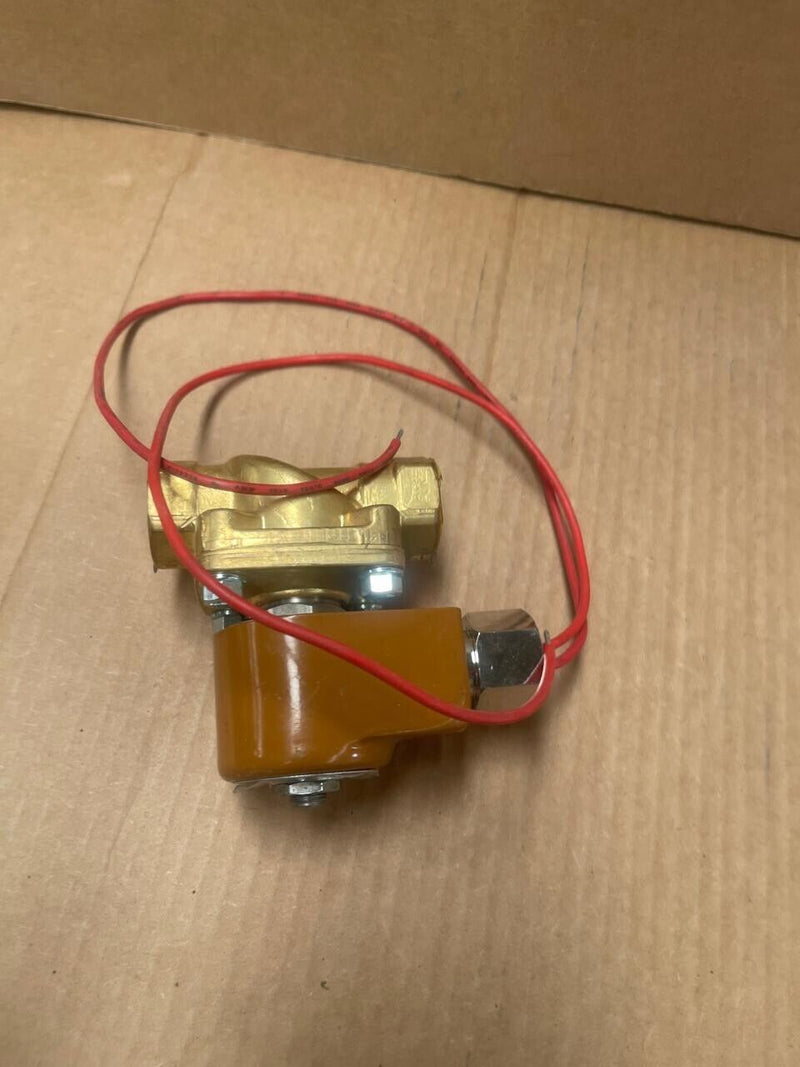

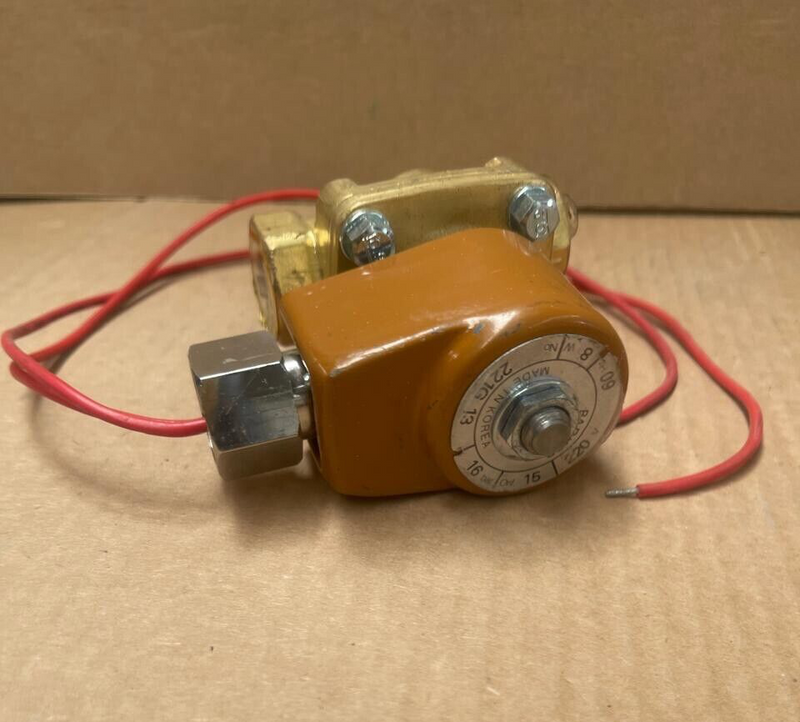

Parker - 221G13 K3410 - 2-Way Normally Closed Solenoid Valve, 3/8” Port

The Parker 221G13K3410 is a 2-way, normally closed solenoid valve designed for controlling the flow of air, neutral gases, and liquids in various industrial applications. Key features include:

• Port Size: 3/8” (G 3/8), suitable for standard piping connections.

• Orifice Diameter: 15 mm, allowing for a flow factor (Kv) of approximately 3.9 m³/h, facilitating efficient fluid control.

• Body Material: Constructed from 316L stainless steel, offering excellent resistance to corrosion and suitability for aggressive environments.

• Seal Material: Equipped with FKM (Viton) seals, providing compatibility with a wide range of media and temperatures.

• Operating Pressure:

• Minimum: 0 bar

• Maximum: 16 bar for AC operation; 6 bar for DC operation

• Fluid Temperature Range: -10°C to +100°C, accommodating various process requirements.

• Coil Options: Compatible with multiple coil types, including standard and high-temperature variants, allowing for customization based on application needs.

• Mounting: Designed for pipe mounting, ensuring straightforward installation in existing systems.

• Applications: Ideal for use in industrial equipment, process industries, water treatment, and food and beverage processing, particularly in environments where corrosion resistance is essential.
