The Omron E5CJ-R2HB is a compact digital temperature controller designed for precise temperature regulation in various industrial applications. Key features include:

• Size: 1/16 DIN (48 x 48 mm), allowing for easy panel integration.

• Control Output: Relay output (SPST-NO, 3 A at 250 VAC resistive load), suitable for direct control of heating or cooling devices.

• Input Types: Supports multiple sensor inputs, including thermocouples (K, J, T, L, U, N) and platinum resistance thermometers (Pt100, JPt100), selectable via internal settings.

• Alarms: Equipped with two alarm points and one event input, providing flexibility in process monitoring and safety functions.

• Heater Burnout Alarm: Includes a heater burnout alarm function when used with compatible current transformers (E54-CT1 or E54-CT3), enabling early detection of heater failures.

• Supply Voltage: 100 to 240 VAC, 50/60 Hz, accommodating standard industrial power supplies.

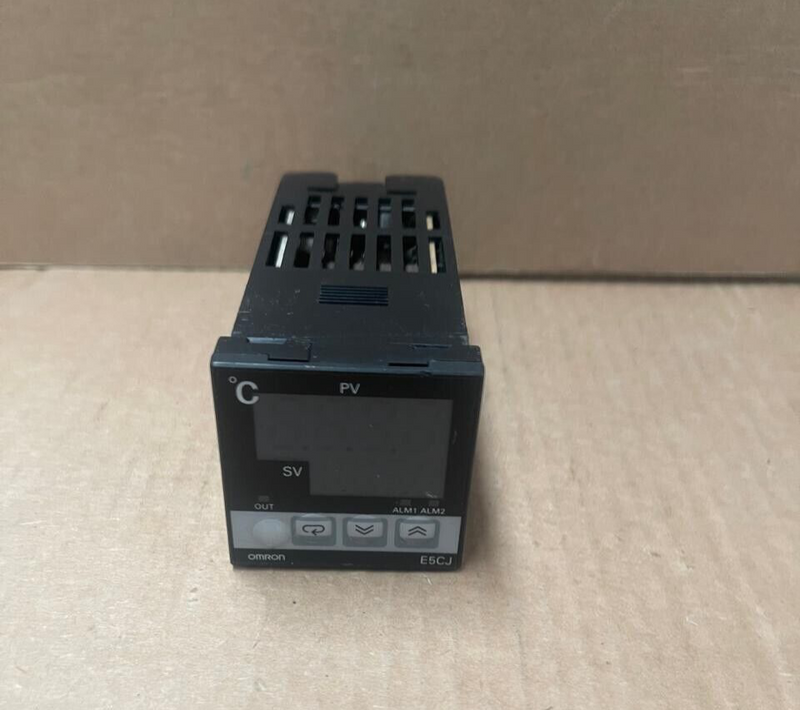

• Display: Dual digital display with red (PV) and green (SV) LEDs for clear visibility of process and setpoint values.

• Control Method: Advanced PID control with fuzzy self-tuning and auto-tuning capabilities, ensuring optimal performance under varying process conditions.

• Operating Temperature Range: -10°C to 55°C, suitable for a wide range of industrial environments.

• Mounting: Panel mounting with included adapter, facilitating straightforward installation.

• Certifications: Complies with relevant international standards for safety and performance.

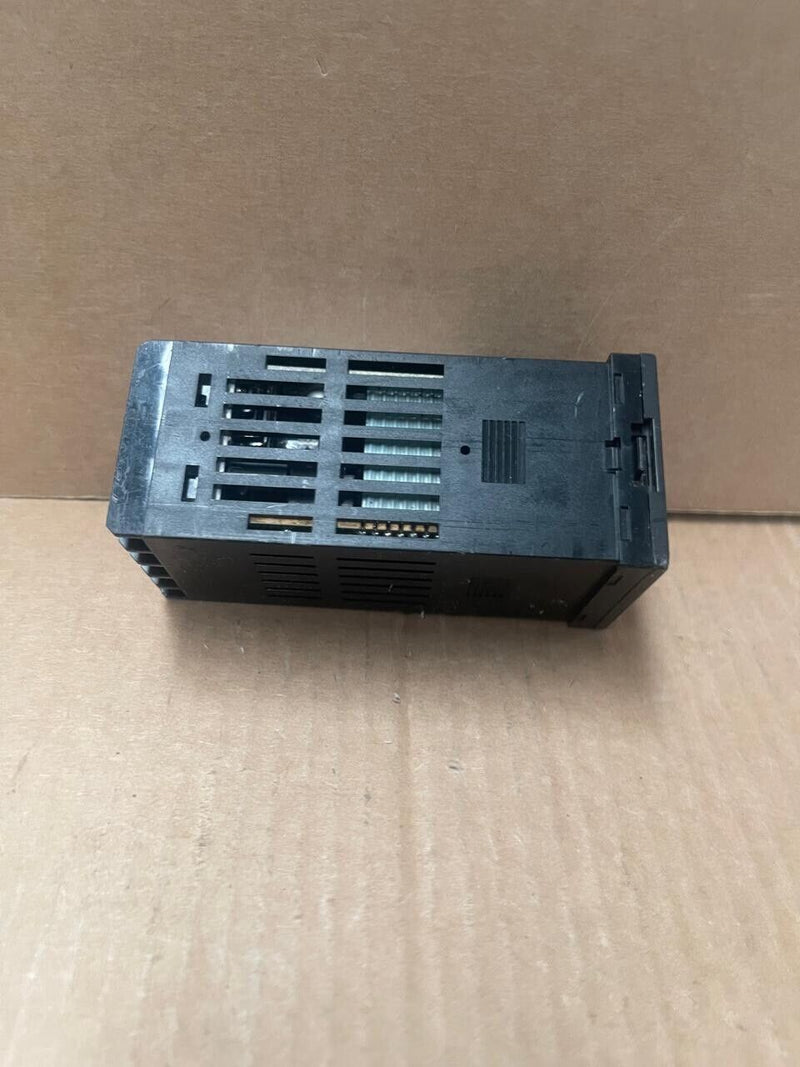

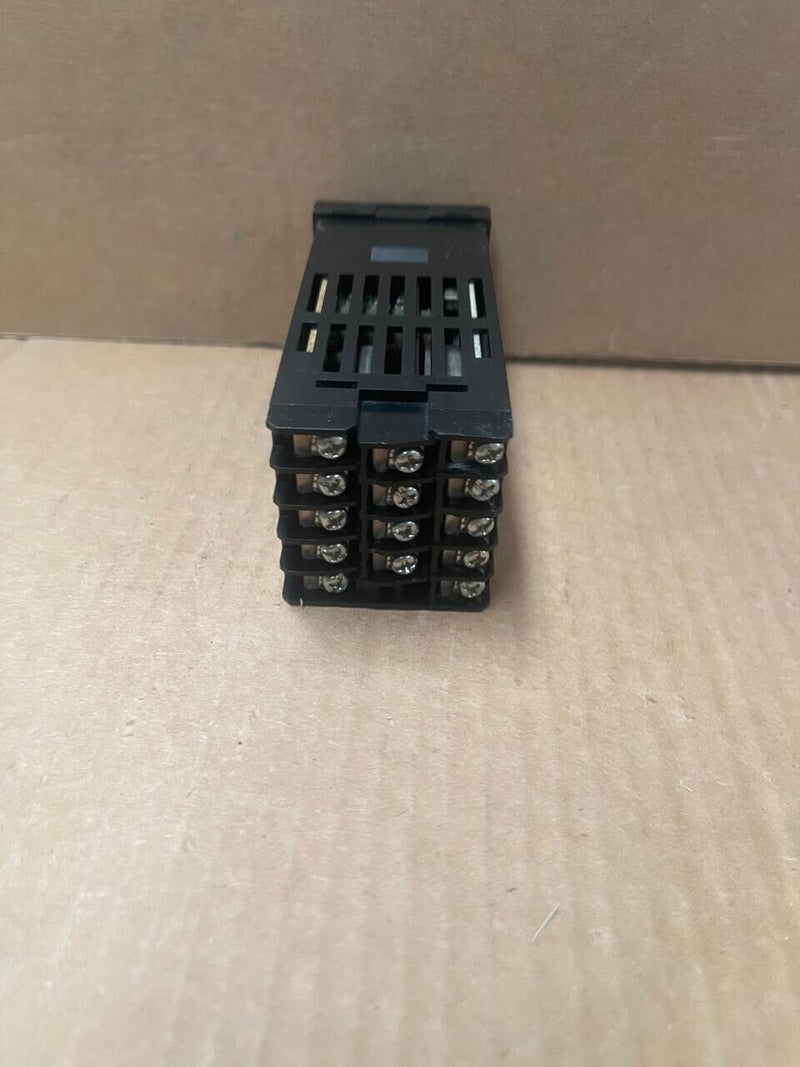

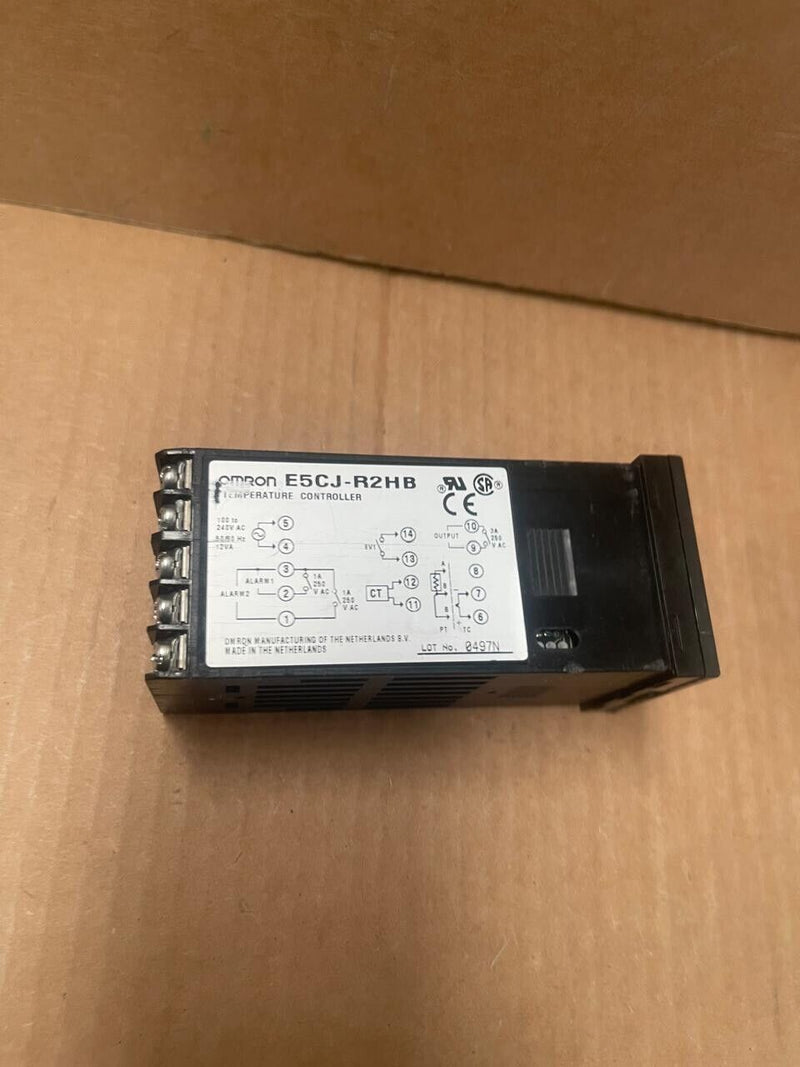

Omron - E5CJ-R2HB - Digital Temperature Controller, 1/16 DIN, Relay Output
