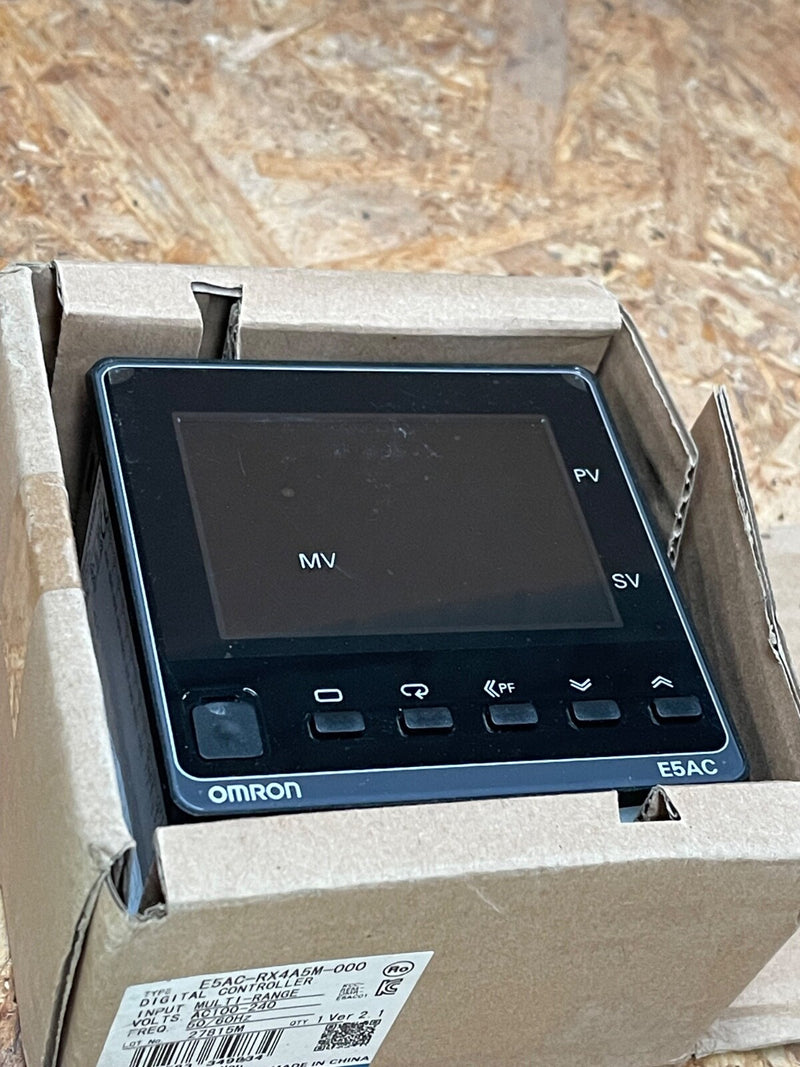

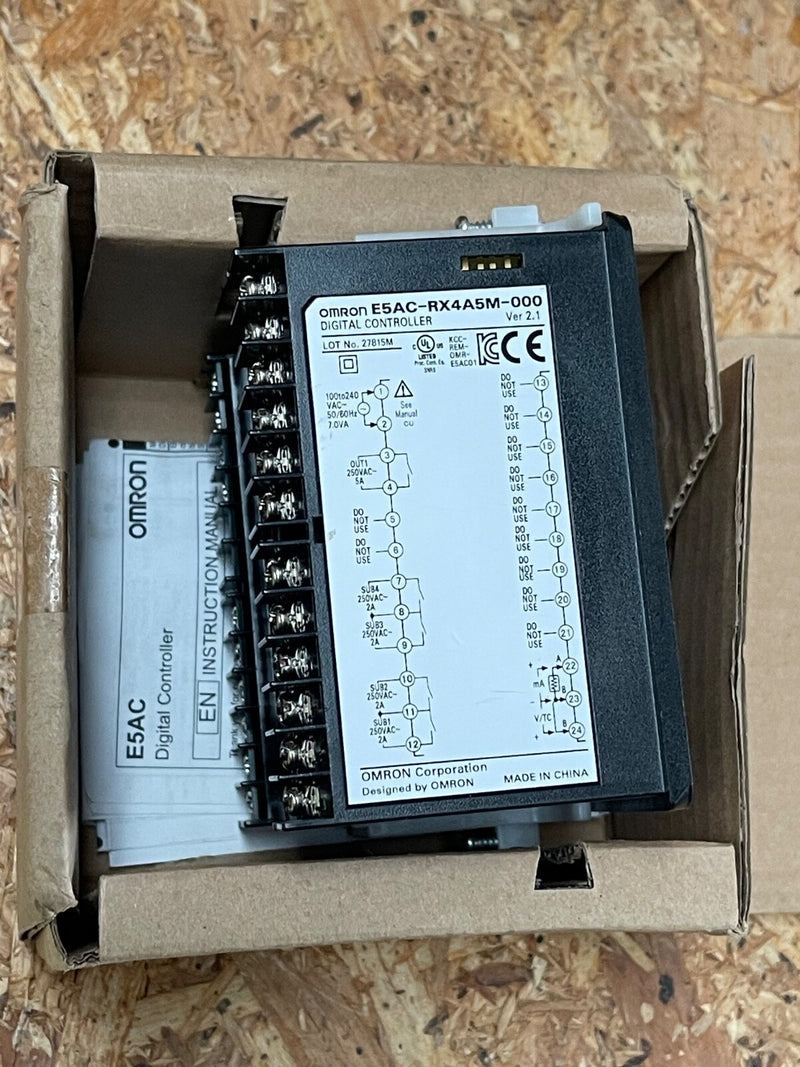

The Omron E5AC-RX4A5M-000 is a high-performance digital temperature controller designed for precise process control in industrial applications. Featuring a large, easy-to-read white LCD display and a compact 1/4 DIN (96×96 mm) housing, this controller supports a wide range of input types, including thermocouples, RTDs, and analog signals. It offers advanced PID control, four alarm outputs, and a relay control output, making it suitable for various temperature regulation tasks.

Key Features:

Model: E5AC-RX4A5M-000
Brand: Omron
Controller Type: Digital PID Temperature Controller
Display: White LCD, 25 mm character height
Panel Size: 1/4 DIN (96×96 mm)
Input Types: Thermocouple (B, C, E, J, K, L, N, R, S, T, U, WRe5-26), RTD (Pt100, JPt100), Analog (0–10 V, 0–20 mA, 4–20 mA)
Temperature Range: –200 to 2300 °C
Control Output: Relay (5 A at 250 V AC)
Alarm Outputs: 4
Supply Voltage: 100–240 V AC
Sampling Period: 50 ms
Control Method: ON/OFF, PID
Mounting Type: Panel Mount
Termination Style: Screw Terminal
Protection Rating: IP66 (front panel)
Operating Temperature: –10 to +55 °C
Weight: Approximately 250 g
Applications: Ideal for industrial process control, furnace management, and other temperature regulation systems requiring precise and reliable performance.
