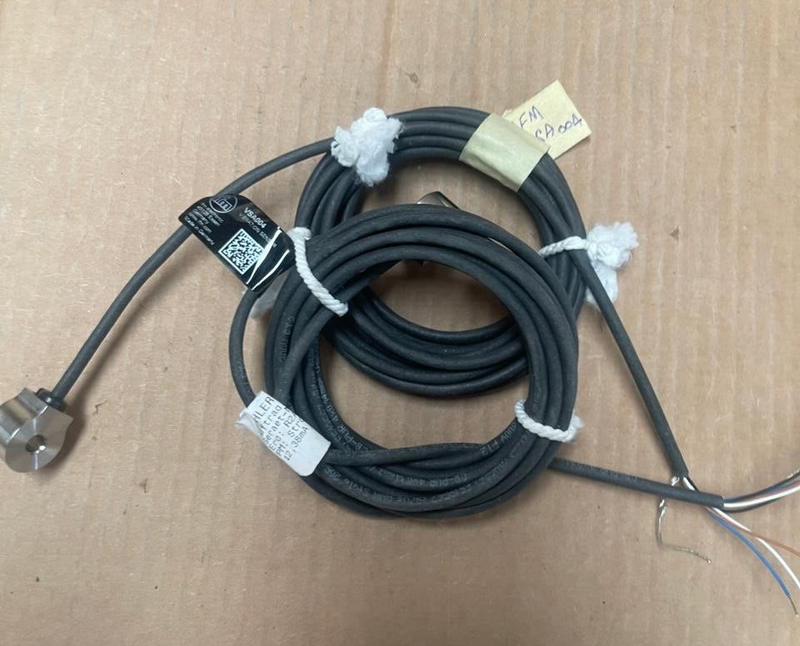

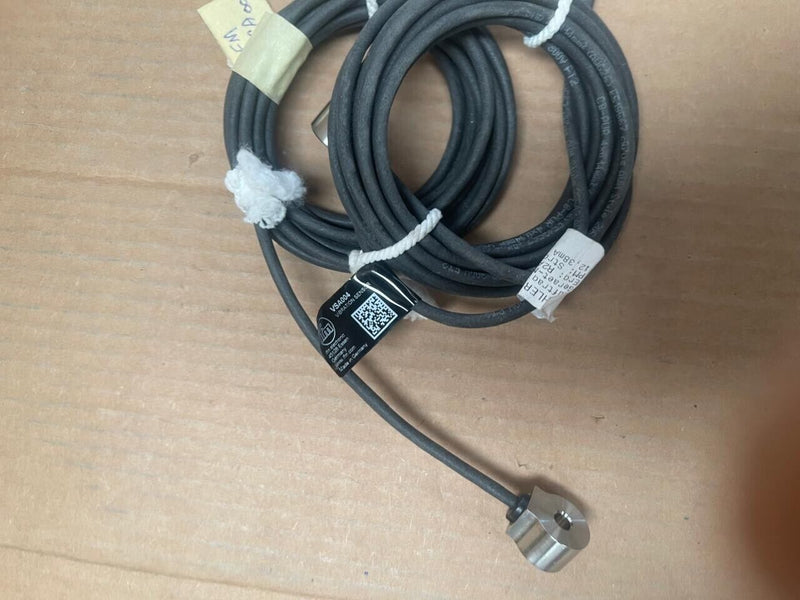

ifm electronic - VSA004 - Accelerometer

The ifm electronic VSA004 is a high-precision accelerometer designed for reliable vibration monitoring in industrial equipment and machinery. It is engineered to connect seamlessly with diagnostic modules, providing accurate vibration detection to facilitate predictive maintenance and enhance operational efficiency.

Key Features:

• Measurement Range: Capable of measuring vibrations within a range of -25 to 25 g, covering a broad spectrum of industrial applications.

• Frequency Range: Operates effectively across frequencies from 1 Hz to 10,000 Hz, ensuring comprehensive monitoring capabilities.

• Capacitive Sensing Principle: Utilizes a capacitive measuring principle for precise and reliable vibration detection.

• Robust Construction: Housed in durable stainless steel (316L) with an IP67 protection rating, making it suitable for harsh industrial environments.

• Analog Output: Provides a 0 to 10 mA analog current output, facilitating easy integration with various diagnostic systems.

Applications:

• Monitoring of rotating machinery such as motors, pumps, and compressors.

• Early detection of mechanical imbalances, misalignments, or bearing failures.

• Integration into predictive maintenance programs to prevent unplanned downtime.

Technical Specifications:

• Measuring Range: -25 to 25 g

• Frequency Range: 1 Hz to 10,000 Hz

• Operating Voltage: 7.2 to 10.8 V DC

• Current Consumption: Less than 15 mA

• Output: Analog current output (0 to 10 mA)

• Housing Material: Stainless steel (316L)

• Protection Rating: IP67

• Operating Temperature: -20°C to +80°C

• Dimensions: Refer to the datasheet for detailed dimensions.

• Weight: Approximately 120.5 g
