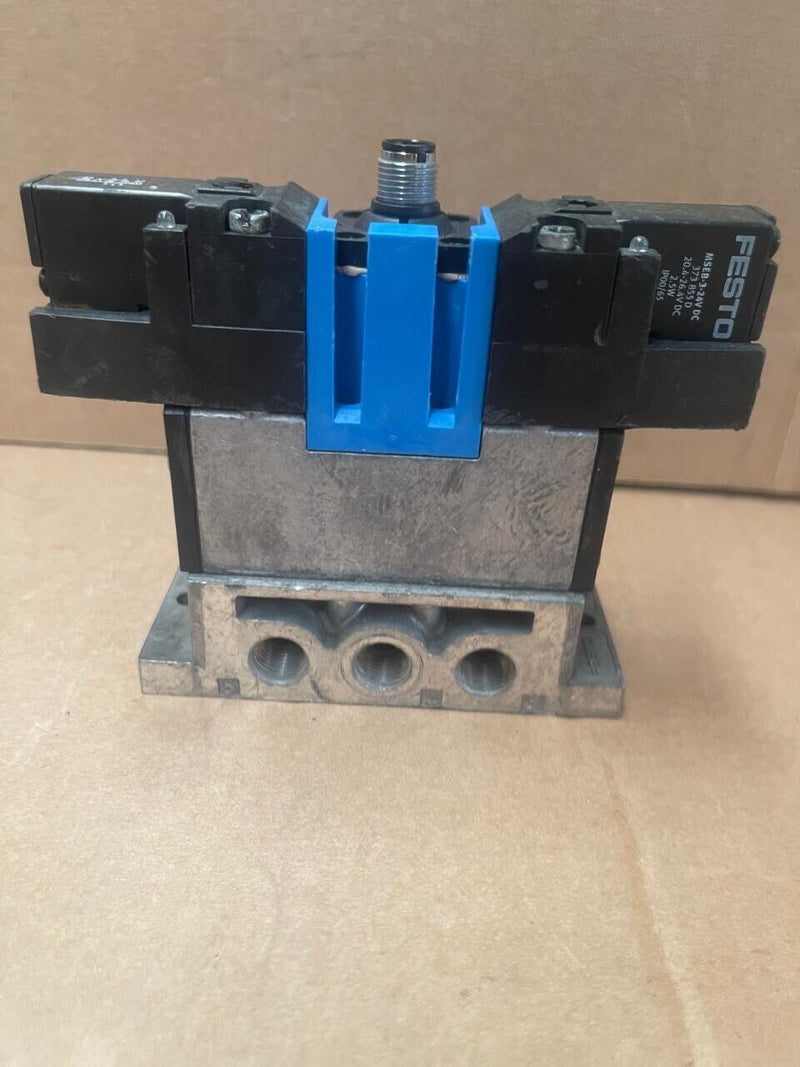

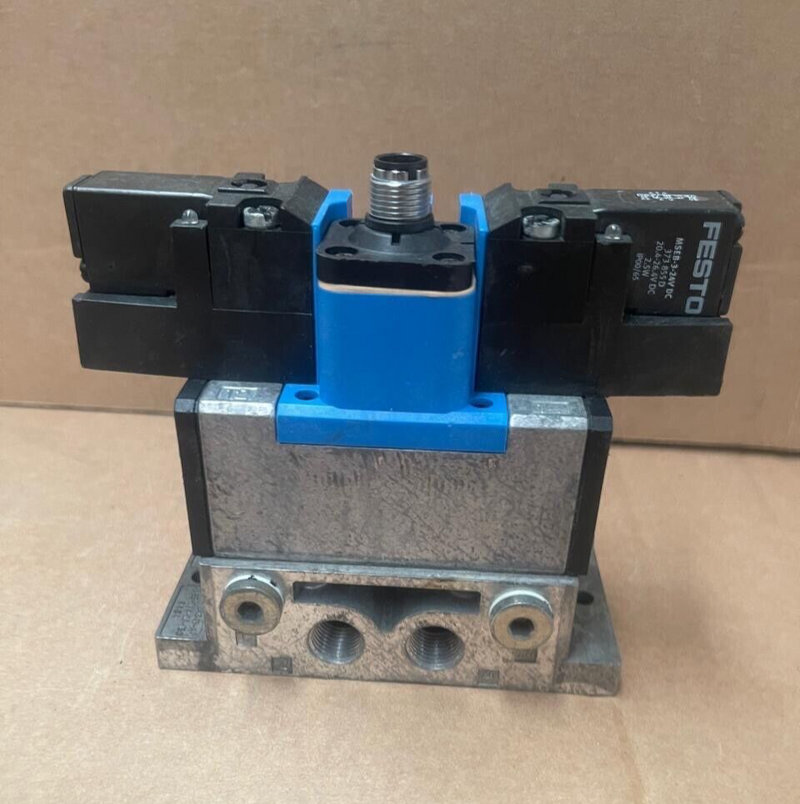

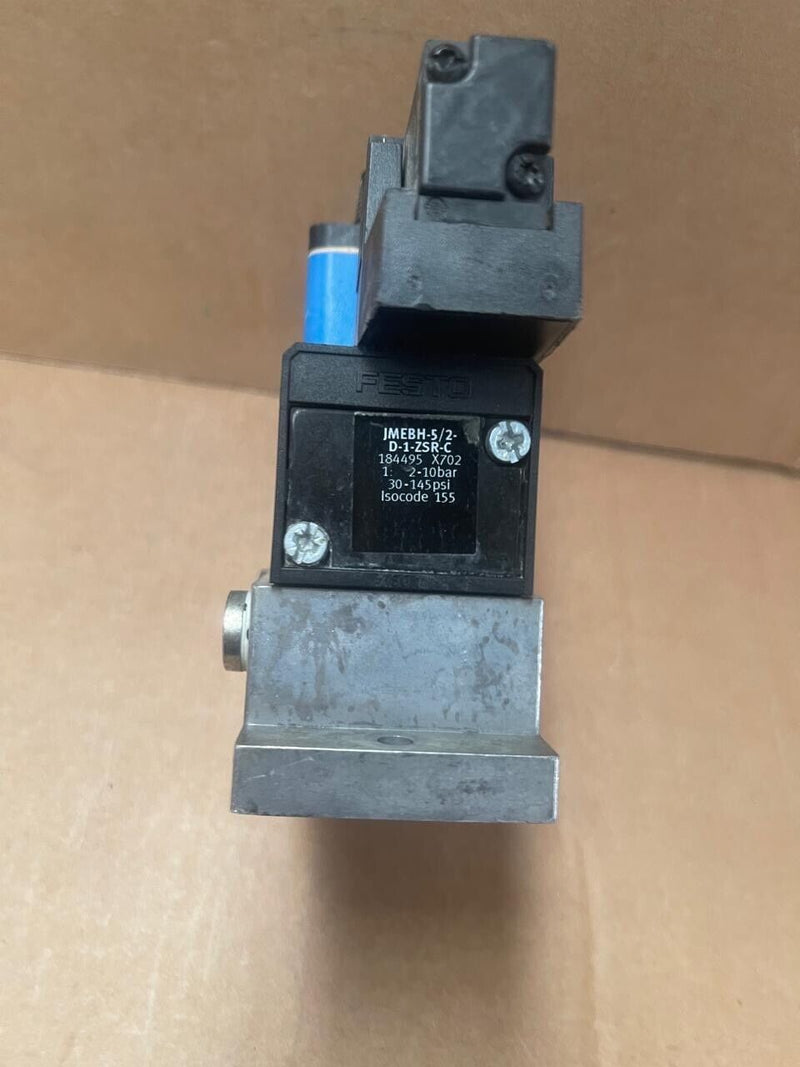

Festo - JMEBH-5/2-D-1-ZSR-C - 5/2-Way Double Solenoid Pneumatic Valve

The Festo JMEBH-5/2-D-1-ZSR-C is a 5/2-way double solenoid pneumatic valve designed for precise control of airflow in industrial automation systems. Compliant with ISO 5599-1 standards, this valve ensures compatibility and reliability across various applications.

Key Features:

• Valve Function: 5/2-way, double solenoid, providing two stable positions for directional control.

• Actuation Type: Electrical, enabling integration into automated systems.

• Standard Nominal Flow Rate: 1,200 l/min, ensuring efficient airflow for rapid actuator response.

• Operating Pressure Range: Suitable for a wide range of pneumatic applications.

• Construction: Piston spool design with soft sealing principle, ensuring reliable operation and longevity.

• Mounting Position: Flexible installation in any orientation.

• Manual Override: Detenting, allowing for manual operation during setup or maintenance.

Technical Specifications:

• ISO Size: 1

• Nominal Size: 8 mm

• Flow Rate: 1,200 l/min

• Actuation Type: Electrical

• Pilot Air Supply: Internal or external

• Operating Voltage: 24 V DC

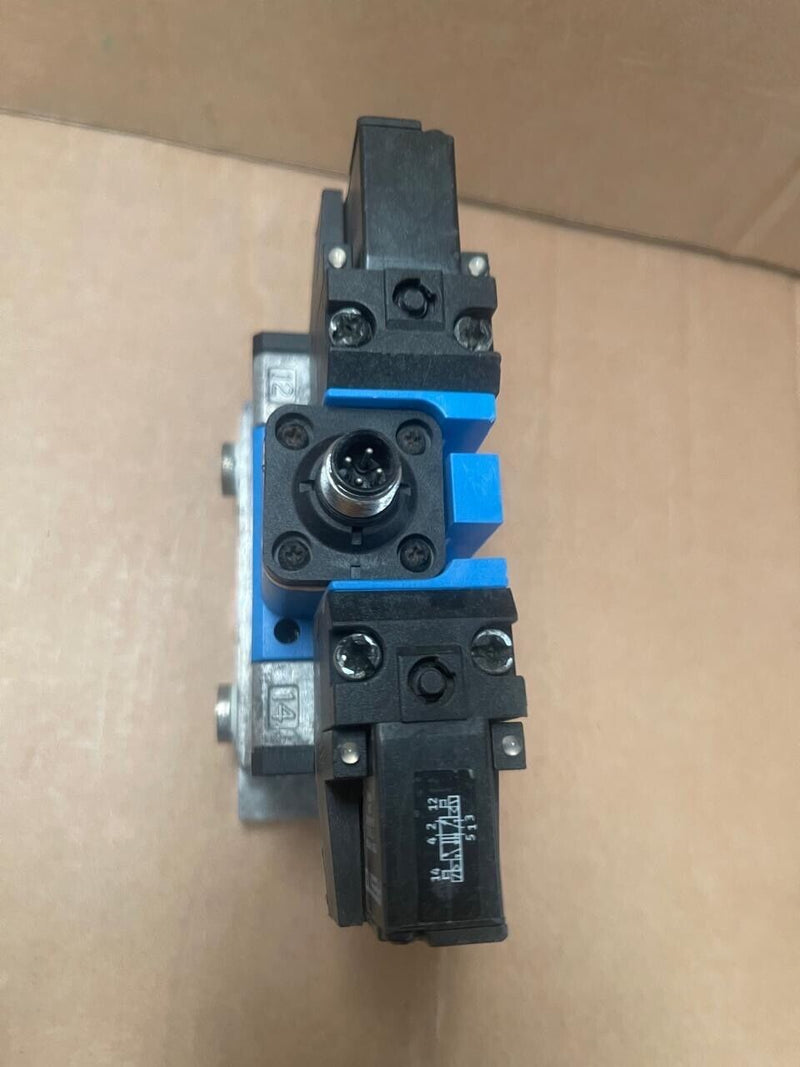

• Electrical Connection: Central plug, round design, M12x1

• Protection Class: IP65

• Materials:

• Housing: Die-cast aluminum, polyacetate

• Seals: Nitrile rubber
