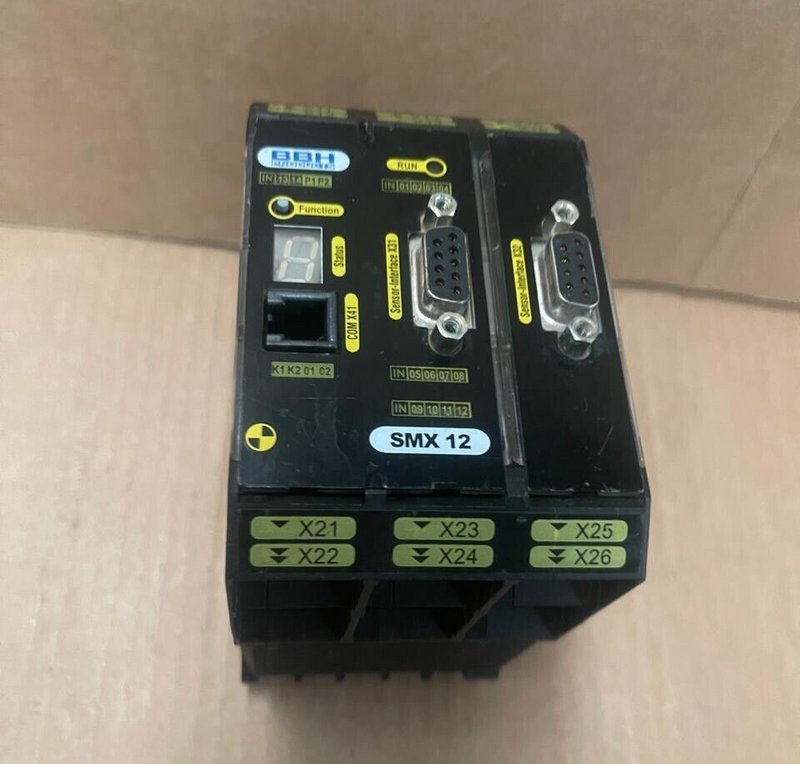

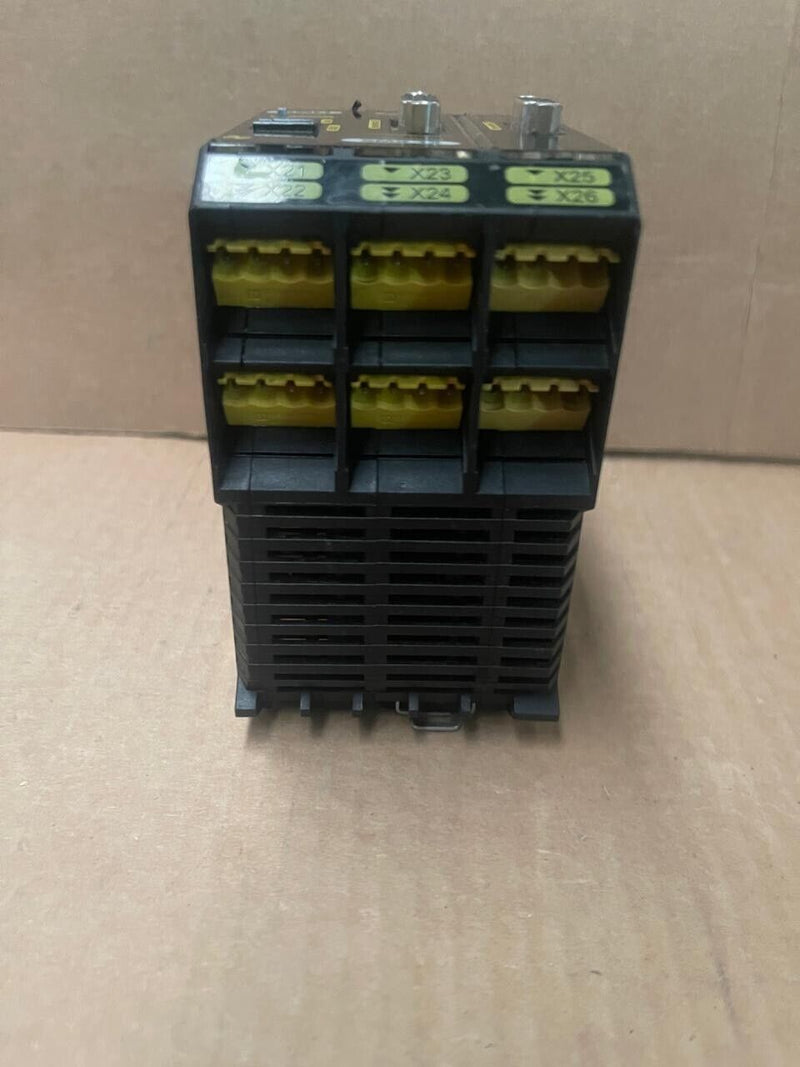

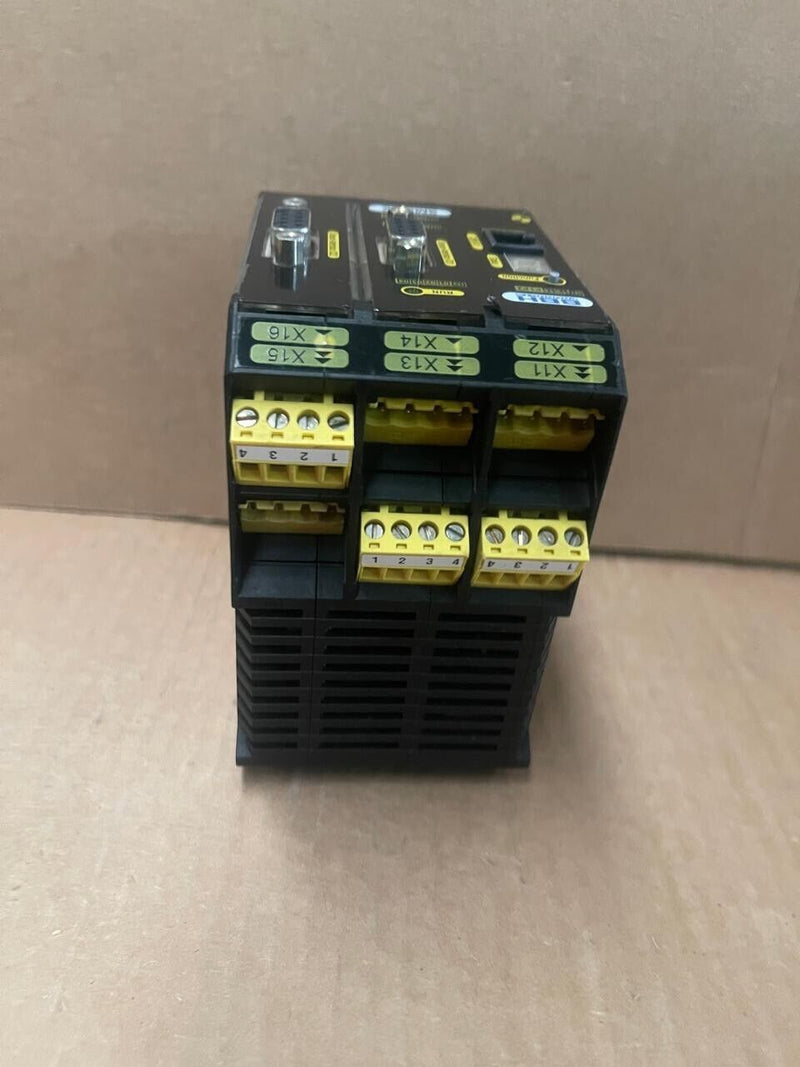

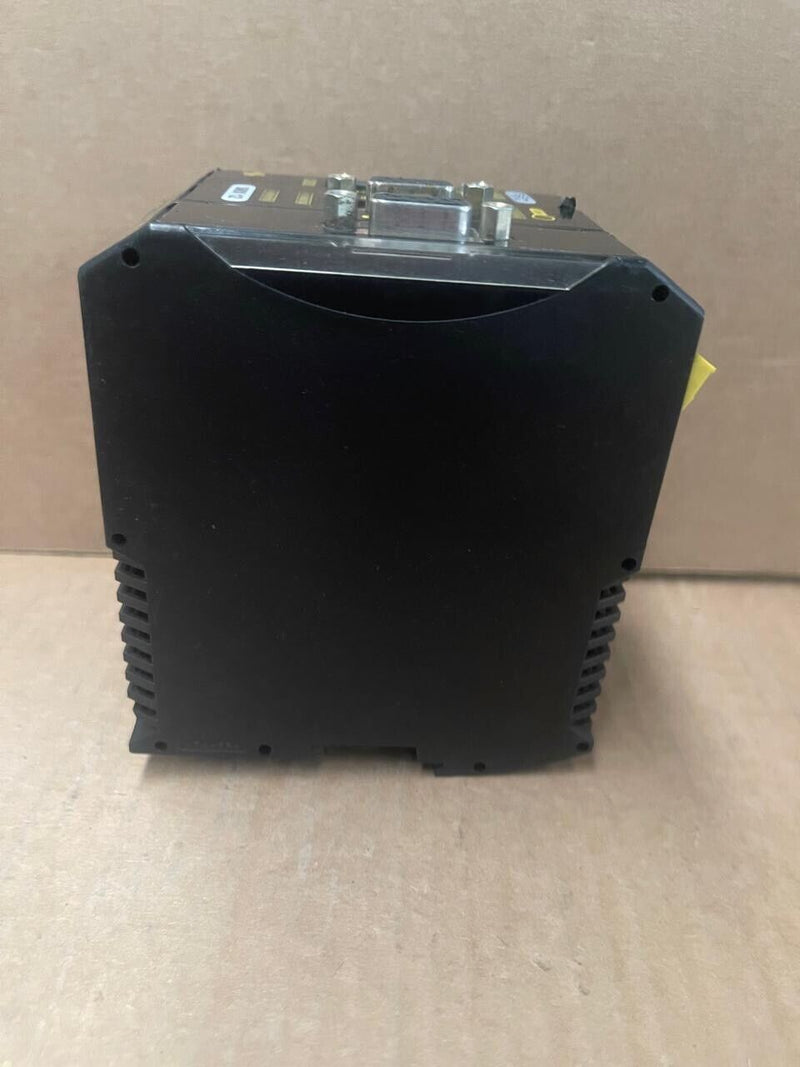

BBH - SMX12-A - Compact Safety Controller with Safe Motion and Analog Processing

The BBH SMX12-A is a compact safety controller designed for industrial automation applications requiring high safety standards and precise motion control. Key features include:

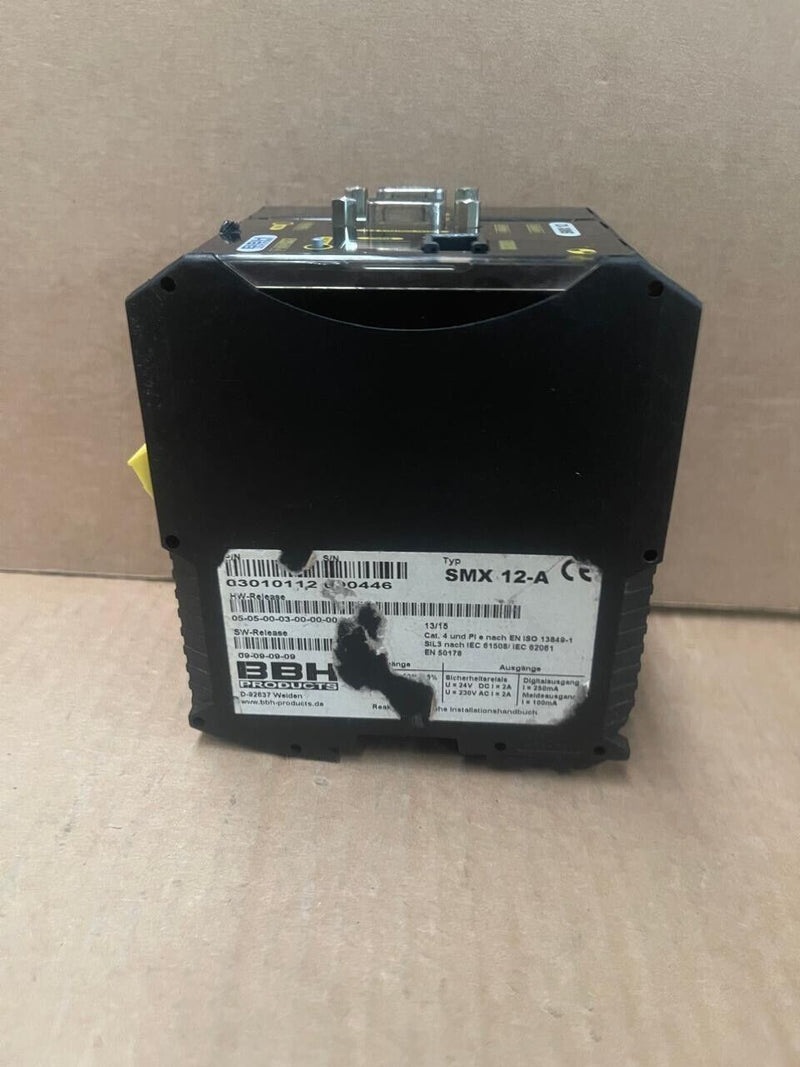

• Safety Compliance: Achieves Performance Level e (PL e) according to EN ISO 13849-1 and Safety Integrity Level 3 (SIL 3) per IEC 61508, ensuring adherence to stringent safety requirements.

• Safe Digital Inputs: 14 inputs for monitoring safety-related signals, with 8 inputs designed for OSSD (Output Signal Switching Device) signals, enhancing compatibility with various safety devices.

• Safe Digital Outputs: 2 high-side/low-side configurable outputs for controlling safety-critical actuators, providing flexibility in output configurations.

• Safe Analog Inputs: 2 safe analog inputs for processing safety-relevant analog signals, enabling integration with a variety of sensors.

• Relay Outputs: 2 monitored relay outputs for safety-related functions, ensuring reliable operation of connected devices.

• Pulse Outputs: 2 pulse outputs for cross-circuit detection of digital input signals, enhancing diagnostic capabilities.

• Axis Monitoring: Supports monitoring of up to 2 axes with 2 encoder interfaces per axis, compatible with various encoder types including incremental, Sin/Cos, SSI absolute encoders, and resolvers, facilitating comprehensive motion control.

• Communication Interfaces: Optional integrated communication interfaces for standard and safe fieldbus protocols, enabling seamless integration into diverse industrial networks.

• Expansion Capability: Supports up to 2 expansion modules, allowing scalability to accommodate additional I/O requirements.

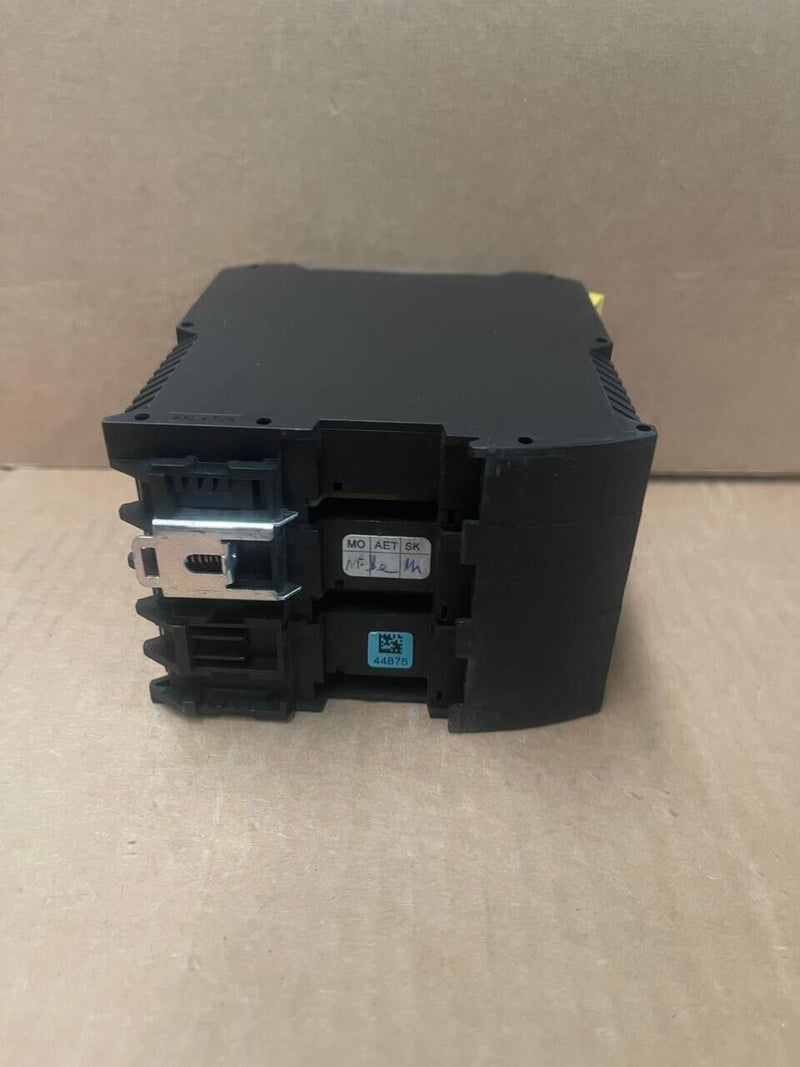

• Mounting: Designed for DIN rail mounting, facilitating easy installation in control cabinets.

• Operating Conditions:

• Temperature Range: 0°C to +50°C, suitable for standard industrial environments.

• Protection Class: IP20, providing basic protection against solid objects.
