Weidmüller - 1241400000 - IE-MC-VL-1TX-1SC Media Converter

The Weidmüller IE-MC-VL-1TX-1SC is a ValueLine series Fast Ethernet media converter designed to facilitate seamless integration between copper and fiber optic networks. Key features include:

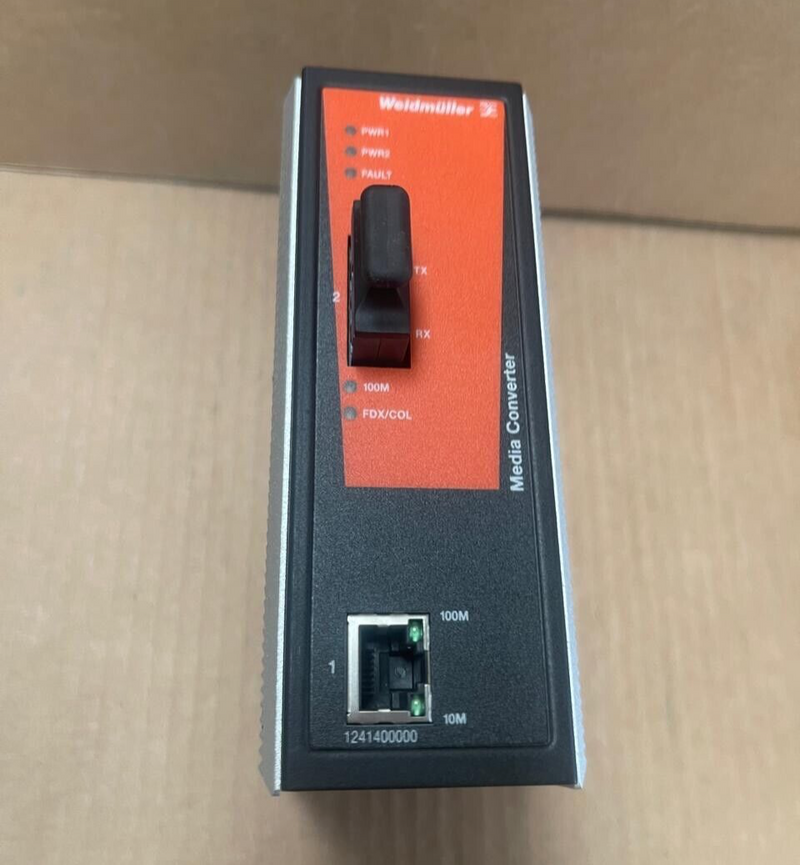

• Ports:

• 1 x RJ45 port for 10/100Base-T(X) connections

• 1 x SC multi-mode fiber port for 100Base-FX connections

• Transmission Distance:

• Supports fiber optic transmissions up to 5 km, suitable for medium-range networking applications.

• Operating Temperature:

• Designed to operate within a temperature range of 0°C to 60°C, accommodating typical industrial environments.

• Protection Rating:

• IP30-rated housing, providing protection against solid objects larger than 2.5 mm, ensuring durability in industrial settings.

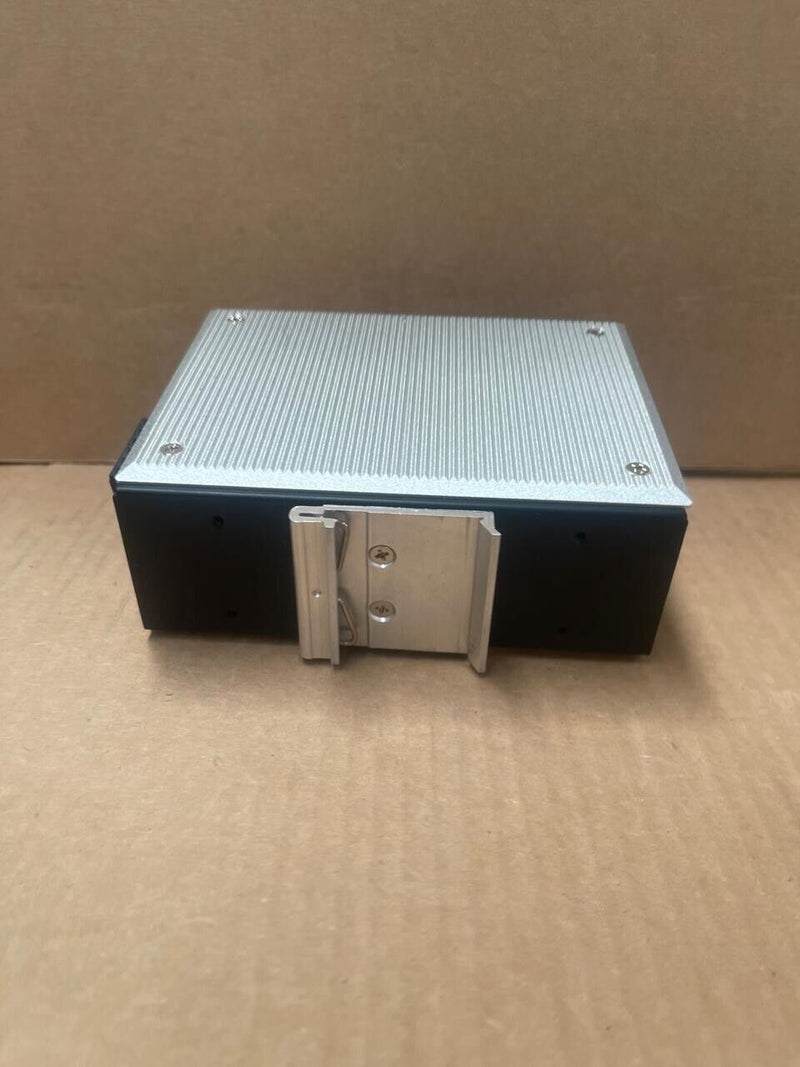

• Mounting:

• DIN rail mountable, facilitating easy integration into existing industrial setups.

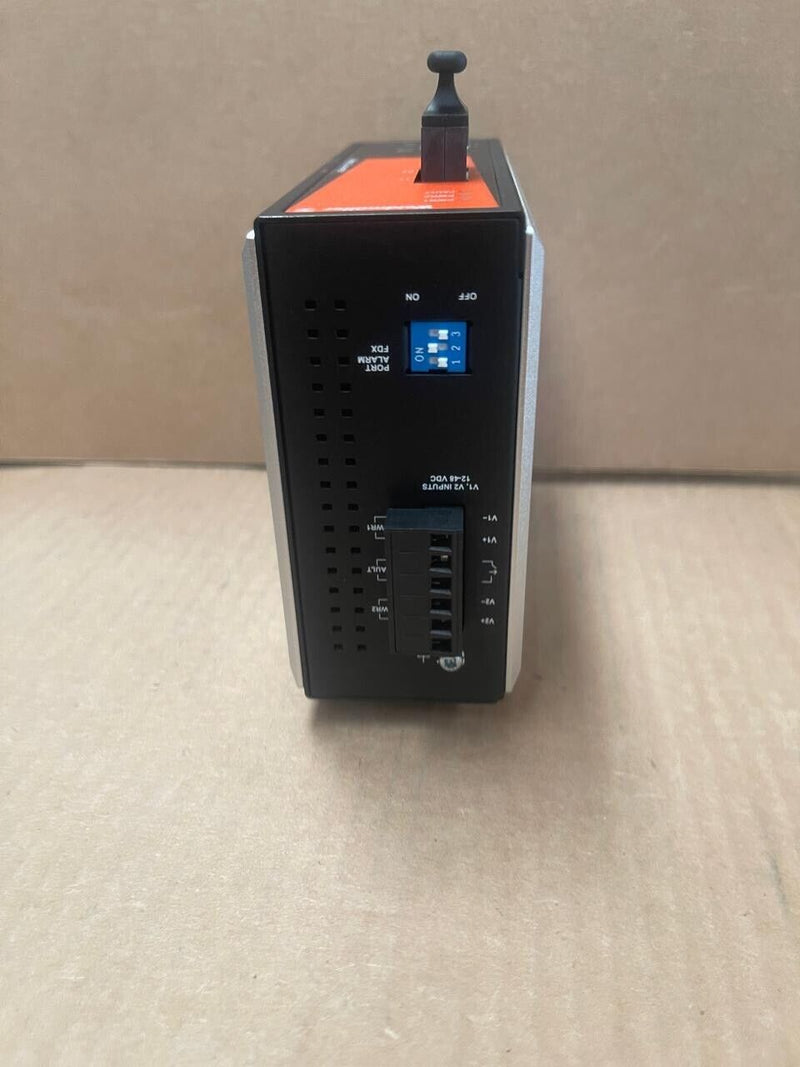

• Power Supply:

• Accepts a wide input voltage range from 12 to 48 V DC, offering flexibility in power sourcing.

• Features:

• Link Fault Pass-Through (LFPT) functionality, enhancing network reliability by monitoring and indicating link status.

• Auto-negotiation and auto-MDI/MDI-X support on the RJ45 port, simplifying network setup and ensuring compatibility with various devices.
