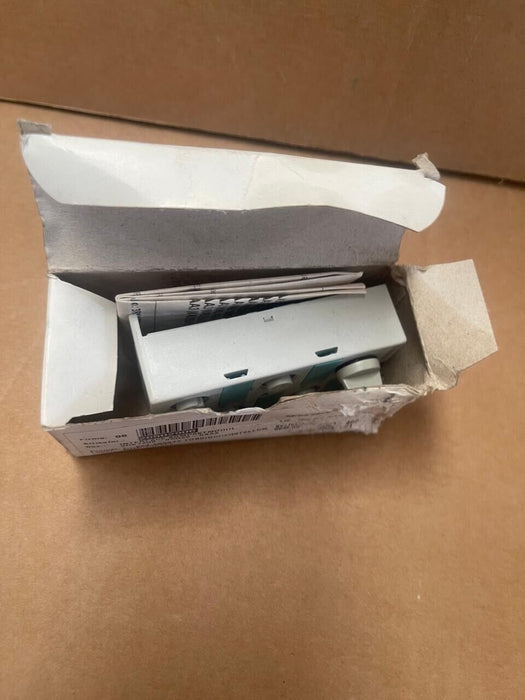

Siemens - 3RK1200-0CQ20-0AA3 - AS-i Compact Module K45 Digital 4 DI

The Siemens 3RK1200-0CQ20-0AA3 is an AS-Interface (AS-i) compact module from the K45 series, designed to facilitate the integration of digital input devices into AS-i networks. This module features four digital inputs, each capable of handling up to 200 mA, and is equipped with four M12 sockets for straightforward connectivity. Its IP67-rated housing ensures robust performance in demanding industrial environments. Please note that the mounting plate (part numbers 3RK1901-2EA00 or 3RK1901-2DA00) must be ordered separately to complete the installation.

Key Features:

• Four Digital Inputs: Accommodates up to four digital input devices, each with a maximum current capacity of 200 mA.

• M12 Connectivity: Equipped with four M12 sockets, facilitating secure and efficient connections.

• Compact Design: The K45 compact form factor allows for space-saving installation in various industrial settings.

• High Protection Rating: Boasts an IP67 rating, ensuring resistance to dust and water ingress, suitable for harsh industrial environments.

Technical Specifications:

• Model Number: 3RK1200-0CQ20-0AA3

• Number of Inputs: 4 digital inputs

• Input Current Capacity: Maximum 200 mA per input

• Connectors: 4 × M12 sockets

• Protection Rating: IP67

• Mounting Plate: Required; must be ordered separately (part numbers 3RK1901-2EA00 or 3RK1901-2DA00)

• Dimensions: 50 mm × 108 mm × 45 mm

• Net Weight: Approximately 0.088 kg

Applications:

• Industrial Automation: Ideal for integrating multiple digital input devices into AS-i networks within automated manufacturing systems.

• Process Control: Suitable for monitoring and controlling various digital signals in process industries.

• Machine Building: Enhances connectivity and control in complex machinery requiring multiple digital inputs.
