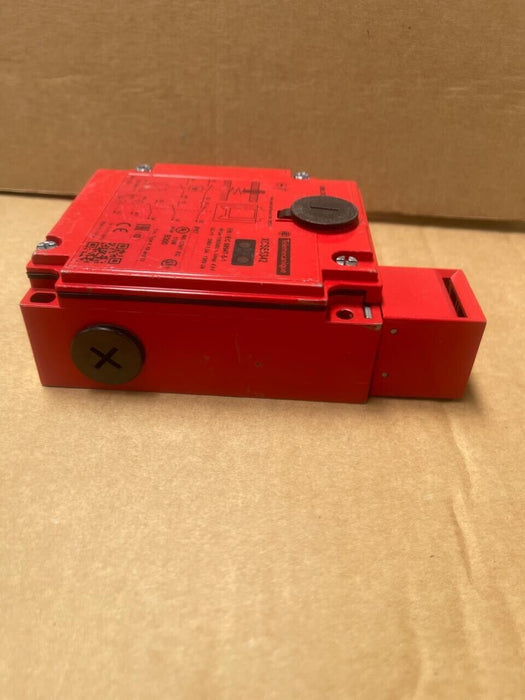

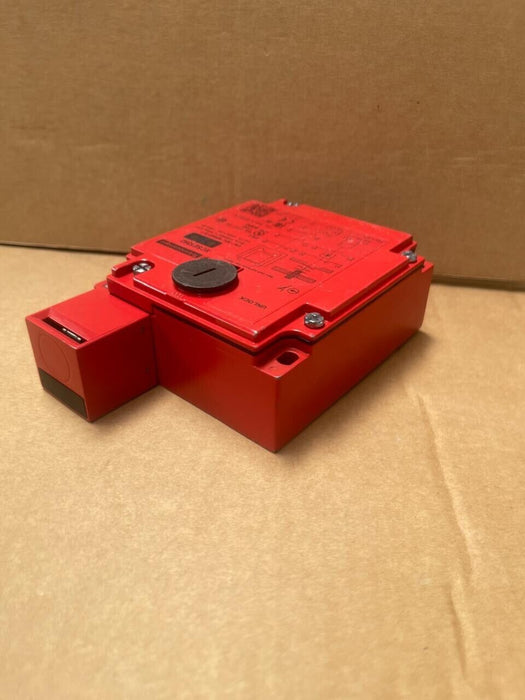

Schneider Electric - XCSE5342 - Metal Safety Switch

The Schneider Electric XCSE5342 is a metal safety switch from the Preventa XCS range, designed to enhance safety in industrial applications. It features a key-operated turret head and provides interlocking with solenoid, ensuring that the safety function is maintained until the hazardous area is safe. The switch operates with a slow-break contact mechanism and includes two M20 cable entries for flexible installation.

Key Features:

• Contact Configuration: 1 NC + 2 NO slow-break contacts

• Solenoid Interlocking: Locks on de-energization and unlocks on energization, enhancing safety protocols

• Robust Construction: Metal housing (Zamak) ensures durability in demanding industrial environments

• LED Indicators: Two LEDs (green and orange) provide clear status indication of guard position and locking state

• Cable Entries: Two M20 x 1.5 entries accommodate cables with diameters ranging from 7 to 13 mm

Technical Specifications:

• Rated Supply Voltage: 220/240 V AC (-20% to +10%)

• Power Consumption: 10 VA (inrush and sealed)

• Rated Operational Current: 3 A at 120 V AC (AC-15, B300); 1.5 A at 240 V AC (AC-15, B300); 0.55 A at 125 V DC (DC-13, Q300); 0.27 A at 250 V DC (DC-13, Q300)

• Mechanical Durability: ≥ 1,000,000 cycles

• Protection Rating: IP67 according to EN/IEC 60529 and EN/IEC 60947-5-1

• Ambient Operating Temperature: -25 °C to +40 °C

• Dimensions: Width: 98 mm; Height: 146 mm; Depth: 44 mm

• Weight: Approximately 1.14 kg

Applications:

• Industrial Safety Systems: Ideal for ensuring safety in machinery and equipment by preventing access to hazardous areas until conditions are safe

• Manufacturing Facilities: Suitable for use in automated production lines where safety interlocking is critical

• Process Industries: Applicable in environments requiring reliable safety mechanisms to protect personnel and equipment
