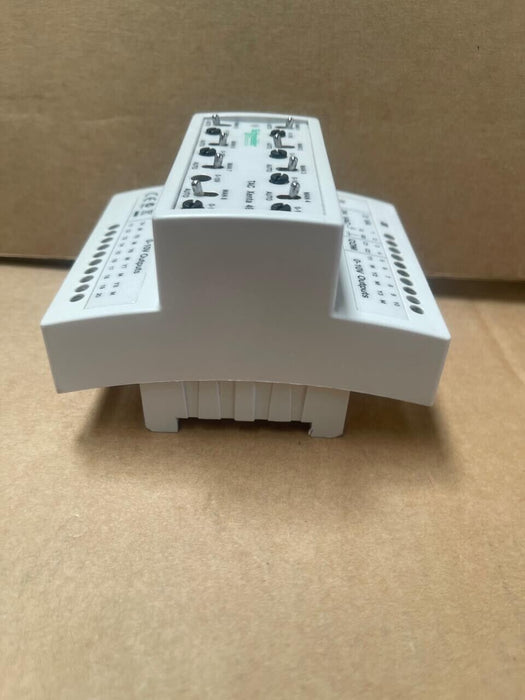

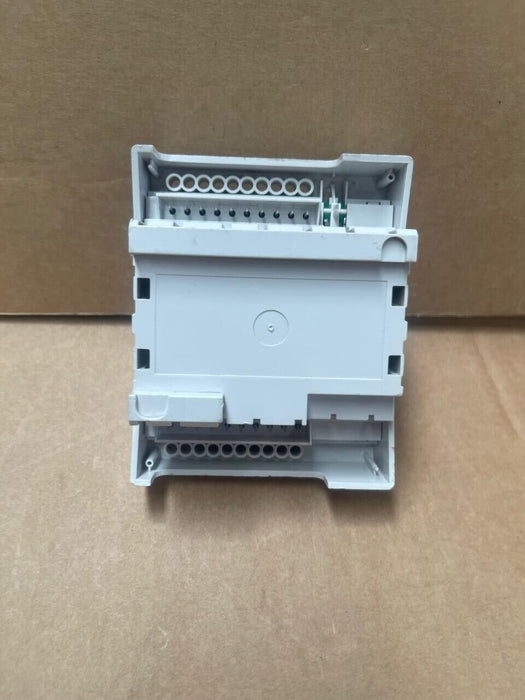

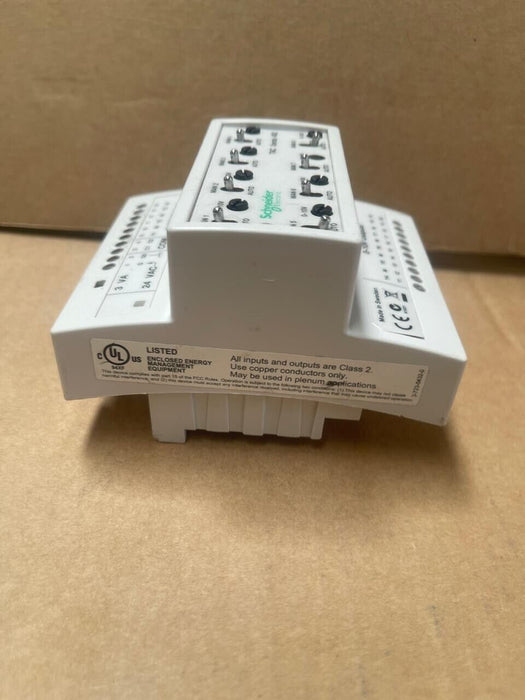

Schneider Electric – TAC Xenta 492 – Analog Output Module

The TAC Xenta 492 is an analog output module within Schneider Electric’s TAC Xenta family, designed to expand the capabilities of TAC Xenta controllers. This module offers eight analog outputs, each providing a control voltage range of 0 to 10 V DC, suitable for precise control of actuators and other analog devices in building automation systems. A distinctive feature of the TAC Xenta 492 is its manual override functionality, allowing operators to manually set output values during commissioning or maintenance, ensuring flexibility and control over connected devices. The module seamlessly integrates into existing TAC Xenta networks via the LonWorks® TP/FT-10 communication protocol, facilitating efficient data exchange and system scalability.

Key Features:

• Eight Analog Outputs: Delivers 0 to 10 V DC control signals for accurate device management.

• Manual Override: Enables manual control of outputs for testing and maintenance purposes.

• LonWorks® Communication: Ensures reliable integration with TAC Xenta controllers over the TP/FT-10 network.

• Compact DIN Rail Mounting: Designed for easy installation and space efficiency in control panels.

• LED Indicators: Provides visual status of module operation and network communication.

Technical Specifications:

• Model Number: TAC Xenta 492

• Analog Outputs: 8 channels

• Output Voltage Range: 0 to 10 V DC

• Output Current: Maximum 2 mA per channel, short-circuit proof

• Manual Override: Individual switches for each output with MAN and AUTO positions

• Power Supply: 24 V AC ±20%, 50/60 Hz or 19–40 V DC

• Power Consumption: Maximum 2 W

• Communication Protocol: LonWorks® TP/FT-10, 78 kbps

• Mounting: 35 mm DIN rail (EN 50022)

• Dimensions: [Information not specified]

• Operating Temperature: 0 to 50 °C (32 to 122 °F)

• Storage Temperature: -20 to 50 °C (-4 to 122 °F)

• Humidity: Maximum 90% RH non-condensing

• Enclosure Material: ABS/PC

• Protection Class: IP20

• Compliance: CE, UL 916, ETL listing to UL 3111-1 and CAN/CSA C22.2 No. 1010.1-92

Applications:

• Building Automation: Controls HVAC systems, lighting, and other building management devices.

• Industrial Automation: Manages analog actuators and sensors in various industrial processes.

• Energy Management: Integrates with systems monitoring and controlling energy usage for optimization.
