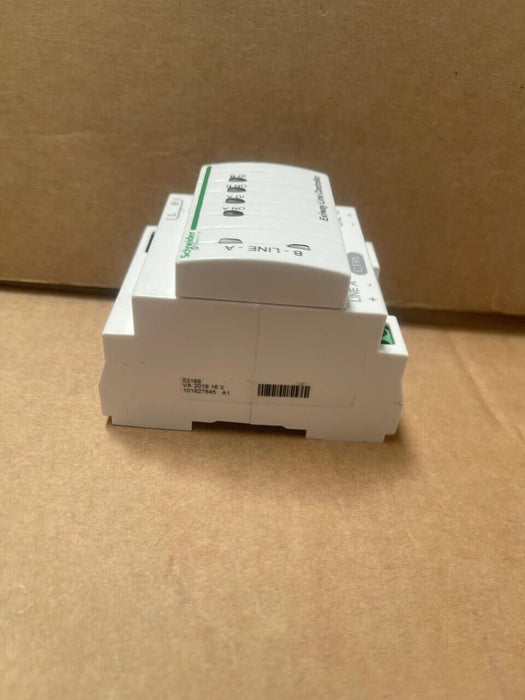

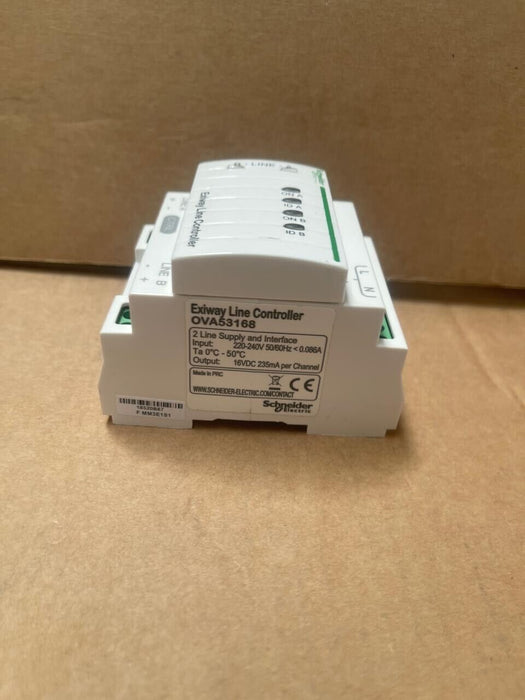

Schneider Electric - OVA53168 - Exiway Dicube Line Controller
The Schneider Electric OVA53168 is an Exiway Dicube Line Controller designed to manage up to 128 DALI-compatible emergency lighting devices. This DIN rail-mounted module operates on a 220–240 V AC power supply and features two control lines, each capable of handling 64 devices. It provides comprehensive monitoring and control of emergency lighting systems, ensuring compliance with safety standards and facilitating efficient maintenance. The controller includes LED indicators for status monitoring and supports seamless integration with Exiway Dicube Smartcontrol units.
Key Features:
• DALI Communication Protocol: Ensures reliable communication with up to 128 emergency lighting devices.
• Dual Control Lines: Manages two lines, each supporting 64 devices, for flexible system configuration.

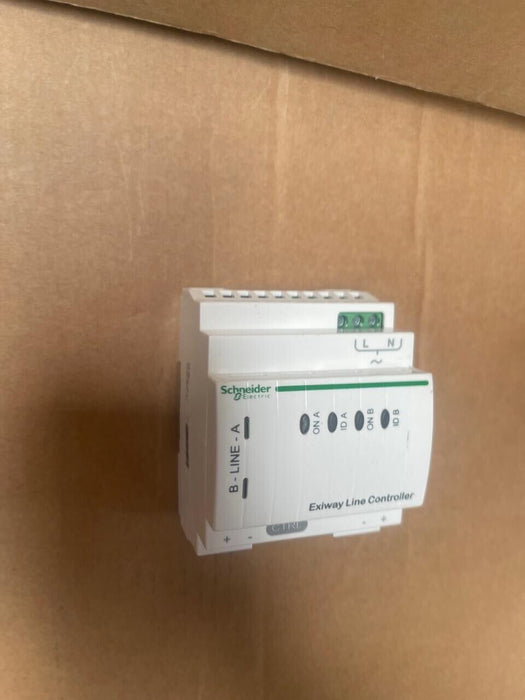

• LED Status Indicators: Provides visual feedback for operational status and fault conditions.
• DIN Rail Mounting: Facilitates easy installation within electrical enclosures.
• Integration Capability: Seamlessly integrates with Exiway Dicube Smartcontrol units for centralized management.
Technical Specifications:
• Model Number: OVA53168
• Operational Voltage: 220–240 V AC, 50/60 Hz
• Current Consumption: Maximum 86 mA
• Output Voltage: 16 V, 5–235 mA for line control connection to luminaires
• Number of Controlled Lines: 2
• Devices per Line: 64

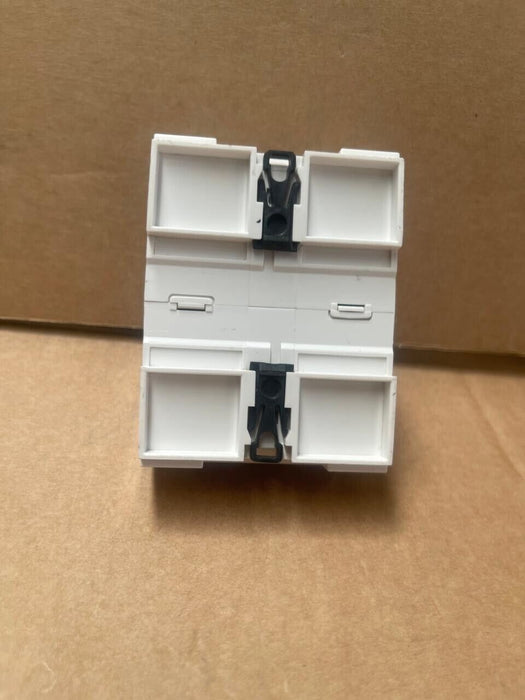

• Mounting: DIN rail
• Dimensions (H x W x D): 92 mm x 72 mm x 63 mm
• Protection Class: II
• IP Rating: IP20
• Operating Temperature Range: 0 to 50 °C
• Standards Compliance: EN 62034, EN 55022, EN 55024, EN 61547, EN 60950
Applications:
• Emergency Lighting Systems: Centralized control and monitoring of DALI-compatible emergency luminaires in commercial and industrial buildings.
• Building Management Systems: Integration into BMS for streamlined emergency lighting management and maintenance.
• Safety Compliance: Ensures adherence to safety standards by providing reliable operation and monitoring of emergency lighting networks.
