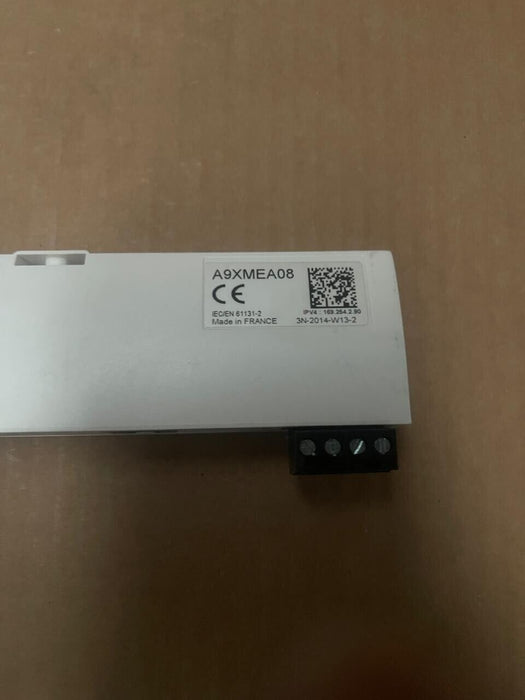

Schneider Electric - A9XMEA08 - Acti9 Smartlink Modbus TCP/IP Communication I/O

The Schneider Electric A9XMEA08, part of the Acti9 range, is a Smartlink communication module designed to enhance the connectivity and monitoring capabilities of electrical distribution systems. Key features include:

• Application Types:

• Load control

• Breaker status monitoring

• Basic energy metering

• Improved load monitoring (Voltage, Current, Power, Power factor)

• Load alarming

• Connectivity:

• Supports up to 7 wired devices

• Provides 7 digital channels

• Includes 1 analog input for additional monitoring capabilities

• Compatible with PowerTag wireless energy sensors

• Communication Services:

• Ethernet Modbus TCP/IP server

• Embedded web server for easy configuration and monitoring

• Integration with Building Management Systems (BMS) controllers

• Electrical Specifications:

• Rated supply voltage: 24 V DC ±20%

• Maximum supply current: 1.5 A

• Protection Features:

• Short-circuit protection for analog inputs

• Reverse polarity protection for auxiliary supply and inputs

• Overvoltage protection at 33 V DC for digital outputs

• Mounting and Design:

• DIN rail mountable in both horizontal and vertical positions

• Front-facing connections for easy wiring

• White housing (RAL 9003)

• Local Signaling:

• Communication status indicated by a yellow LED

• Network status indicated by a tri-color LED (green, orange, red)

• Link/Activity status for Ethernet indicated by green and yellow LEDs

• Operational status indicated by a tri-color LED (green, orange, red)
