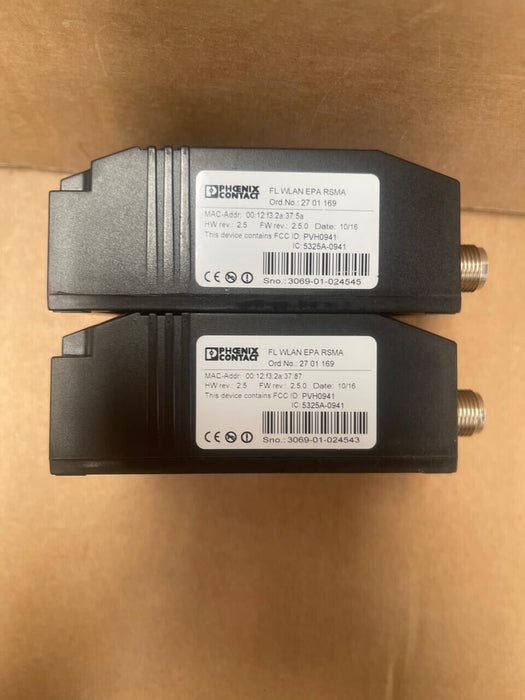

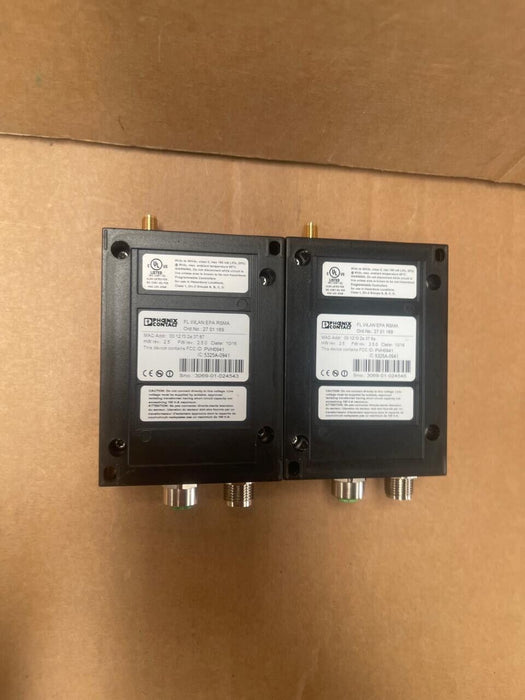

Phoenix Contact - FL WLAN EPA RSMA (2701169) - Wireless Ethernet Port Adapter

The Phoenix Contact FL WLAN EPA RSMA (part number 2701169) is a robust wireless Ethernet port adapter designed to connect Ethernet-enabled devices to a WLAN access point. Featuring an external RSMA antenna connection, this adapter supports both 2.4 GHz and 5 GHz frequency bands, ensuring flexible and reliable wireless communication in industrial environments.

Key Features:

• Dual-Band Support: Operates on both 2.4 GHz and 5 GHz frequency bands, providing flexibility in wireless networking.

• High Security: Complies with IEEE 802.11i standards, offering maximum security with AES encryption.

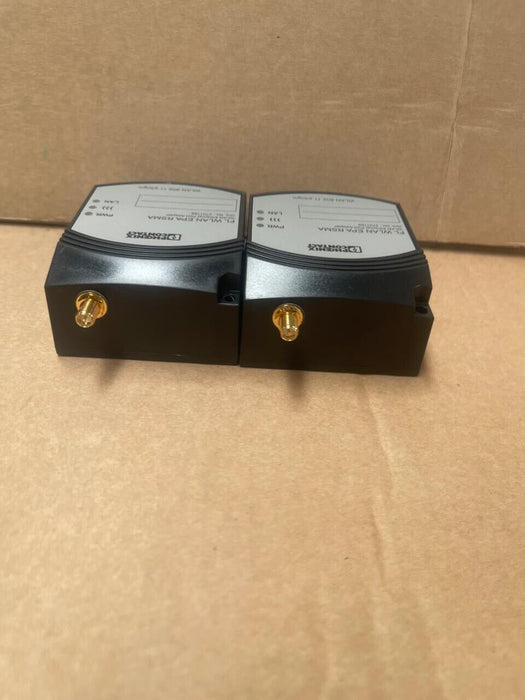

• External Antenna Connection: Equipped with an external RSMA antenna connection, allowing for customized antenna setups to optimize signal strength and coverage.

• Rugged Design: Boasts an IP65 protection rating, making it suitable for harsh industrial environments.

• Flexible Configuration: Supports various configuration methods, including a MODE button, web interface, AT commands (TCP/IP), and SSC.

Technical Specifications:

• Product Type: Wireless module

• Wireless Standards Supported: IEEE 802.11 a/b/g/n

• Frequency Range: 2.402 GHz to 5.25 GHz (ISM bandwidth)

• Transmission Power: Up to 20 dBm

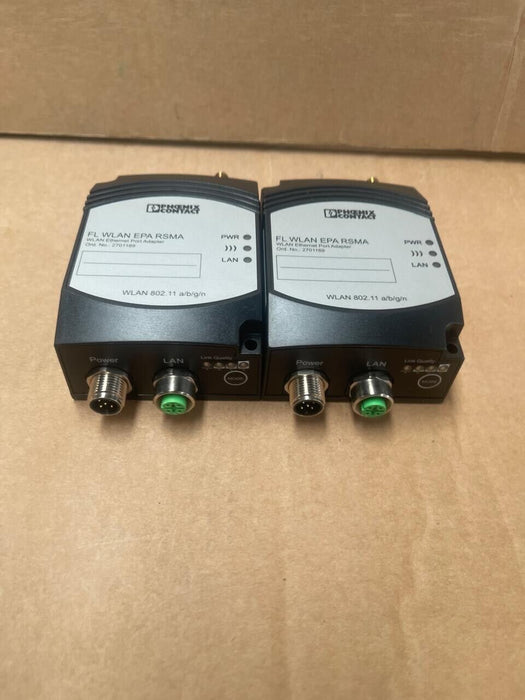

• Ethernet Interface: 1 M12 connector (D-coded, female)

• Antenna Connection: RSMA (male) with a gain of 3 dBi for both 2.4 GHz and 5 GHz

• Supply Voltage: 9 V DC to 30 V DC

• Current Consumption: Approximately 76 mA at 24 V DC

• Dimensions: 66 mm (W) x 91 mm (H) x 34 mm (D) (excluding M12 connections)

• Operating Temperature: -40 °C to 65 °C

• Degree of Protection: IP65
