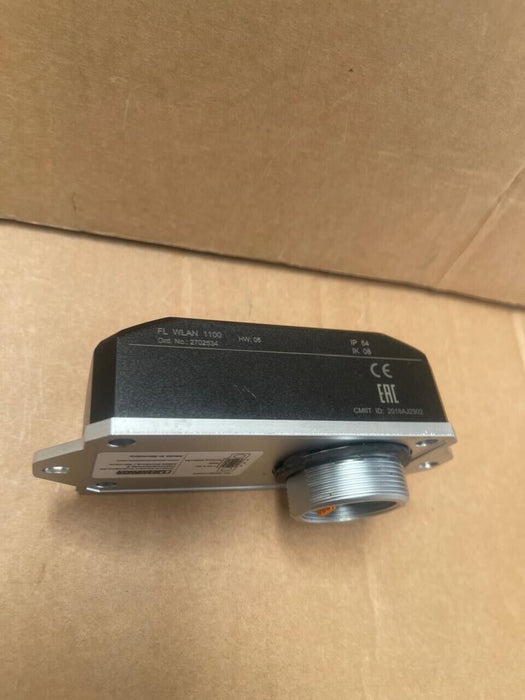

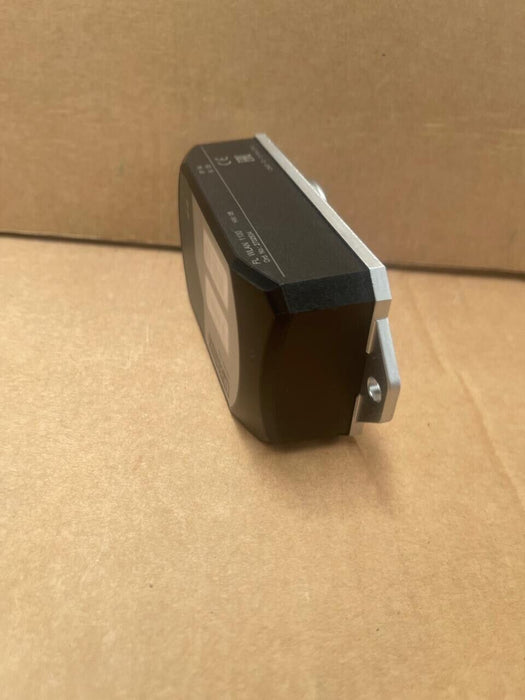

Phoenix Contact - FL WLAN 1100 (2702534) - Industrial Wireless LAN Module

The Phoenix Contact FL WLAN 1100 (part number 2702534) is a robust industrial wireless LAN (WLAN) module designed to provide reliable wireless connectivity in industrial environments. Combining an access point and client functionality with two internal MIMO antennas, this module supports IEEE 802.11 a/b/g/n standards, operating in both 2.4 GHz and 5 GHz frequency bands. Its single-hole mounting design and IP54 rating make it ideal for seamless integration into various industrial applications.

Key Features:

• Integrated Antennas: Features two internal MIMO antennas, eliminating the need for external antenna installations and simplifying deployment.

• Dual-Band Operation: Supports both 2.4 GHz and 5 GHz frequency bands, providing flexibility and reduced interference in wireless communications.

• Versatile Functionality: Operates as an access point, client adapter, or repeater, offering adaptability to various network configurations.

• Secure Communication: Implements advanced security protocols, including 802.11i, WPA2, AES, TKIP, MAC filtering, and 802.1X/RADIUS authentication, ensuring secure data transmission.

• Industrial Durability: With an IP54 protection rating and robust construction, it is suitable for demanding industrial environments.

Technical Specifications:

• Wireless Standards: IEEE 802.11 a/b/g/n

• Frequency Bands: 2.4 GHz and 5 GHz (including DFS channels)

• Data Rates: Up to 300 Mbps

• Transmission Power: Up to 20 dBm (EIRP)

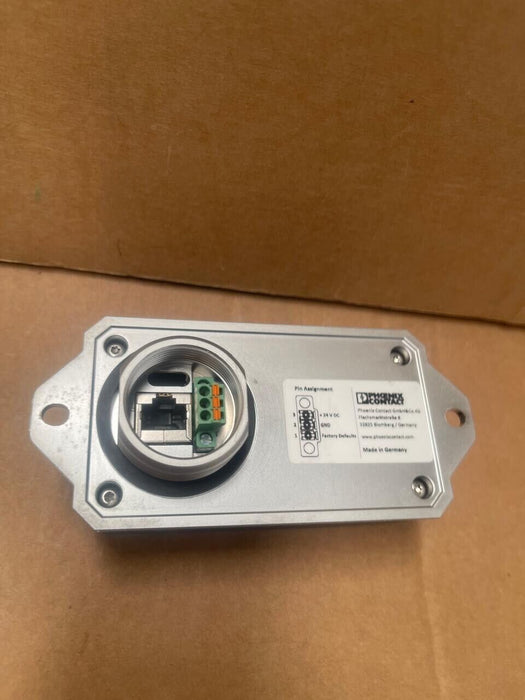

• Ethernet Interface: 1 x RJ45 port supporting 10/100 Mbps with auto-negotiation and auto-crossover

• Power Supply: 9 V DC to 32 V DC (SELV/PELV)

• Power Consumption: Maximum 4.5 W

• Operating Temperature: 0 °C to 60 °C

• Protection Rating: IP54

• Dimensions: Width: 62.8 mm; Height: 36.5 mm; Depth: 113.2 mm
