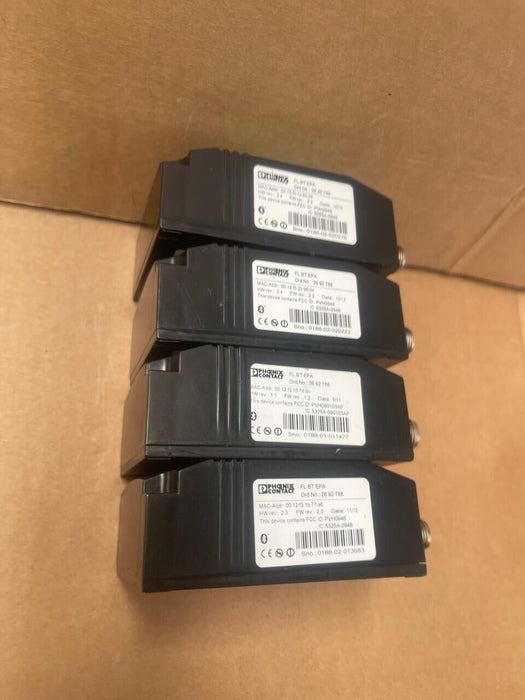

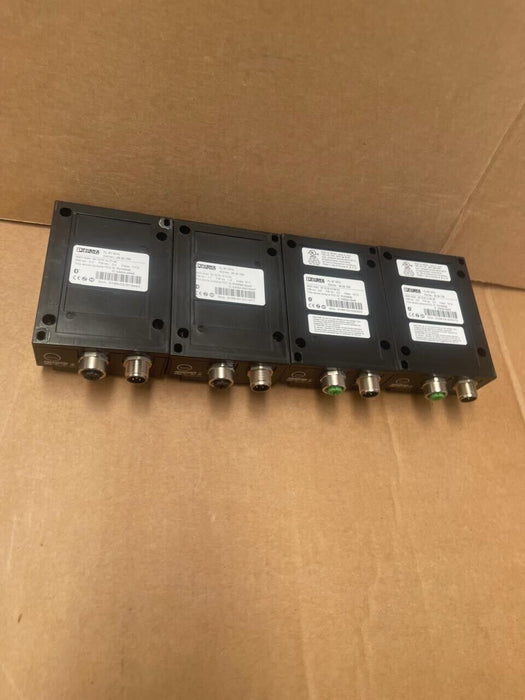

Phoenix Contact - FL BT EPA (2692788) - Factoryline Wireless Bluetooth Ethernet

The Phoenix Contact FL BT EPA (part number 2692788) is a robust wireless Bluetooth Ethernet port adapter designed to integrate mobile or hard-to-reach automation devices or I/O modules into Ethernet automation networks efficiently and cost-effectively. Operating in the 2.4 GHz frequency band, this adapter ensures reliable communication and is equipped with features that allow seamless coexistence with WLAN networks.

Key Features:

• Reliable Wireless Communication: Utilizes Bluetooth 2.1 + EDR standard, providing stable and secure data transmission in industrial environments.

• WLAN Coexistence: Incorporates features like Adaptive Frequency Hopping (AFH), Low Emission Mode (LEM), and black channel listing to minimize interference and ensure harmonious operation alongside WLAN networks.

• Flexible Configuration: Offers multiple configuration methods, including a MODE button, web interface, AT commands (TCP/IP), and SSC, facilitating easy setup and integration.

• Robust Design: With an IP65 protection rating, it is suitable for harsh industrial environments, providing resistance against dust and water ingress.

• Integrated Antenna: Features an internal circularly polarized panel antenna, eliminating the need for external antennas and simplifying installation.

Technical Specifications:

• Frequency Range: 2.402 GHz to 2.48 GHz (ISM bandwidth)

• Transmission Power: Up to 15 dBm (EIRP)

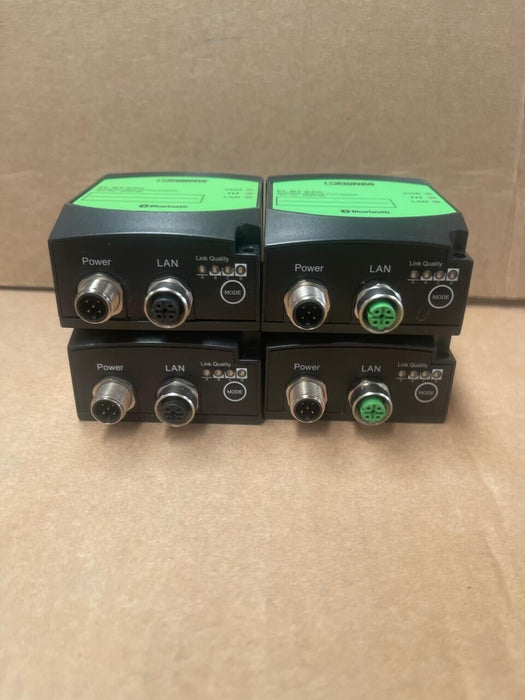

• Ethernet Interface: 1 M12 connector, D-coded (female)

• Power Supply: 9 V DC to 30 V DC via M12 connector, A-coded (male)

• Current Consumption: Approximately 46 mA at 24 V DC

• Operating Temperature: -40°C to +65°C

• Dimensions: 66 mm (W) x 91 mm (H) x 34 mm (D) (excluding M12 connections)

• Weight: Approximately 120 grams
