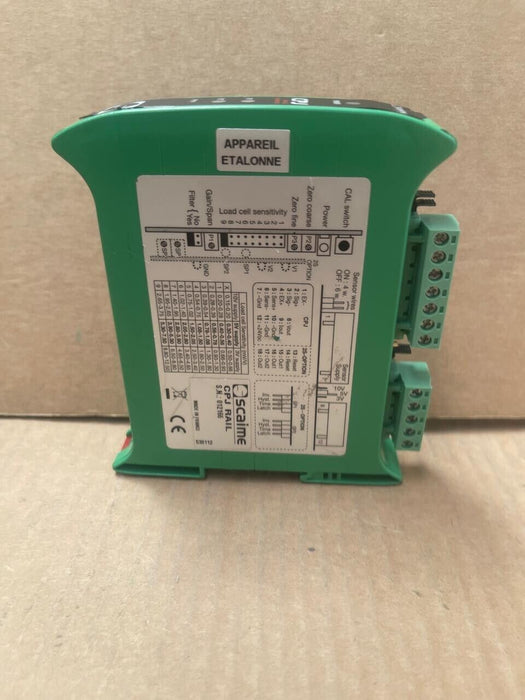

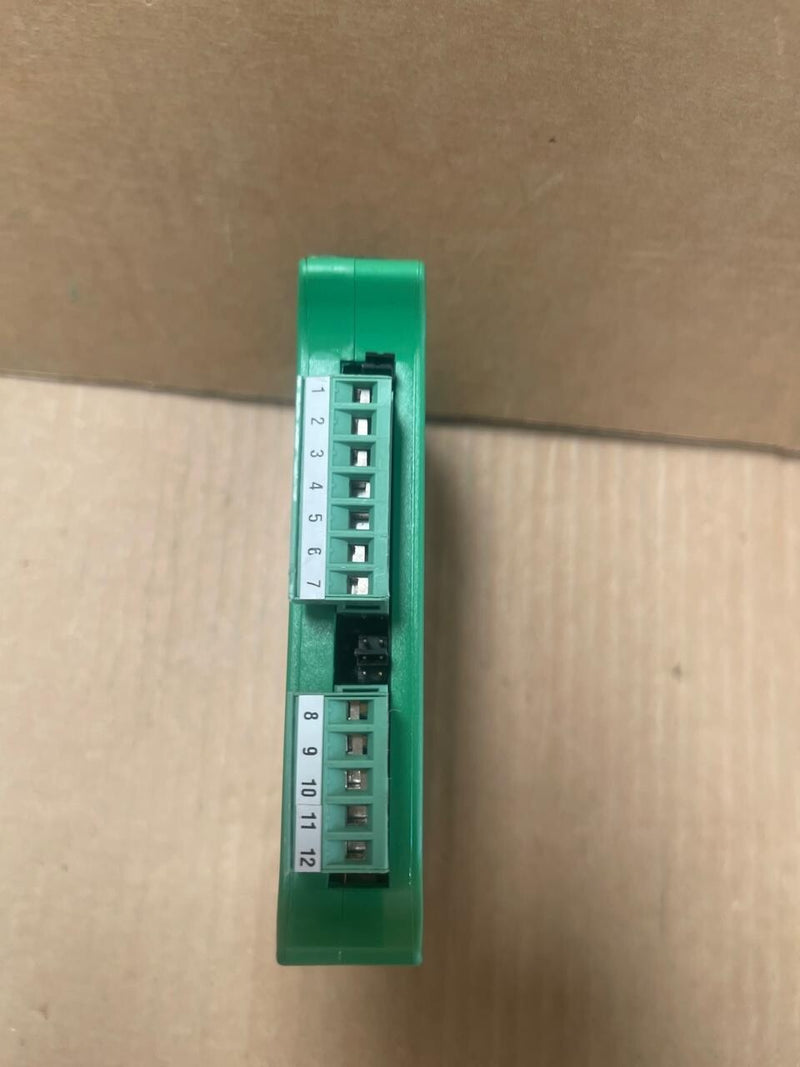

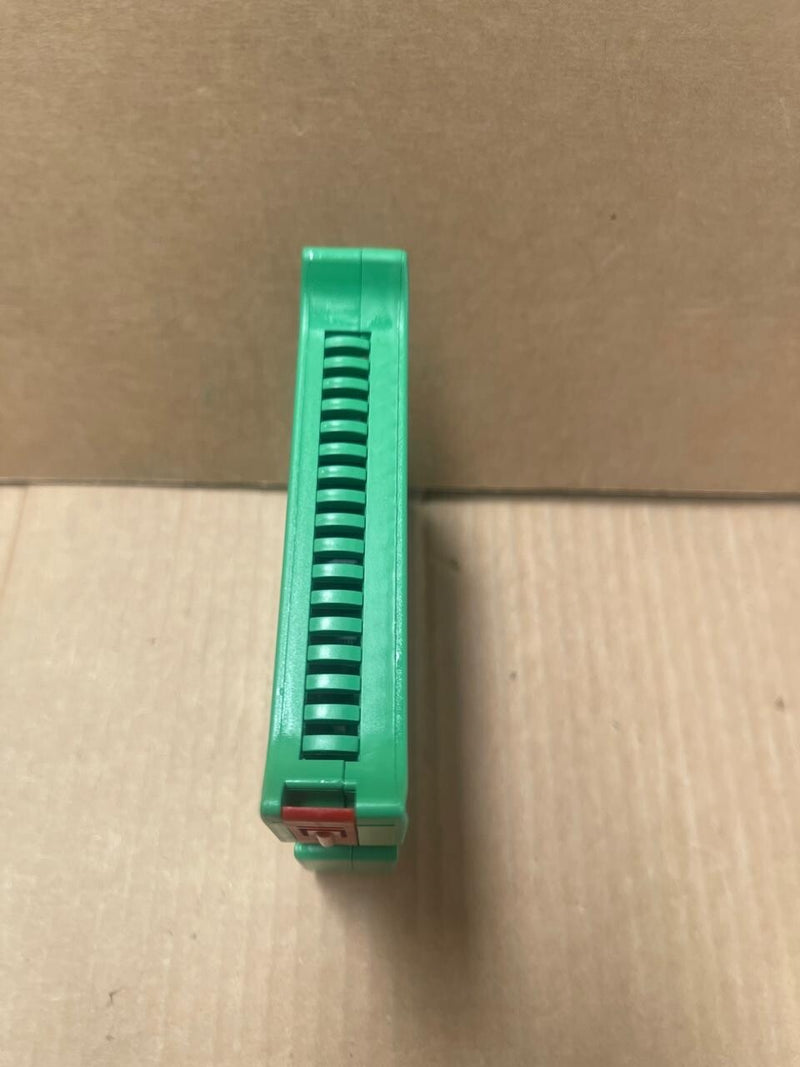

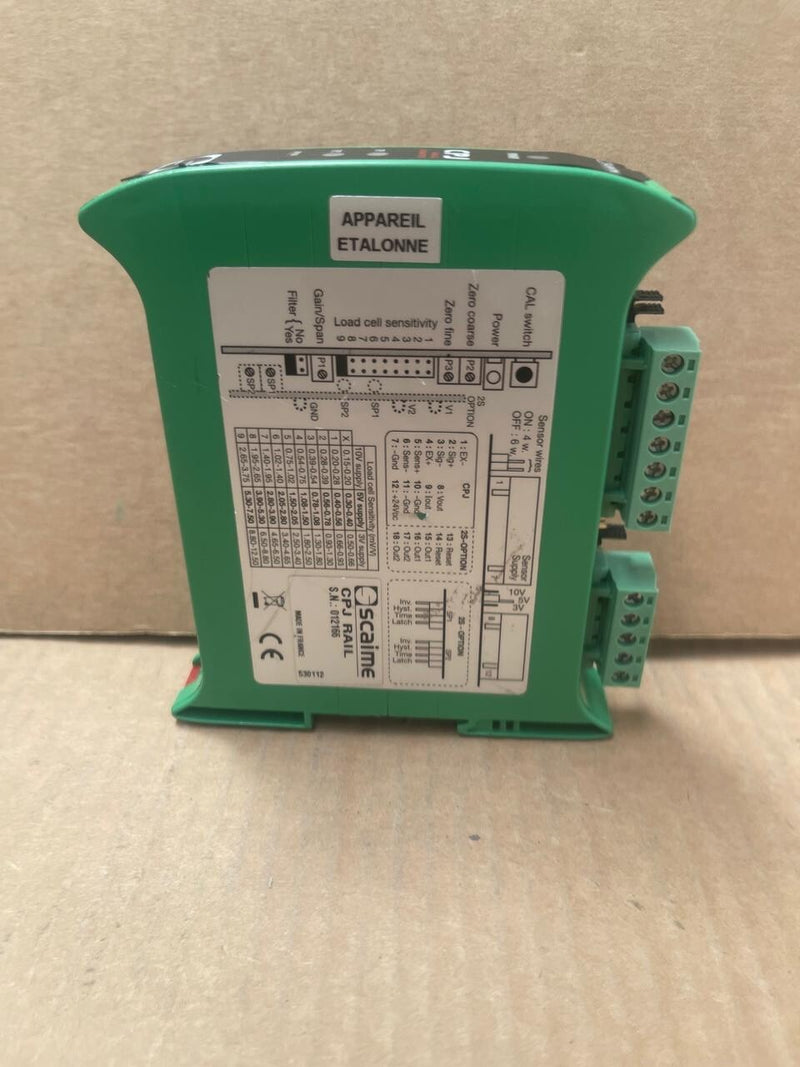

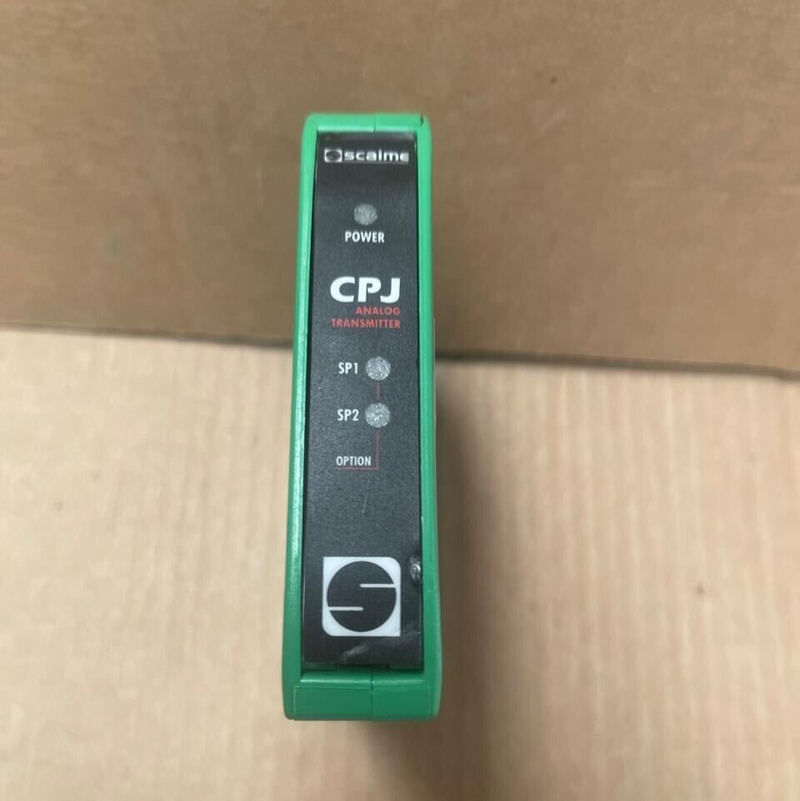

SCAIME - CPJ RAIL - Analog Signal Conditioner for Strain Gauge Sensors

The SCAIME CPJ RAIL is an analog signal conditioner designed for precise measurement applications involving strain gauge sensors. Housed in a DIN rail mountable enclosure, this conditioner is capable of interfacing with up to four strain gauge load cells (supporting both 4-wire and 6-wire configurations). It provides both voltage (±10 V or 0-10 V) and current (4-20 mA) outputs, ensuring compatibility with a wide range of data acquisition systems.

Key Features:

• Multi-Channel Support: Accommodates up to four strain gauge load cells, facilitating comprehensive measurement setups.

• Versatile Output Options: Offers both voltage and current outputs to suit various interfacing requirements.

• Shunt Calibration: Includes a shunt calibration feature for easy and accurate system calibration.

• DIN Rail Mounting: Designed for seamless integration into industrial control panels with standard DIN rail mounting.

Technical Specifications:

• Input Compatibility: Supports 4 or 6-wire strain gauge load cells.

• Output Signals: Selectable between ±10 V, 0-10 V, and 4-20 mA.

• Housing: DIN rail mountable enclosure.

• Optional Features: The CPJ2S variant includes two set points with relay outputs for control applications.

Applications:

• Industrial Weighing: Ideal for tank and silo weighing systems.

• Force Measurement: Suitable for applications requiring precise force monitoring.

• Process Control: Integrates seamlessly into automated systems for real-time monitoring and control.

Weight:

[Information not specified]
