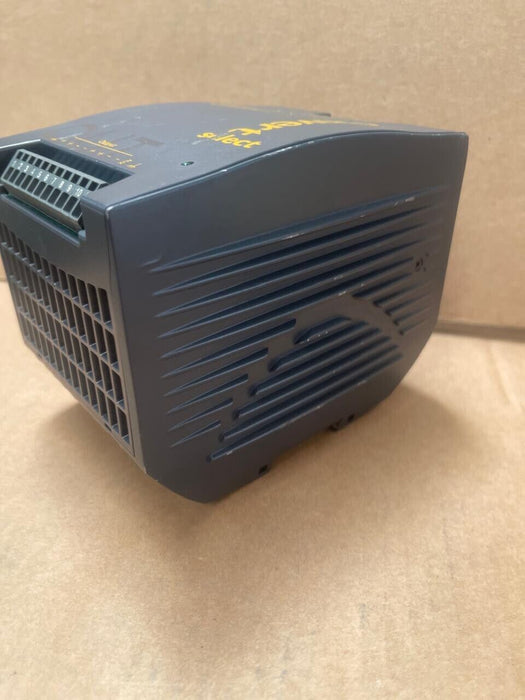

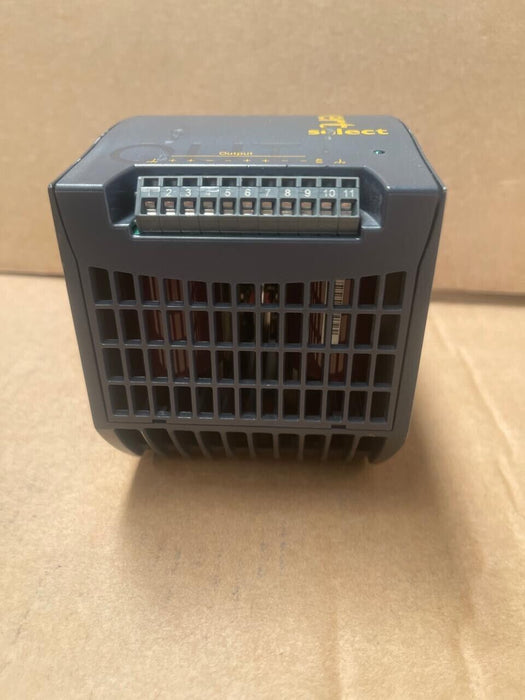

Power-One - LWN1741-6E - 250W AC-DC DIN-Rail Power Supply

The Power-One LWN1741-6E is a 250-watt AC-DC DIN-rail power supply from the W Series, designed for industrial applications requiring reliable and efficient power conversion. This unit provides a single 36 V DC output at 6.9 A, suitable for a variety of industrial control systems and automation equipment. It features a universal AC input range from 85 to 264 V AC, accommodating global power standards. The power supply is engineered with power factor correction and delivers high efficiency, ensuring energy-efficient operation. Its rugged design includes a 35 mm DIN-rail snap-fit mechanism for easy installation and secure mounting in control panels. The LWN1741-6E complies with international safety and EMC standards, making it a reliable choice for demanding industrial environments.

Key Features:

• High Efficiency: Delivers up to 88% efficiency, reducing energy consumption and heat generation.

• Universal AC Input: Operates within a wide input voltage range of 85 to 264 V AC, suitable for global applications.

• Robust Design: Rugged construction with a 35 mm DIN-rail snap-fit for easy and secure installation.

• Power Factor Correction: Integrated PFC enhances power quality and reduces harmonic distortion.

• Compliance: Meets international safety and EMC standards, ensuring reliable and safe operation.

Technical Specifications:

• Model Number: LWN1741-6E

• Output Voltage: 36 V DC

• Output Current: 6.9 A

• Output Power: 250 W

• Input Voltage Range: 85 to 264 V AC

• Efficiency: Up to 88%

• Mounting: 35 mm DIN-rail snap-fit

• Dimensions: 113.6 mm (L) x 103.0 mm (W) x 138.0 mm (H)

• Weight: Approximately 1.4 kg

• Operating Temperature Range: -40 °C to +60 °C

• Protection Features: Overload, short-circuit, and overvoltage protection

• Certifications: Compliant with IEC/EN 62368-1, UL/CSA 60950-1, UL 508

Applications:

• Industrial Automation: Powers control systems, PLCs, and automation equipment.

• Process Control: Suitable for instrumentation and control systems in various industries.

• Factory Equipment: Provides reliable power for machinery and production line equipment.

• Building Management Systems: Supports HVAC controls, lighting systems, and security equipment.
