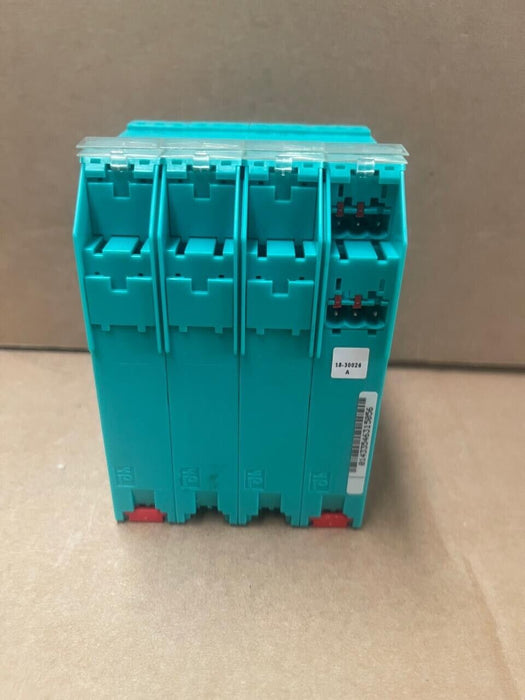

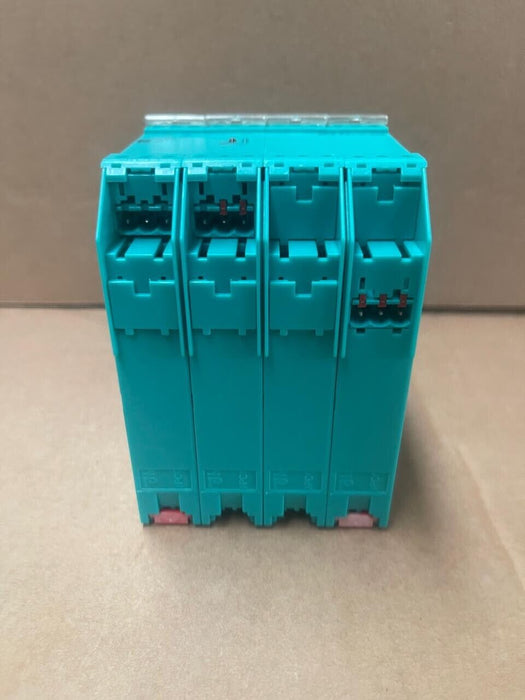

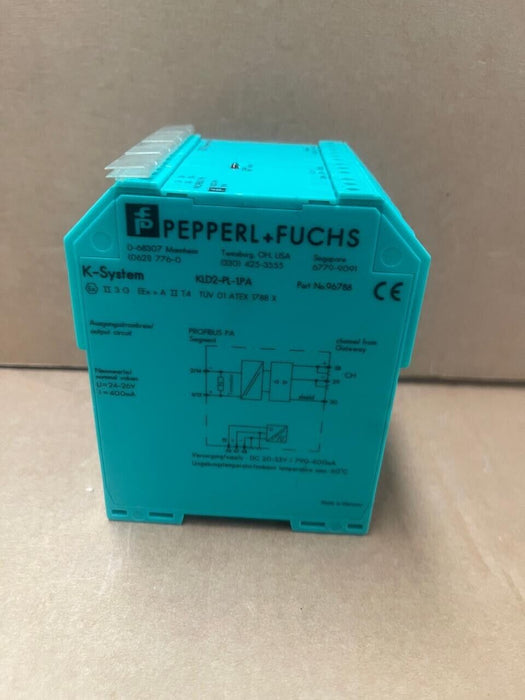

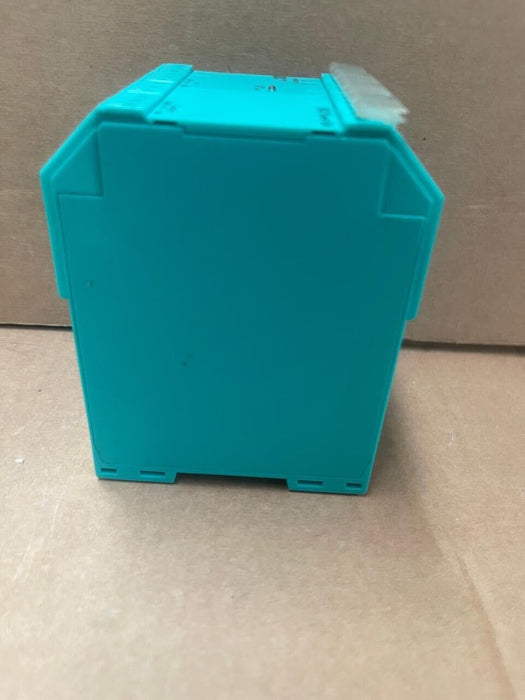

Pepperl+Fuchs - KLD2-PL-1.PA - PROFIBUS PA Power Link Module

The Pepperl+Fuchs KLD2-PL-1.PA is a Power Link module designed to interface PROFIBUS DP systems with PROFIBUS PA segments. When combined with the KLD2-GT-DP(R).xPA gateway, it forms the SK2 segment coupler, enabling seamless integration of PROFIBUS PA devices into existing PROFIBUS DP networks.

Key Features:

• PROFIBUS PA Integration: Facilitates the connection of up to 32 PROFIBUS PA devices per segment, adhering to EN 50170/2 and IEC 61158-2 standards.

• Seamless Communication: Ensures transparent data exchange between PROFIBUS DP and PA devices without the need for additional configuration.

• Flexible Installation: Supports mounting on DIN rails and can be installed in Zone 2 hazardous areas, enhancing versatility in industrial environments.

• Power Supply via Power Rail: Simplifies wiring by utilizing a power rail system for both power and data transmission.

Technical Specifications:

• Supply Voltage: 20 to 35 V DC

• Power Consumption: Approximately 9.5 W

• PROFIBUS PA Output Voltage: 24 to 26 V

• PROFIBUS PA Output Current: Up to 400 mA

• Communication Protocol: PROFIBUS DP V1

• Baud Rate: 31.25 kBit/s

• Operating Temperature: -20 to +60 °C

• Dimensions (W x H x D): 80 x 115 x 107 mm

• Weight: Approximately 600 grams
