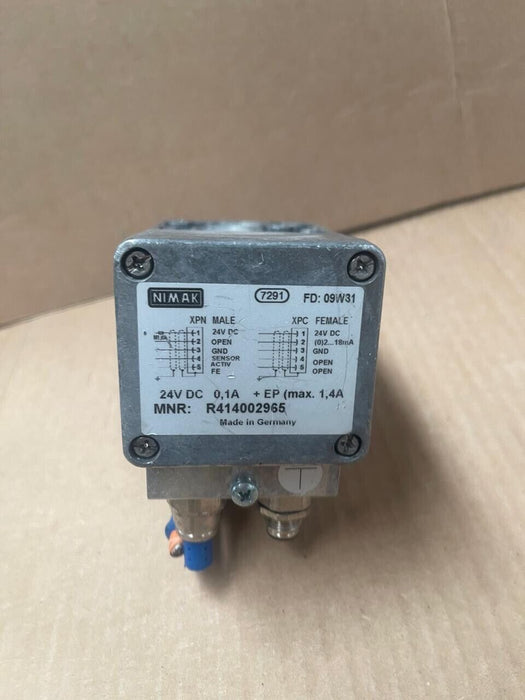

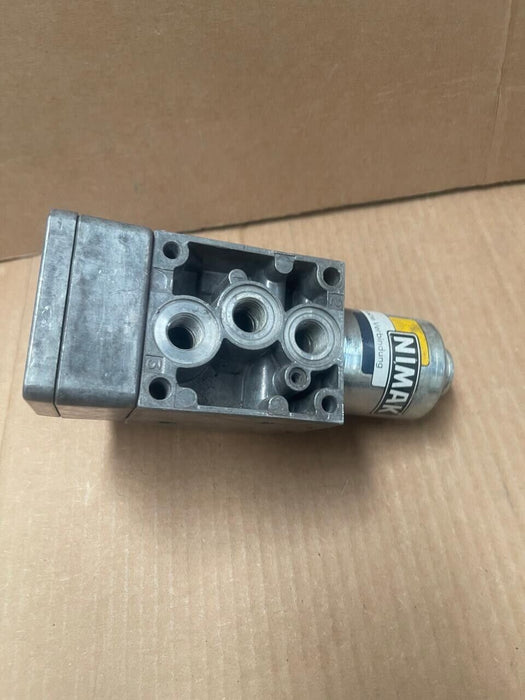

NIMAK - R414002965 - ED05 Series Proportional Pressure Control Valve

The AVENTICS R414002965 is a proportional pressure control valve from the ED05 series, designed for precise regulation of pneumatic pressures in various industrial applications. Key features include:

• Type: Direct-acting proportional pressure control valve

• Maximum Pressure: 11 bar, suitable for a wide range of pneumatic systems

• Nominal Flow (Qn): 1000 l/min, ensuring efficient airflow management

• Control Input: Analog signal, typically 0 … 10 V or 4 … 20 mA, allowing for seamless integration with control systems

• Electrical Connection: 5-pin M12 connector, facilitating easy and secure connections

• Protection Class: IP65, providing resistance against dust and low-pressure water jets

• Mounting Orientation: Flexible mounting options with permissible angles α = 0-90° and β = 0-90°

• Medium: Compressed air, ensuring compatibility with standard pneumatic setups

• Temperature Range:

• Ambient: 0°C to +70°C

• Medium: 0°C to +70°C

• Applications: Ideal for tasks requiring precise pressure control, such as in automation systems, material handling, and process control environments
