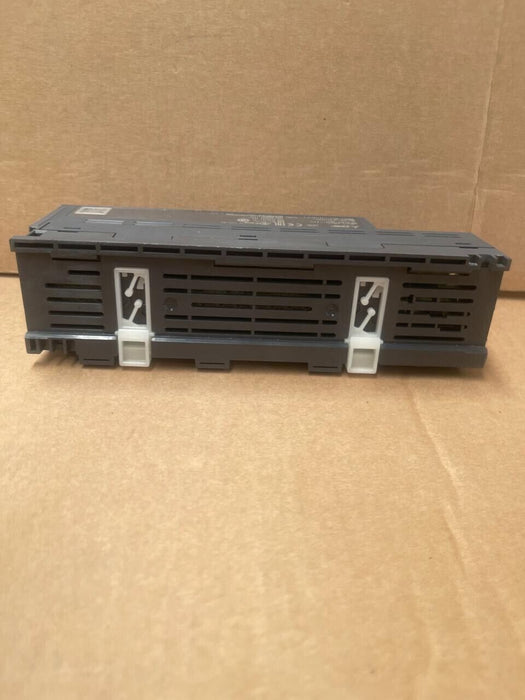

Mitsubishi Electric - NZ2MFB1-32D - CC-Link IE Field Network Basic Remote DC

The Mitsubishi Electric NZ2MFB1-32D is a block-type remote DC input module designed for integration within the CC-Link IE Field Network Basic system. Featuring 32 input points, this module facilitates efficient and reliable data acquisition from various sensors and switches in industrial automation environments. Its compact design and screw terminal connections ensure straightforward installation and maintenance.

Key Features:

• 32 DC Input Points: Allows for extensive data collection from multiple sensors and switches.

• CC-Link IE Field Network Basic Compatibility: Ensures seamless integration within Mitsubishi Electric’s automation systems.

• Screw Terminal Connections: Facilitates secure and straightforward wiring.

• Compact Form Factor: Optimizes space within control cabinets.

Technical Specifications:

• Input Specifications:

• Input Type: DC input (positive/negative shared common type)

• Number of Input Points: 32

• Rated Input Voltage: 24 V DC (allowable voltage range: 20.4–28.8 V DC)

• Rated Input Current: 6.0 mA (typical at 24 V DC)

• Input Resistance: 3.8 kΩ

• Input Response Time: Selectable (0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms)

• General Specifications:

• Isolation Method: Photocoupler

• Dielectric Withstand Voltage: 500 V AC for 1 minute between all DC external terminals and ground

• Insulation Resistance: 10 MΩ or higher between all DC external terminals and ground (500 V DC insulation resistance tester)

• Protection Degree: IP2X

• Occupied Stations: 1

• Module Power Supply Voltage: 24 V DC (ripple rate: 5% or less)

• Current Consumption: Approximately 71 mA

• Physical Specifications:

• Dimensions: Width: 200 mm; Height: 50 mm; Depth: 68 mm

• Weight: 0.3 kg
