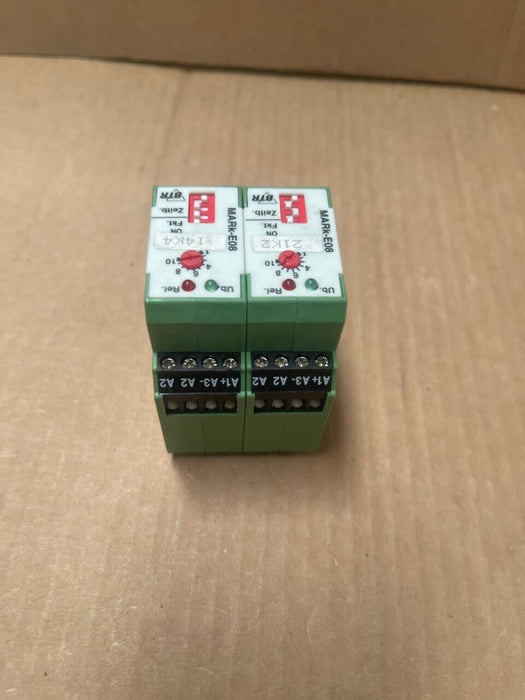

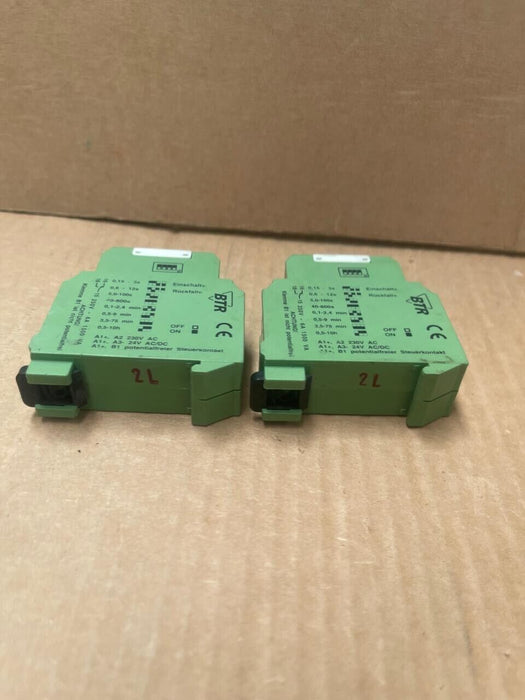

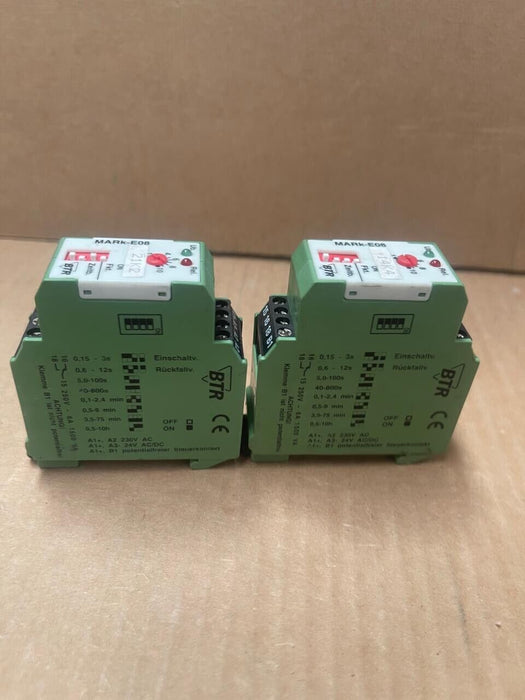

METZ CONNECT - MARK-E08 - Multifunction Timer Relay

Name: METZ CONNECT - MARK-E08 - Multifunction Timer Relay
Brand: VOLTWERK Handel
SKU: EB-286262813415
Price: 17.67 EUR
Availability: InStock

by VOLTWERK Handel

Sale

€19,00

€19,00 - €19,00

€19,00

€17,67

€17,67 - €17,67

€17,67

Availability:

Only 2 left!

The METZ CONNECT MARK-E08 is a multifunctional timer relay designed for versatile timing applications. It features:

• Operating Voltage: 230 V AC, 24 V AC/DC

• Adjustable Time Ranges: Eight settings from 0.15 seconds to 10 hours

• Selectable Functions: Five modes including on-delay, off-delay, making-pulse interval, pause-start flashing, and pulse-start flashing

• Connection Type: Screw terminal blocks for secure wiring

• Contact Type: Single changeover contact (SPDT)

• Output Switching Voltage: Up to 250 V AC

• Continuous Current: Up to 6 A

• Operating Temperature Range: -10°C to +55°C

• Protection Degree: Housing IP40, Terminal IP20

• Dimensions: 22.5 mm (W) x 61.3 mm (H) x 60 mm (D)

This relay is suitable for various industrial and automation applications requiring precise timing control.
