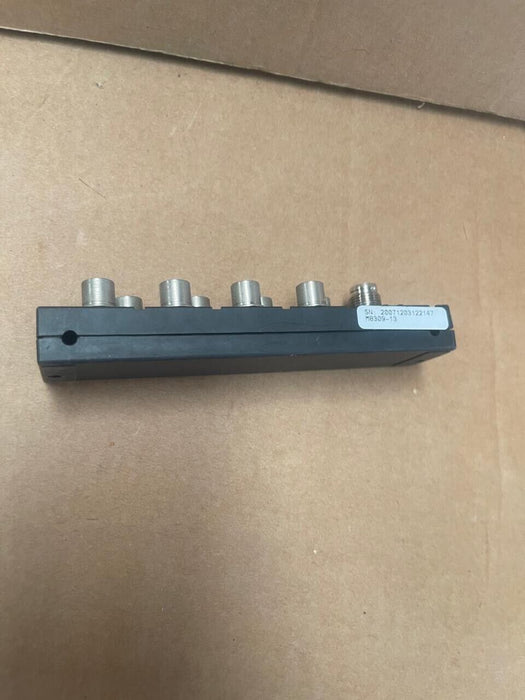

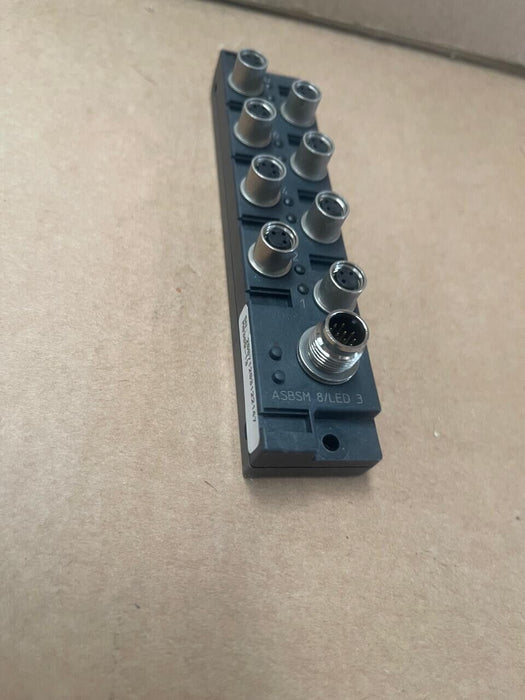

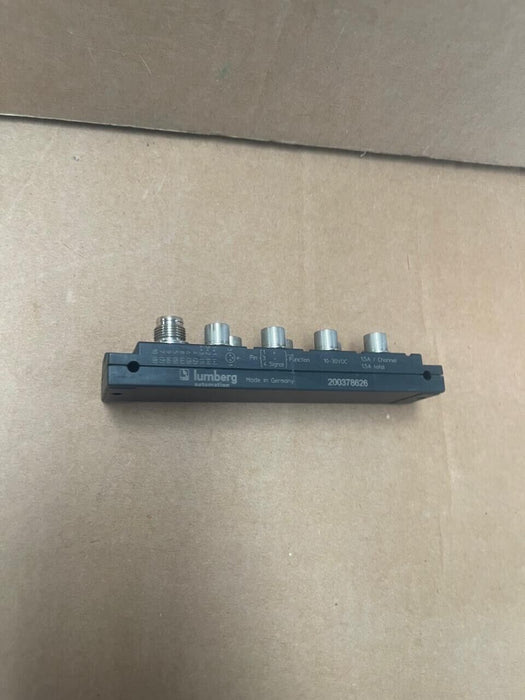

Lumberg Automation - M8309-13 - M8 Actuator/Sensor Distribution Box

The Lumberg Automation M8309-13 is an M8 actuator/sensor distribution box designed to streamline the connection of multiple sensors and actuators in industrial automation systems. Featuring eight ports with M8 sockets, this distribution box facilitates efficient signal distribution and reduces wiring complexity. Each port is equipped with LED indicators for easy status monitoring, enhancing troubleshooting and maintenance efficiency.

Key Features:

• Eight M8 Ports: Provides eight 3-pole M8 sockets, allowing for the connection of multiple sensors or actuators.

• LED Indicators: Each port includes LED operation and function indicators, enabling quick visual status checks.

• Top-Entry Design: Features a top-entry configuration for convenient cable management and installation.

• Integrated Control Cable: Comes with an integrated control cable for straightforward integration into existing systems.

• Robust Construction: Built to withstand industrial environments, ensuring reliable performance.

Technical Specifications:

• Model Number: M8309-13

• Number of Ports: 8

• Connector Type: M8 sockets, 3-pole

• Voltage Rating: 10–30 V DC

• Current Rating: 2 A per port, 2 A maximum total

• Housing Material: PBT (Polybutylene Terephthalate)

• Insert Material: TPU (Thermoplastic Polyurethane), self-extinguishing

• Contact Material: CuSn (Copper-Tin Alloy), pre-nickeled and 0.8 µm gold-plated

• Receptacle Shell Material: Brass, nickel-plated

• O-Ring Material: FKM (Fluoroelastomer)

• Degree of Protection: IP67 / NEMA 6P

• Operating Temperature Range: –15 °C to +80 °C (+5 °F to +176 °F)

• Dimensions: [Information not specified]

• Weight: [Information not specified]

Applications:

• Industrial Automation: Ideal for connecting multiple sensors and actuators in automated manufacturing systems.

• Material Handling: Suitable for conveyor systems and automated storage solutions requiring efficient signal distribution.

• Packaging Machinery: Enhances connectivity in packaging lines by simplifying wiring and providing clear status indication.
