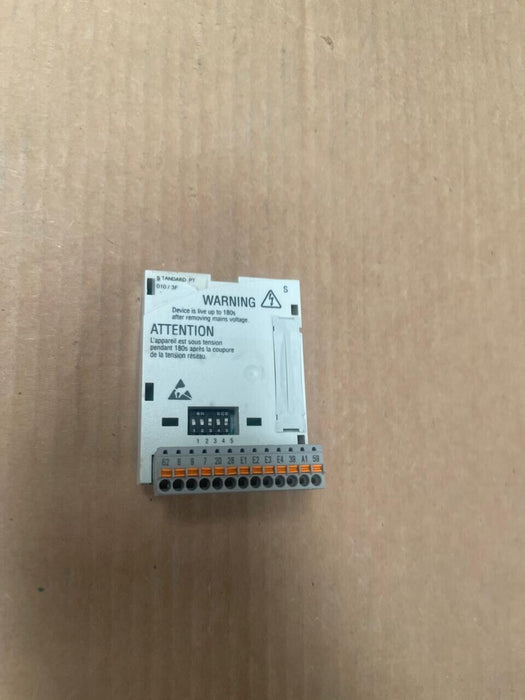

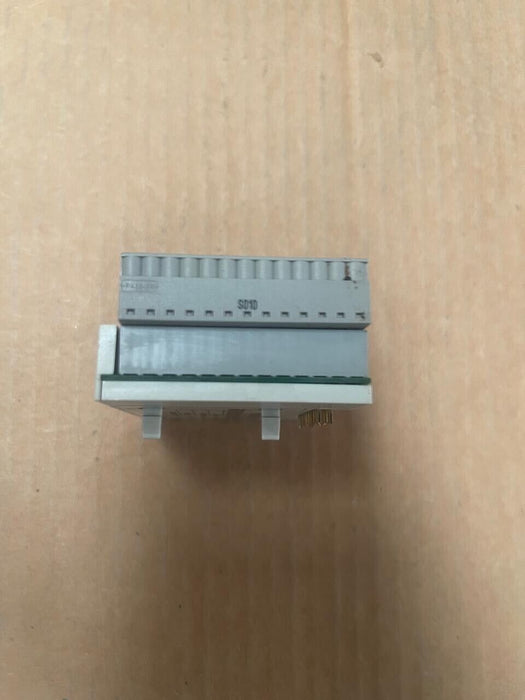

Lenze - E82ZAFSC010 - Standard I/O Coated Module for 8200 Frequency Inverters

The Lenze E82ZAFSC010 is a Standard I/O Coated Module designed for use with Lenze 8200 Frequency Inverters. It provides both analog and digital inputs and outputs, facilitating seamless integration into standard industrial applications. This module enhances the functionality of the inverter by enabling precise control and monitoring capabilities.

Key Features:

• Digital Inputs: 5 inputs with PLC switching level, supporting up to 10 kHz, 1 track.

• Digital Outputs: 1 output with PLC switching level, maximum output current of 50 mA.

• Analog Inputs: 1 input with 10-bit resolution, supporting 0 to ±10 V or 0/4 to 20 mA.

• Analog Outputs: 1 output with 10-bit resolution, providing 0 to 10 V with a maximum of 2 mA.

• Terminals: Screw-type connections for secure wiring.

• Coated Design: Enhanced protection for use in challenging industrial environments.

Applications:

• Industrial automation systems

• Process control

• Machine control

• Systems requiring integration of analog and digital signals

Technical Specifications:

• Digital Inputs: 5

• Digital Outputs: 1

• Analog Inputs: 1

• Analog Outputs: 1

• Resolution: 10 bits for both analog inputs and outputs

• Input Voltage Range: 0 to ±10 V or 0/4 to 20 mA

• Output Voltage Range: 0 to 10 V, max. 2 mA

• Mounting: Fits into the lower slot of the 8200 vector inverter; for power ranges from 15 to 90 kW, a second slot is available for bus function modules.
