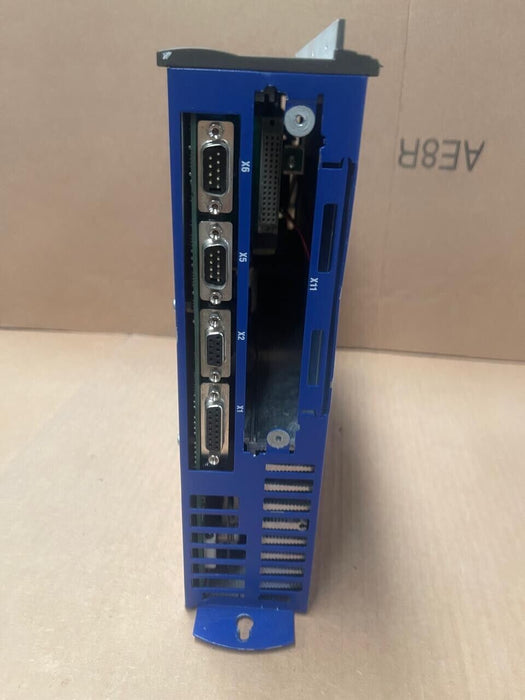

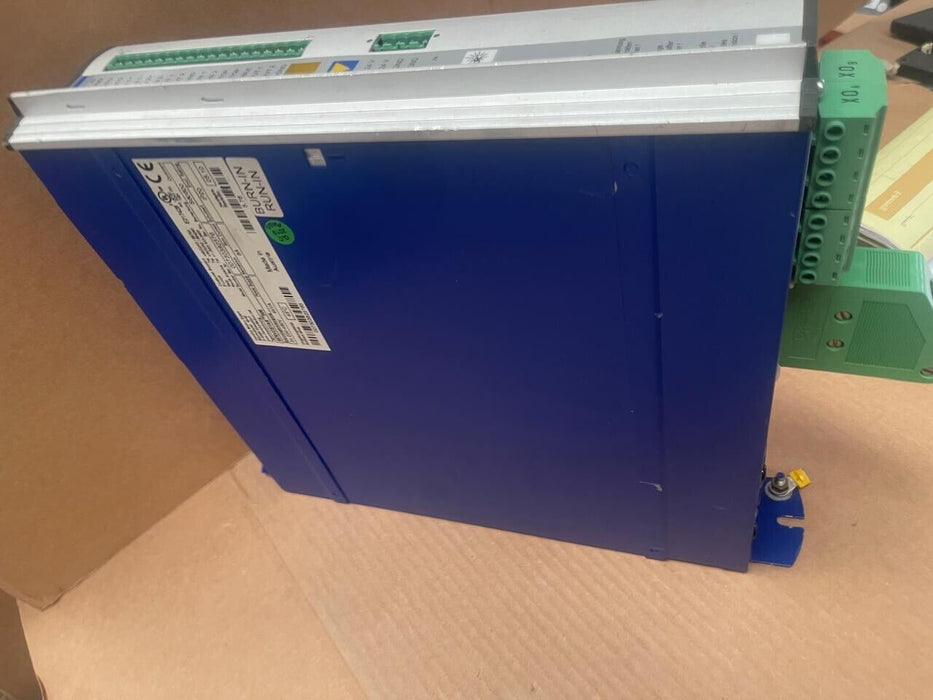

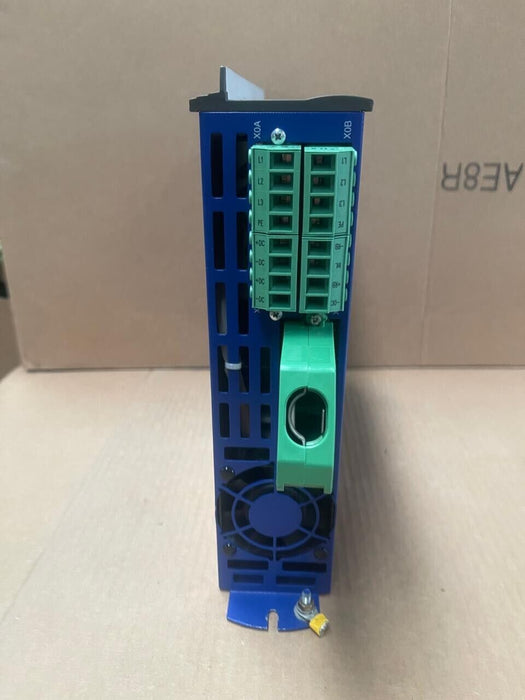

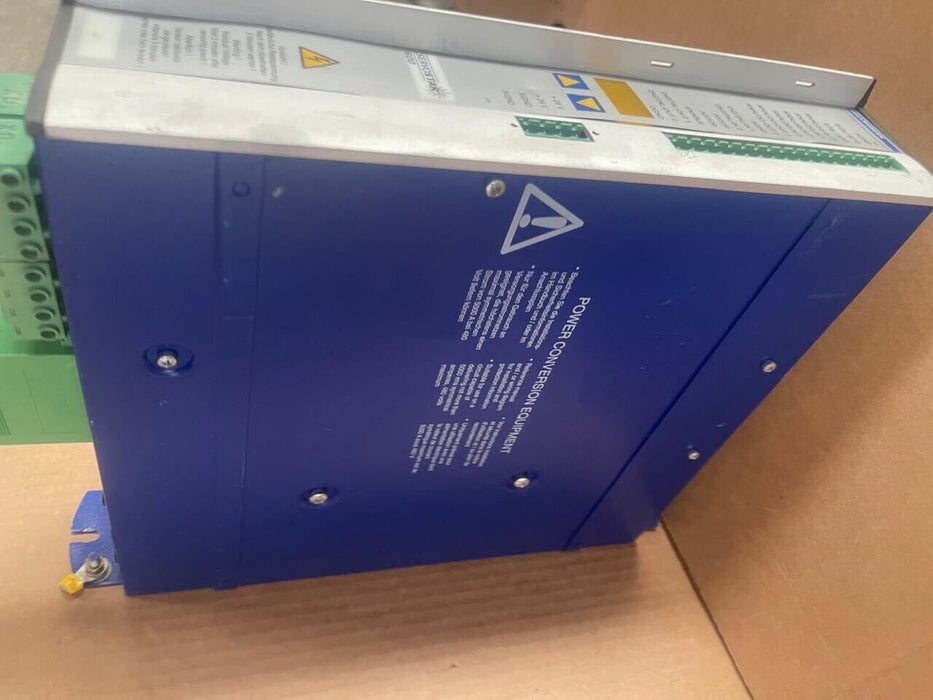

Kollmorgen - SERVOSTAR 606 S60600 - Digital Servo Amplifier 4kW

The Kollmorgen SERVOSTAR 606 S60600 is a digital servo amplifier from the SERVOSTAR 600 series, designed to provide precise control of AC synchronous and asynchronous motors in various industrial applications. With a continuous output current of 6 A RMS, this amplifier operates directly from a 230 to 480 V AC power supply, delivering high-performance motor control with advanced features.

Key Features:

• Power Supply Compatibility: Operates with grounded three-phase mains, 230 V to 480 V AC, 50/60 Hz.

• Output Current: Provides a continuous output current of 6 A RMS per phase.

• Integrated Components: Includes an internal braking resistor and mains filter for enhanced performance and simplified installation.

• Compact Design: Sized to fit into 300 mm switch cabinets, optimizing space utilization.

• Intelligent Positioning: Offers capabilities such as speed profiles, registration mark control, jolt limiting, and support for both absolute and relative positioning tasks.

• Multi-Feedback Support: Compatible with various feedback systems, including resolvers, incremental encoders, and sine encoders with protocols like EnDat, HIPERFACE, and BiSS.

• Communication Interfaces: Provides interfaces for stepper motor control, master-slave operation, and electronic gearing, facilitating seamless integration into diverse control systems.

Applications:

• Precision automation systems

• Robotics

• CNC machinery

• Packaging equipment

• Material handling systems

Technical Specifications:

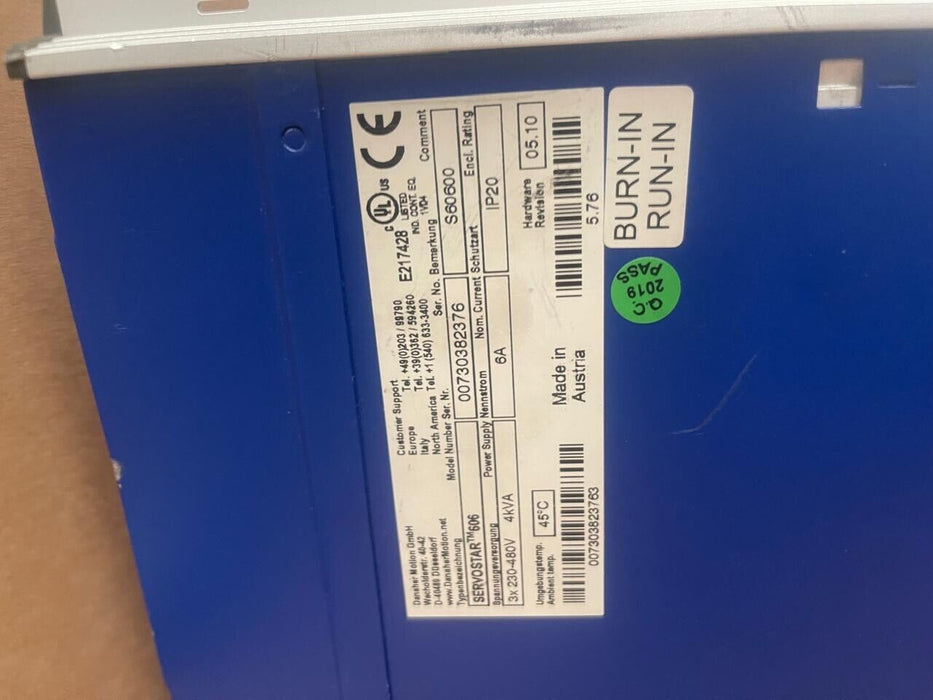

• Model Number: SERVOSTAR 606 S60600

• Series: SERVOSTAR 600

• Input Voltage: Three-phase, 230-480 V AC ±10%, 50/60 Hz

• Continuous Output Current: 6 A RMS per phase

• Peak Output Current: 12 A RMS (for up to 5 seconds)

• Integrated Braking Resistor: 200 W continuous power dissipation

• Dimensions (H x W x D): 275 mm x 70 mm x 265 mm

• Weight: Approximately 3.5 kg

• Protection Class: IP20

• Ambient Temperature Range: 0°C to +40°C for continuous operation
