Klockner Moeller – MI4-111-KE1 – Text Operator Panel

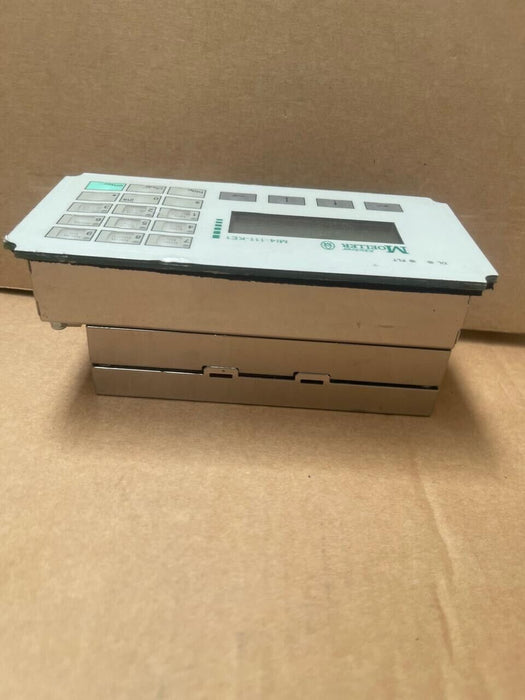

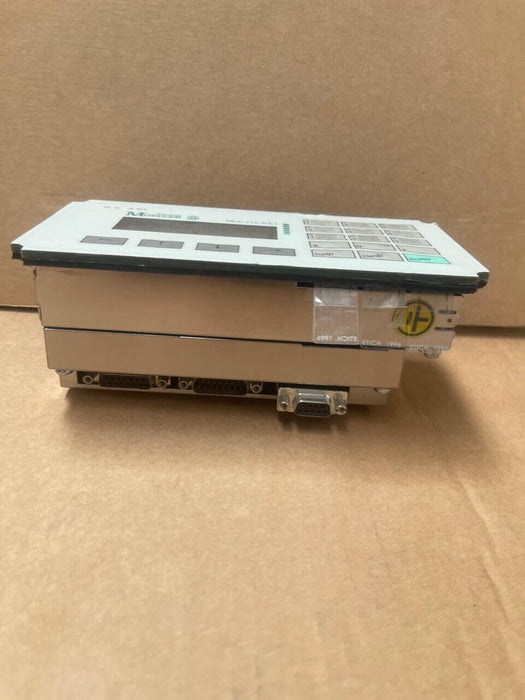

The Klockner Moeller MI4-111-KE1 is a text-based operator panel designed for industrial automation applications. It features a 4-line by 20-character monochrome LCD, providing clear text display for monitoring and control tasks. The panel includes a numeric keypad and 9 function keys with LED indicators, allowing for efficient user interaction and control. Equipped with multiple communication ports, including Sucom A for PLC connections and an auxiliary port supporting various fieldbus interfaces, the MI4-111-KE1 ensures seamless integration into diverse automation systems. Its compact design and IP65-rated front panel make it suitable for installation in industrial environments where space and durability are critical.

Key Features:

• Monochrome LCD Display: 4 lines x 20 characters for clear text visualization.

• User-Friendly Interface: Numeric keypad and 9 function keys with LEDs for intuitive operation.

• Versatile Communication: Supports Sucom A protocol and offers an auxiliary port for fieldbus modules.

• Compact and Durable: IP65-rated front panel ensures protection against dust and water ingress.

Technical Specifications:

• Display: Monochrome LCD, 4 lines x 20 characters

• Keypad: Numeric keypad with 9 function keys (each with LED indicators)

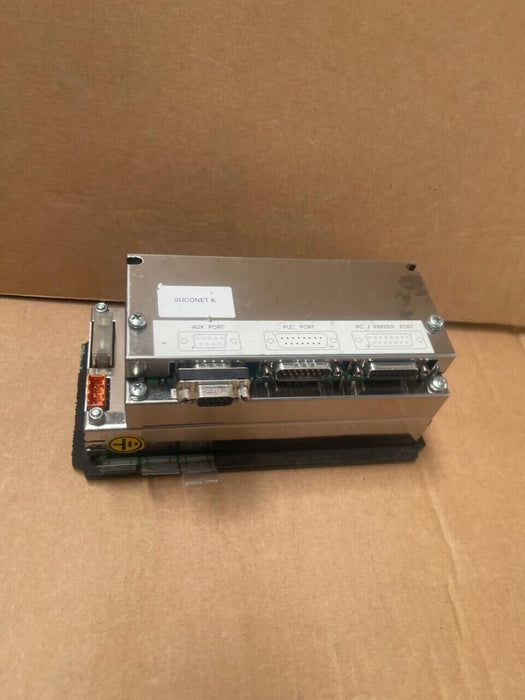

• Communication Ports:

• PLC Port: Sucom A protocol

• Auxiliary Port: Supports plug-in modules for Suconet K, PROFIBUS-DP, Siemens MPI, DeviceNet, and CANopen

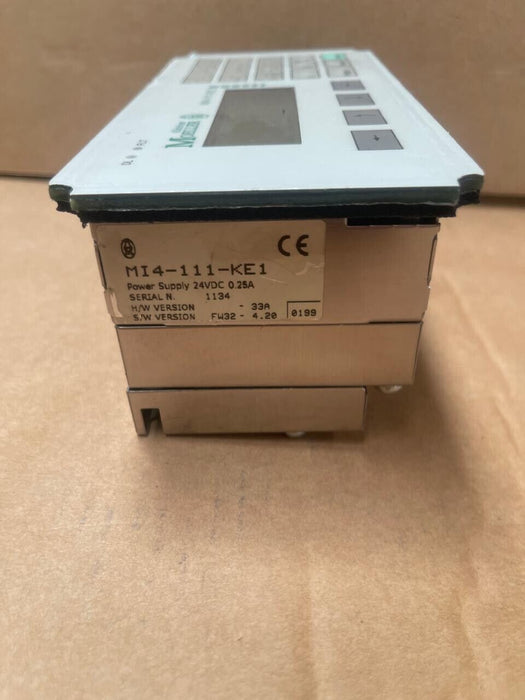

• Power Supply: 24 V DC (18 to 30 V DC range)

• Current Consumption: Approximately 250 mA

• Dimensions (W x H x D): 195 mm x 98 mm x 74 mm

• Mounting Cutout: 174 mm x 78 mm

• Operating Temperature: 0 to 50 °C

• Storage Temperature: -20 to +70 °C

• Front Panel Protection: IP65 rating

• Weight: Approximately 1 kg

Applications:

• Industrial Automation: Ideal for monitoring and controlling machinery and processes.

• Process Control: Suitable for applications requiring user interaction and data entry.

• Manufacturing Systems: Enhances operator interface in production lines and automated systems.
