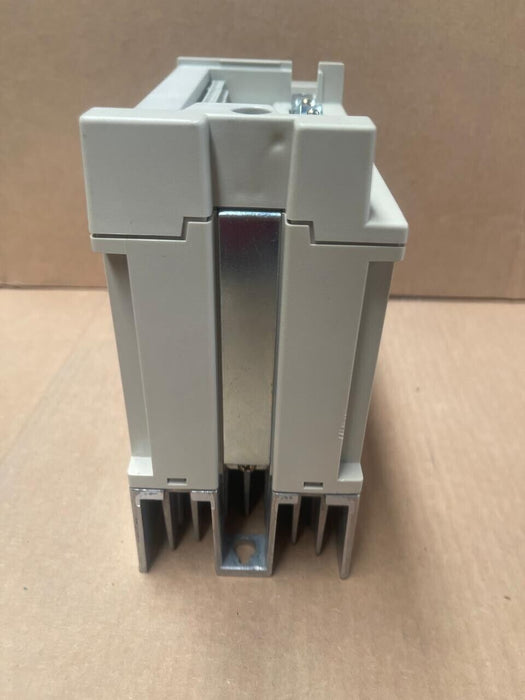

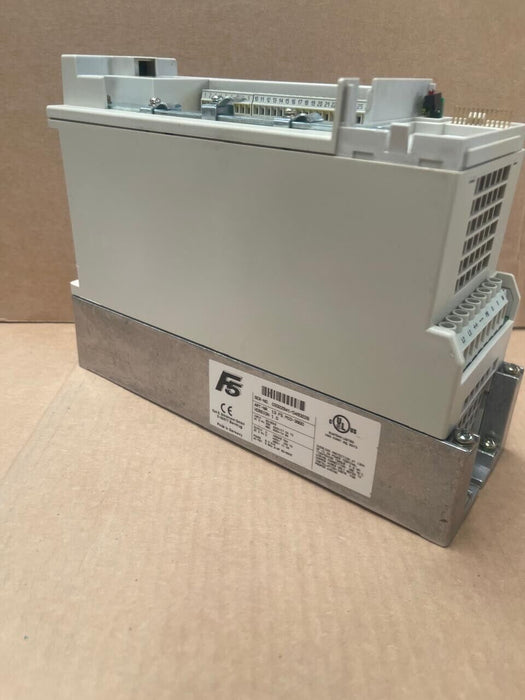

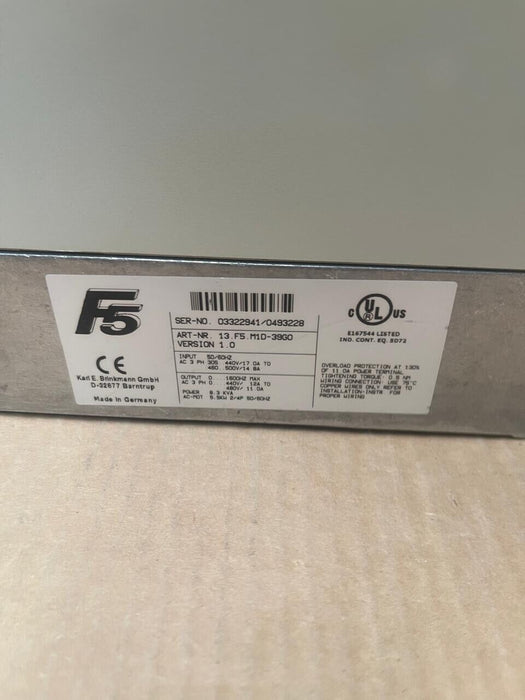

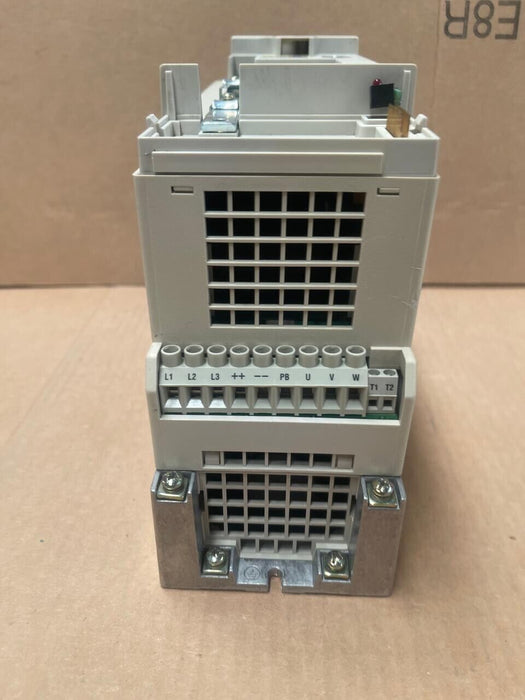

KEB - 13.F5.M1D-39G0 - COMBIVERT F5 Frequency Inverter, 5.5 kW, 3-Phase 400V

The KEB COMBIVERT F5 series frequency inverter, model 13.F5.M1D-39G0, is designed for precise motor control in industrial applications. It supports a power rating of 5.5 kW and operates on a 3-phase 400V AC supply. This inverter offers advanced motor management features, making it suitable for various demanding environments.

Key Features:

• Motor Control: Advanced vector control for precise speed and torque regulation.

• Power Rating: Suitable for motors up to 5.5 kW.

• Voltage Range: Operates on 3-phase 400V AC.

• Frequency Range: Output frequency adjustable from 0 to 800 Hz.

• Overload Capacity: Capable of handling 150% of nominal output current for short durations.

• Protection: Integrated safeguards against overtemperature, overvoltage, undervoltage, short-circuit, earth fault, and overload conditions.

• Interfaces: Standard interfaces include RS232/485; optional modules available for various fieldbus systems.

• Cooling: Efficient cooling system to maintain optimal operating temperatures.

Applications:

• Conveyor systems

• Pump and fan control

• Material handling equipment

• General industrial machinery requiring variable speed motor control

Technical Specifications:

• Input Voltage: 3-phase 400V AC ±10%, 50/60 Hz

• Output Voltage: 3-phase, proportional to input voltage

• Nominal Output Current: [Refer to the datasheet for detailed current ratings]

• Power Factor: ≥ 0.95

• Ambient Temperature: 0°C to +40°C for continuous operation; up to +50°C with derating

• Dimensions: [Refer to the datasheet for detailed dimensions]

• Weight: [Refer to the datasheet for weight information]
