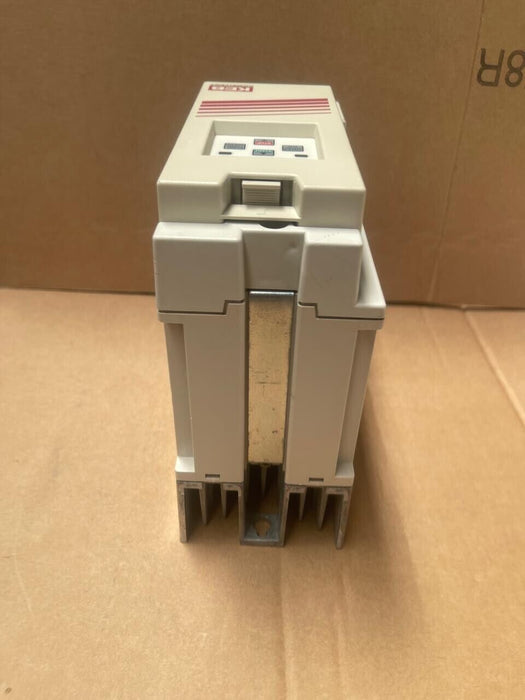

KEB - 13.F5.B1D-390A - COMBIVERT F5 Series Drive Controller with Display

The KEB COMBIVERT F5 series is designed for controlled and regulated applications in demanding mechanical and plant engineering tasks, supporting power ratings up to 900 kW. It is suitable for both asynchronous three-phase motors and synchronous servo drives.

Key Features:

• Versatile Motor Control: Capable of controlling both asynchronous and synchronous motors.

• Modular Software: Meets high demands in terms of speed, torque, and breakaway torque, with or without encoder feedback.

• Uniform Operation: Consistent handling and tools across the entire power range facilitate installation, start-up, and servicing.

Technical Specifications:

• Model Number: 13.F5.B1D-390A

• Input Voltage: 305–440 V AC, 50/60 Hz

• Input Current: 16.8 A

• Output Voltage: 0–440 V AC

• Output Current: 12 A

• Output Frequency: 0–1600 Hz

• Power Rating: 5.5 kW (7.5 HP)

• Control Method: Sensorless motor management (KEB-SMM)

• Dimensions: [Information not specified]

• Weight: [Information not specified]

Applications:

• Industrial Automation: Suitable for various controlled and regulated applications in mechanical and plant engineering.

• Machine Tools: Provides precise motor control for machine tool operations.

• Material Handling: Enhances control in conveyor systems and other material handling equipment.
