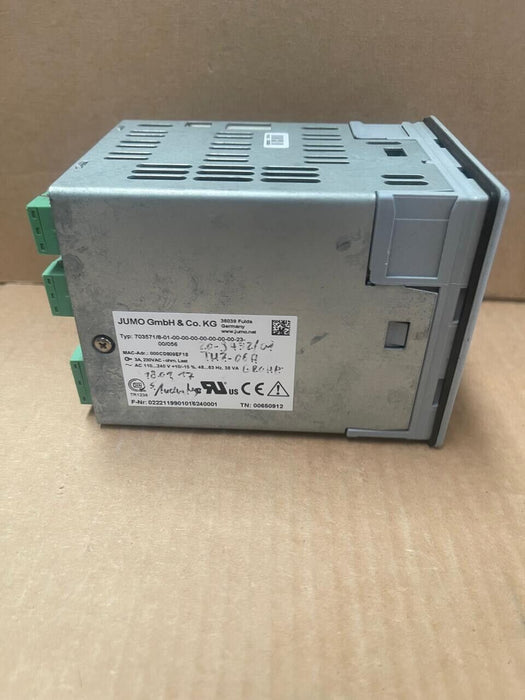

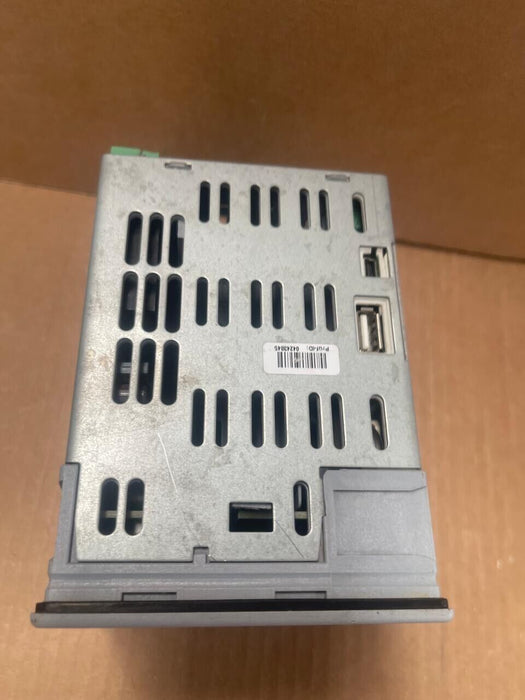

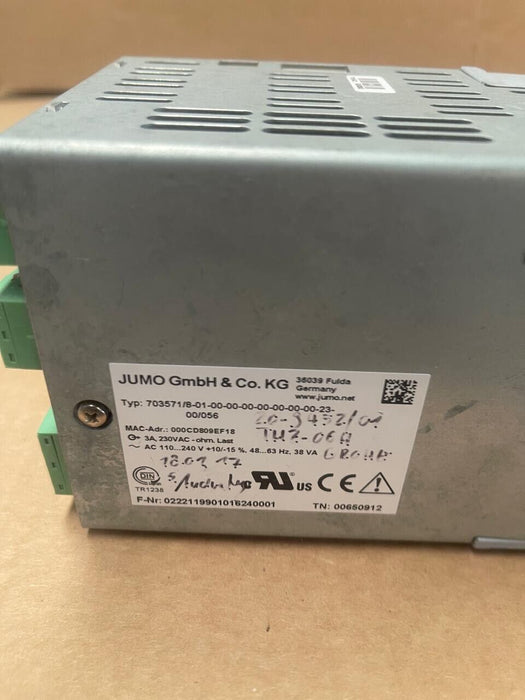

JUMO - 703571/8-01-00-00-00-00-00-00-00-23-00/056 - DICON Touch PID Temperature

JUMO - 703571/8-01-00-00-00-00-00-00-00-23-00/056 - DICON Touch PID Temperature Controller, 96x96mm, 2 Relay Outputs, 110–240V AC

Description:

The JUMO DICON Touch (MPN: 703571/8-01-00-00-00-00-00-00-00-23-00/056) is a two-channel process and program controller featuring a 3.5-inch TFT color touchscreen for intuitive operation. Key features include:

• Display: 3.5-inch TFT color screen (320 × 420 pixels, 256 colors) with touchscreen operation; plain text display available in multiple languages; customizable process-specific texts and screens.

• Control Channels: Two independent and user-configurable control channels, supporting various control structures including P, I, PD, PI, and PID, with four sets of control parameters per channel.

• Inputs: Four analog universal inputs capable of recording a variety of physical measured values with high precision.

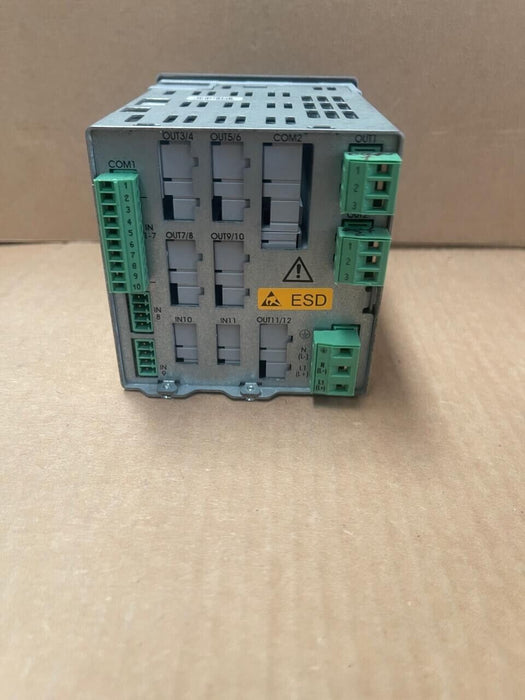

• Outputs: Two relay outputs (normally open contacts) for actuator control; additional output modules available for expansion.

• Interfaces: Standard RS485 (Modbus) interface; optional Ethernet, PROFIBUS DP, PROFINET, or RS422/485 (Modbus) interfaces; USB host and USB device ports for data transfer and configuration.

• Power Supply: Operates on 110 to 240 V AC (+10/-15%), 48 to 63 Hz, suitable for standard industrial power supplies.

• Mounting: Designed for panel mounting with a 96 mm × 96 mm × 131 mm form factor; metal/plastic housing ensures durability.

• Protection Rating: Front panel rated at IP66, providing protection against dust and powerful water jets; rear panel rated at IP20.

• Special Features:

• Modular structure with plug-in cards for easy customization and expansion.

• Integrated paperless recorder function with evaluation software.

• Autotuning procedure for automatic determination of optimal control parameters.

• Math and logic functions for complex control tasks.

• Integrated web server for remote monitoring and configuration.

• Modbus master function for communication with subordinate devices.

• User management with customizable access rights.

• Visualization of process values via the JUMO Device App.

This versatile controller is suitable for a wide range of industrial applications, including multiple zone control, cascade control, and other complex control tasks, providing precise process management and user-friendly operation.
