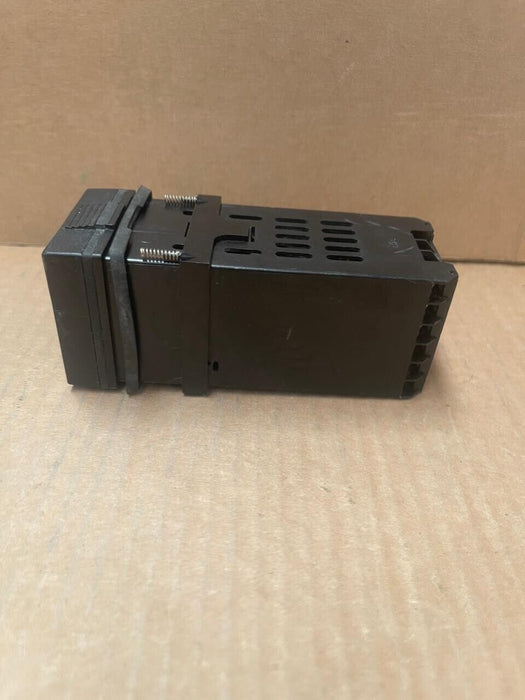

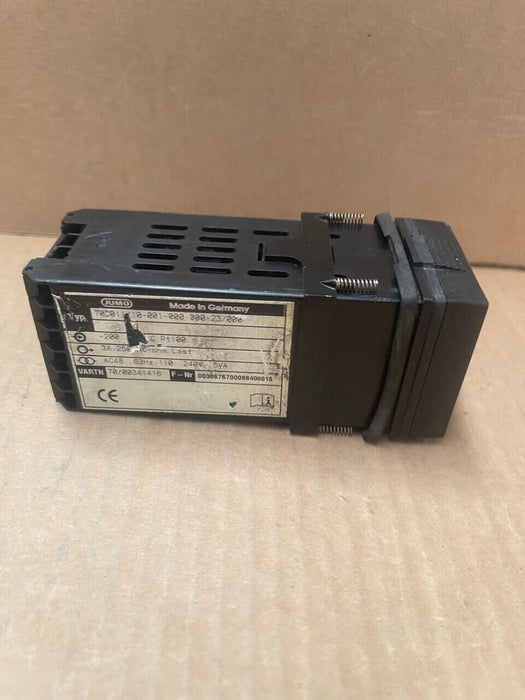

JUMO - 703011/10-001-000-000-23/000 - dTRON 16.1 Compact Microprocessor Controll

The JUMO dTRON 16.1 (Model 703011/10-001-000-000-23/000) is a compact microprocessor-based controller designed for precise temperature and process control in various industrial applications. Key features include:

• Display: Equipped with two 4-digit 7-segment displays; a red display for the process value and a green display for the setpoint, facilitating clear and intuitive monitoring.

• Control Functions: Offers configurable control functions, including single or double setpoint control and proportional control with different structures, allowing flexibility to meet specific process requirements.

• Inputs: Features a universal process value input compatible with standard transducers, accommodating various sensor types for diverse applications.

• Outputs: Includes two relay outputs for control purposes, with an optional third output that can be configured for different functions such as relay, analog, logic, transistor, or TRIAC output, enhancing control capabilities.

• Additional Features:

• Incorporates two limit comparators with eight selectable functions for process monitoring and safety.

• Provides a ramp function with adjustable gradients and a profile program function with up to four segments for complex process control.

• Supports self-optimization to automatically adjust control parameters for optimal performance.

• Optional RS485 serial interface with MODbus/Jbus protocol for integration into communication networks.

• Housing: Designed for flush panel mounting with a bezel size of 48 mm x 48 mm, complying with DIN 43 700 standards, and featuring a plug-in controller chassis for easy installation and maintenance.
