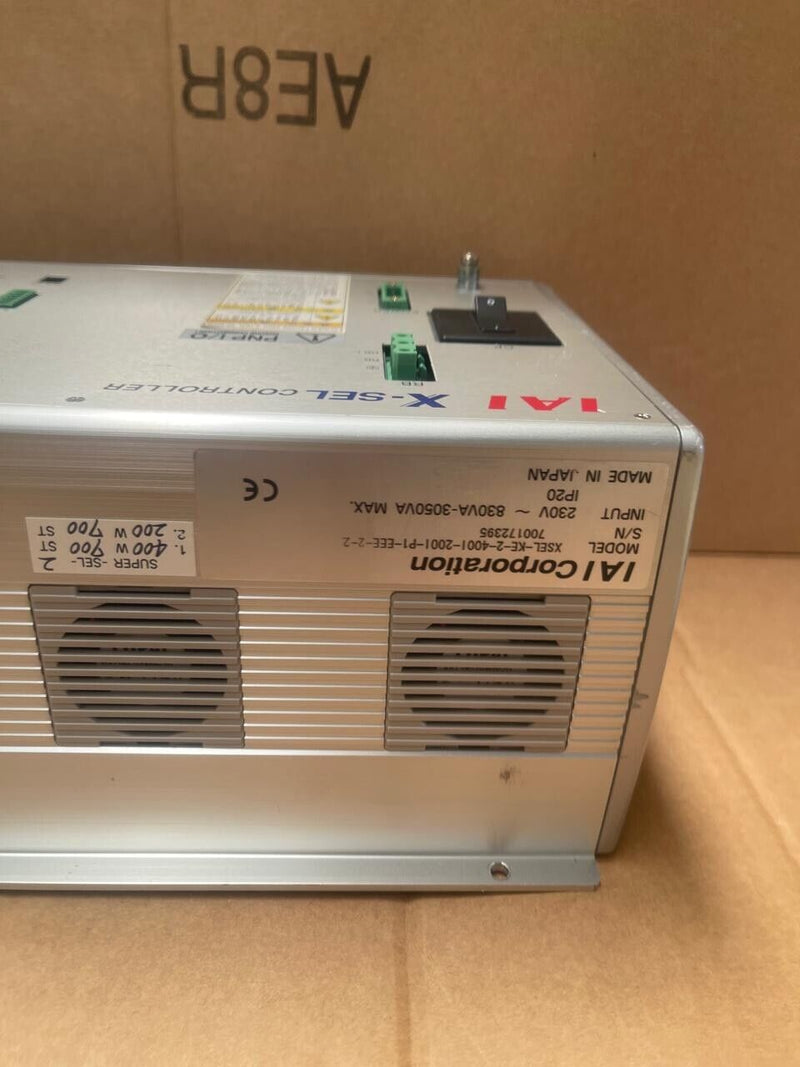

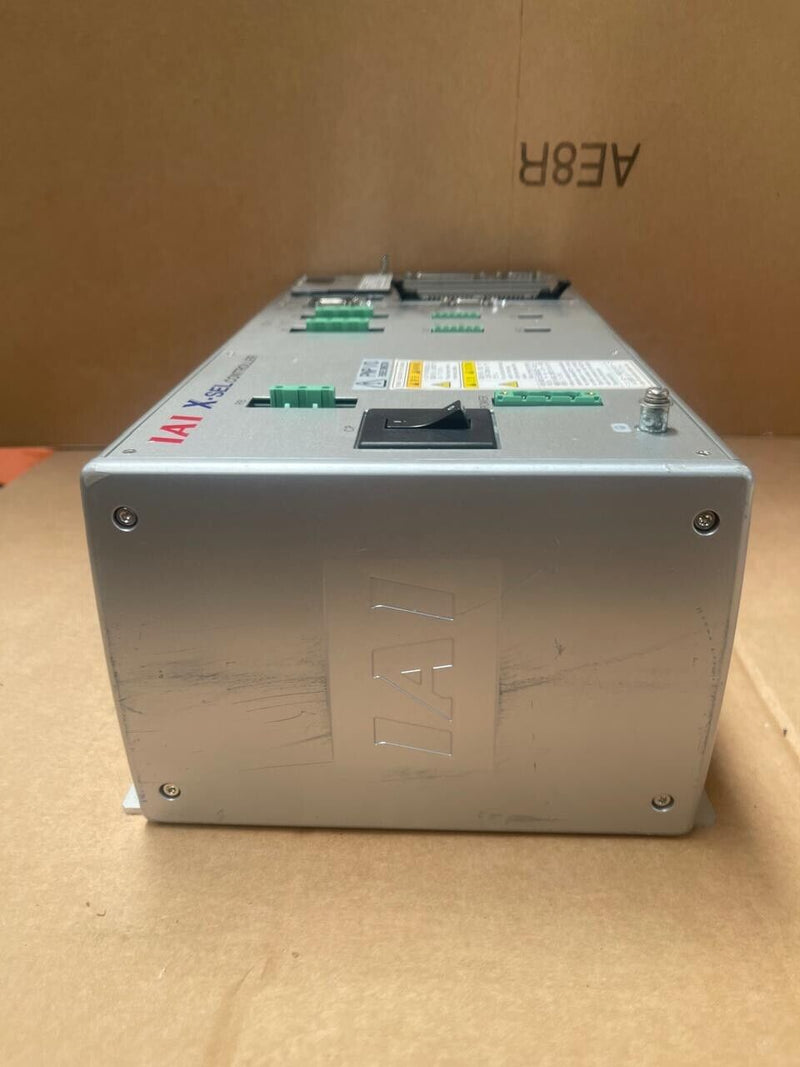

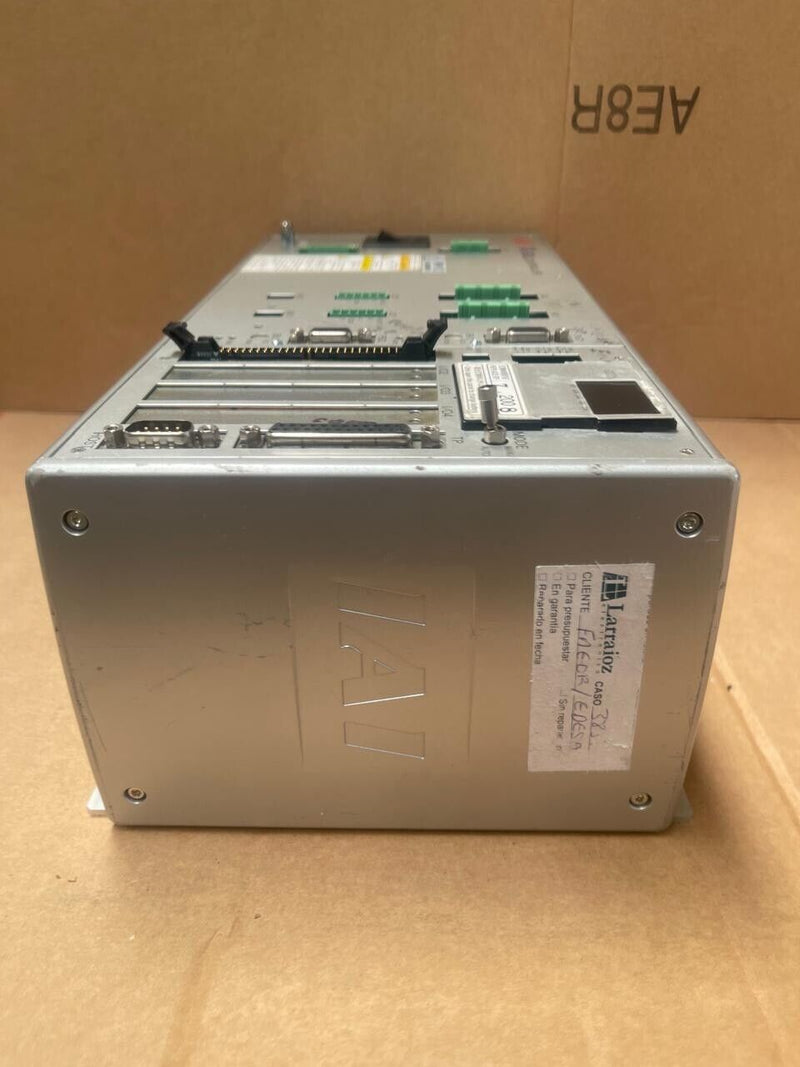

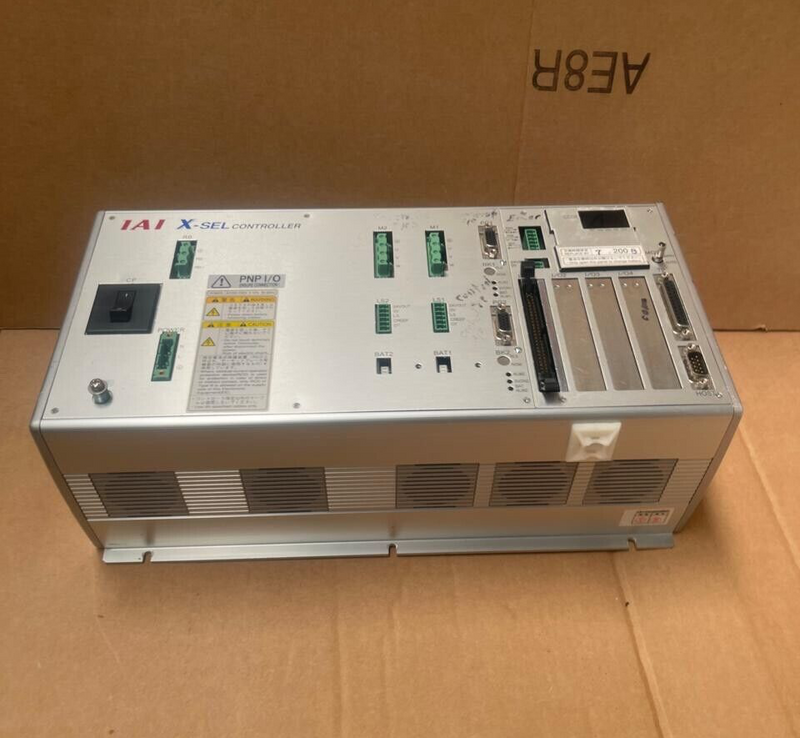

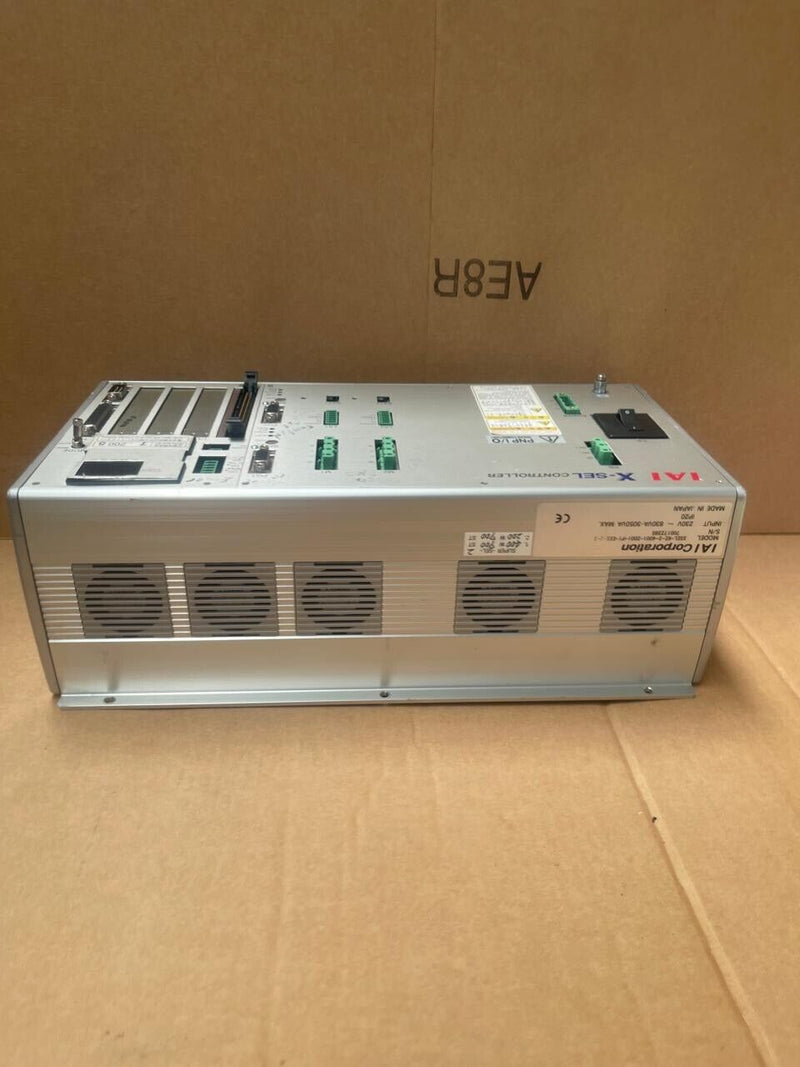

IAI - XSEL-KE-2-400I-200I-P1-EEE-2-2 - Multi-Axis Controller

The IAI XSEL-KE-2-400I-200I-P1-EEE-2-2 is a multi-axis controller from the X-SEL series, designed to manage and coordinate the movements of industrial robots and actuators. This controller is tailored for applications requiring precise and synchronized control across multiple axes, making it suitable for complex automation tasks.

Key Features:

• Multi-Axis Control: Capable of managing up to two axes, allowing for coordinated movements in automated systems.

• High Capacity: Supports actuators with capacities of 400W and 200W, providing flexibility for various load requirements.

• Program Operation: Utilizes the Super SEL programming language, enabling the creation of complex motion sequences and automation routines.

• Field Network Compatibility: Supports integration with various field networks, including DeviceNet, CC-Link, ProfiBus, and Ethernet, facilitating seamless communication within industrial environments.

• Safety Compliance: Designed to conform to safety standards, ensuring reliable operation in industrial settings.

Technical Specifications:

• Number of Controlled Axes: 2

• Maximum Output: 400W for the first axis, 200W for the second axis

• Input Power Supply: Single-phase 230 VAC

• Programming Language: Super SEL

• Number of Programs: Up to 64 programs with a total of 6,000 steps

• Position Registration: Capable of storing up to 3,000 positions

• Operating Temperature: 0 to +40°C

• Humidity Range: 30% to 85% RH (non-condensing)

• Dimensions: Approximately 265 mm (W) x 454.4 mm (H) x 150 mm (D)

• Weight: Approximately 6.0 kg
