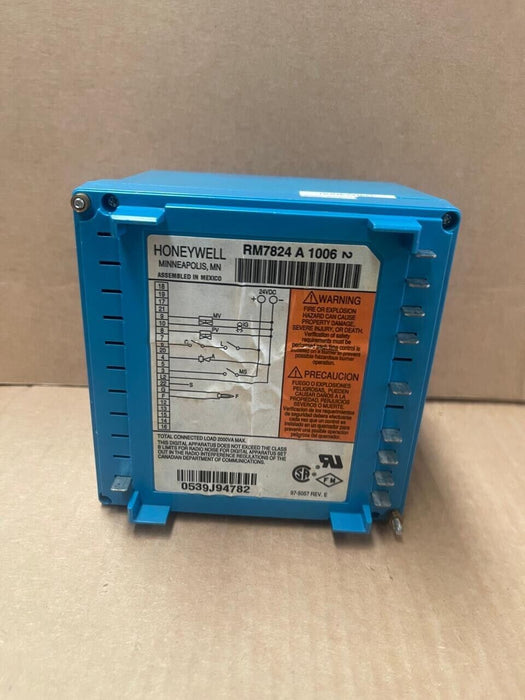

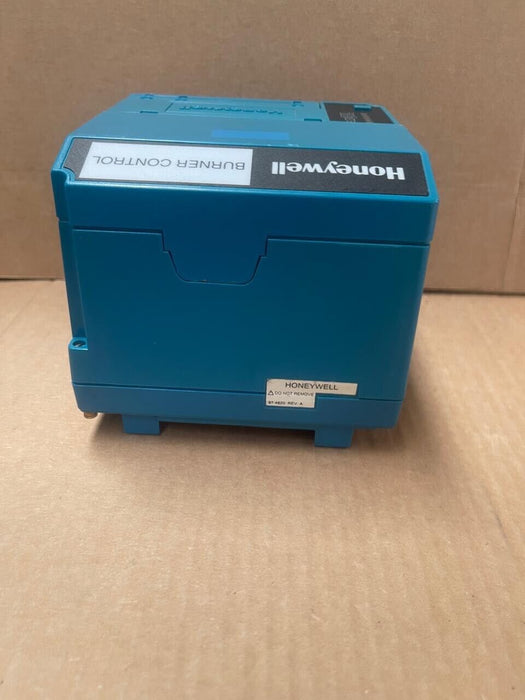

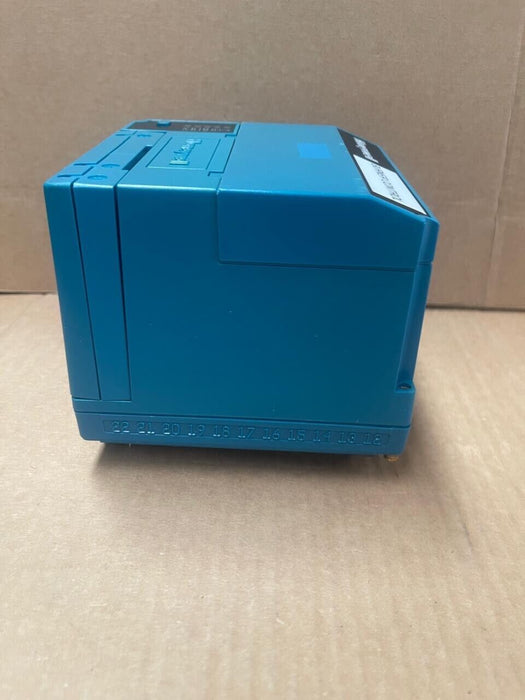

Honeywell - RM7824A1006 - Primary Control Relay Module, 24V DC

The Honeywell RM7824A1006 is a microprocessor-based integrated burner control designed for automatically fired gas, oil, or combination fuel single burner applications. It offers enhanced safety and functional capabilities beyond conventional controls. Key features include:

• Automatic Burner Sequencing: Manages the start-up and shutdown sequences of the burner to ensure safe operation.

• Flame Supervision: Monitors the presence of flame using compatible flame detectors to ensure reliable ignition and combustion.

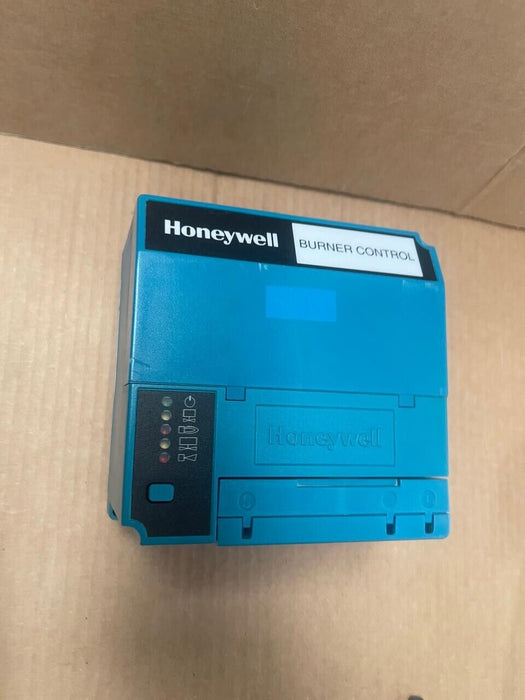

• System Status Indication: Equipped with five LEDs that provide real-time sequence information, aiding in system monitoring and diagnostics.

• Diagnostics and Troubleshooting: Offers system and self-diagnostics to facilitate maintenance and identify issues promptly.

• Selectable Recycle or Lockout on Loss of Flame: Allows configuration to either recycle the system or lockout in the event of flame loss, enhancing operational flexibility.

• Shutter Drive Output: Compatible with dynamic self-check flame detectors, ensuring continuous monitoring of detector integrity.

• Nonvolatile Memory: Retains history files and lockout status even after a power loss, preserving critical operational data.

• Plug-in Flame Amplifier: Supports various flame signal amplifiers, including R7824C with C7024E,F Flame Detectors; R7848A,B with C7015A Flame Detectors; and R7851B with C7927, C7962 Flame Detectors.

This control module is suitable for a wide range of industrial burner applications requiring reliable flame supervision and burner management.
