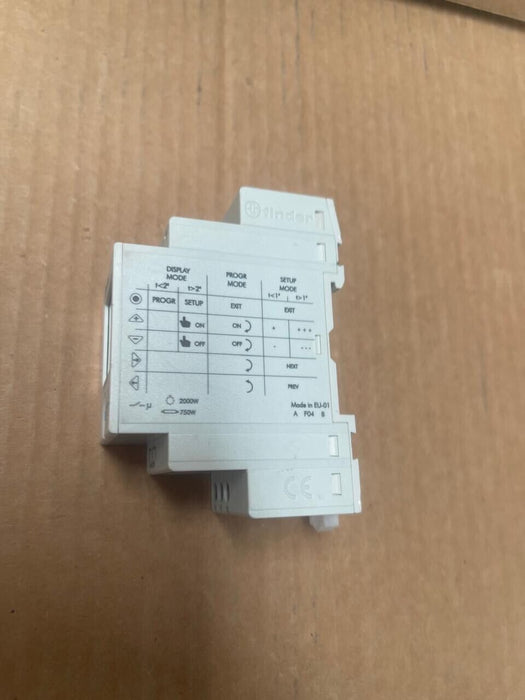

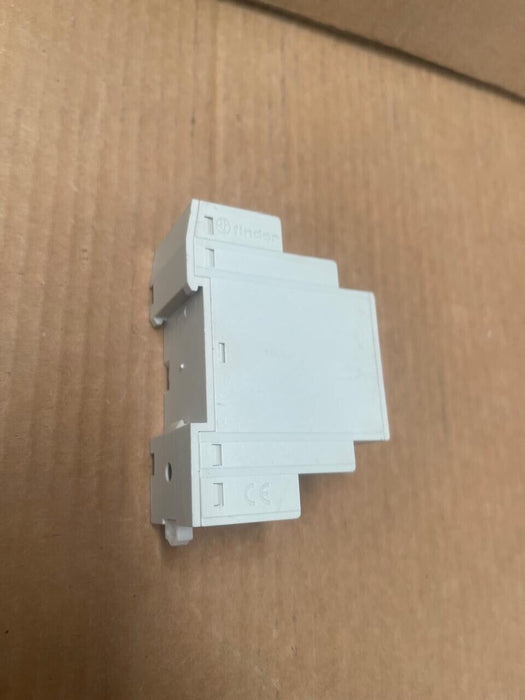

Finder - 12.51.8.230.0000 - Digital Time Switch, SPDT, 16A, 110-230V AC/DC

The Finder 12.51.8.230.0000 is a digital time switch designed for precise daily or weekly programming in industrial and commercial applications. Key features include:

• Contact Configuration: Single Pole Double Throw (SPDT), providing versatile switching capabilities.

• Current Rating: 16A at 250V AC, suitable for controlling various electrical loads.

• Supply Voltage: Operates on 110 to 230V AC/DC, accommodating a wide range of power sources.

• Programming Intervals: Offers 30-minute interval settings, allowing for detailed scheduling.

• Display: Features a backlit LCD for clear status indication, setup, and programming.

• Battery Backup: Equipped with an internal battery for setup and programming without an external power supply; the battery is easily replaceable from the front.

• Mounting: Designed for DIN rail installation, ensuring straightforward integration into control panels.

• Operating Temperature Range: -20°C to +50°C, suitable for various environmental conditions.

• Protection Rating: IP20, indicating protection against solid objects over 12mm and no protection against liquids.

• Additional Features:

• Protective separation between supply and contacts for enhanced safety.

• Cadmium-free contact material, aligning with environmental safety standards.

• Easily configurable for daily or weekly programming, providing flexibility in scheduling.

This time switch is ideal for applications requiring reliable and programmable control of electrical loads, such as lighting, heating, or ventilation systems.
