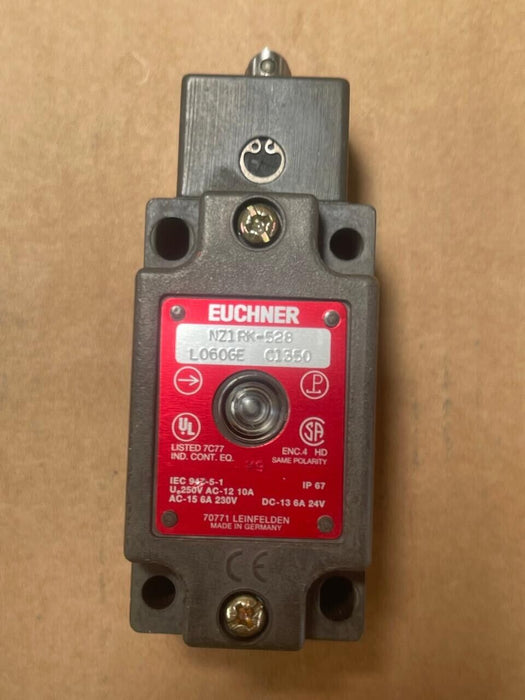

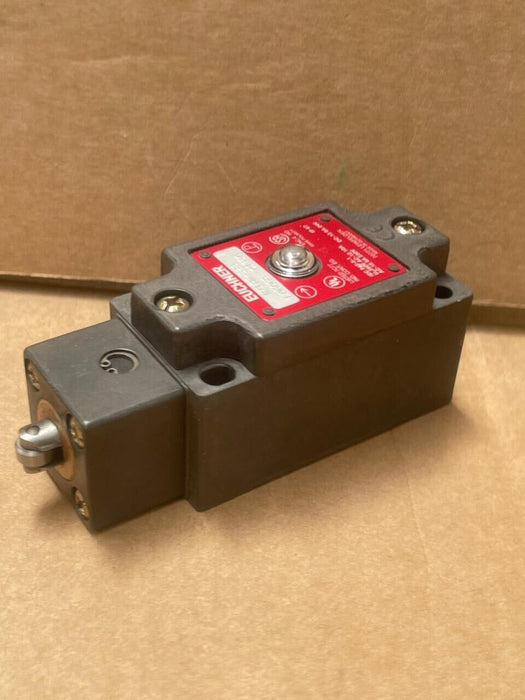

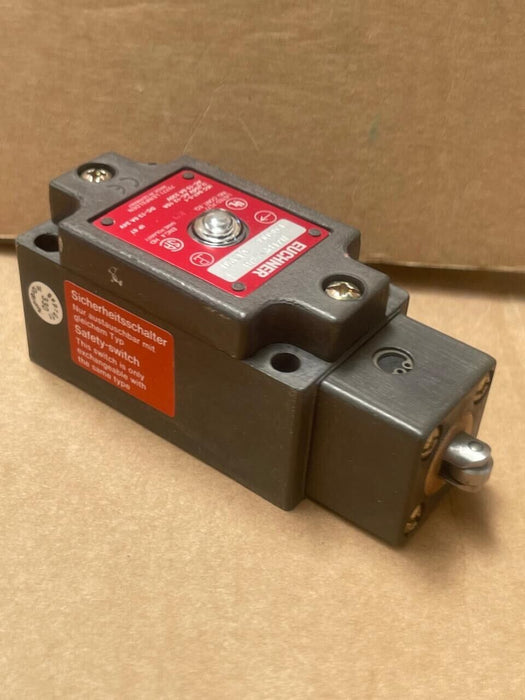

EUCHNER - NZ1RK-528 L0606GE C1350 - Safety Limit Switch

The EUCHNER NZ1RK-528L060-M is a safety limit switch designed for industrial applications requiring reliable position detection and safety interlocking. This switch features a roller plunger actuator with an 8 mm diameter steel roller, making it suitable for applications where precise linear actuation is necessary. It includes a cable entry point of M20 x 1.5 and is equipped with an LED indicator that operates within a voltage range of 12 to 60 V AC/DC, providing a red light for status indication. The switch operates with a slow-action switching contact mechanism, comprising one positively driven NC contact and one NO contact. Its robust construction and adherence to high safety standards ensure dependable performance in demanding industrial environments.

Key Features:

• Actuator Type: Roller plunger with an 8 mm diameter steel roller

• Contact Configuration: 1 positively driven NC contact and 1 NO contact

• LED Indicator: Red LED for status indication, operating at 12–60 V AC/DC

• Cable Entry: M20 x 1.5

• Robust Construction: Anodized die-cast alloy housing for durability

• High Safety Standards: Designed to meet stringent industrial safety requirements

Technical Specifications:

• Model Number: NZ1RK-528L060-M

• Actuator Type: Roller plunger with 8 mm steel roller

• Contact Configuration: 1 NC (positively driven), 1 NO

• Switching Principle: Slow-action switching contact

• LED Indicator Voltage: 12–60 V AC/DC

• Cable Entry: M20 x 1.5

• Housing Material: Anodized die-cast alloy

• Degree of Protection: IP67

• Ambient Temperature Range: -25 °C to +80 °C

• Mechanical Life: 30 million operations

• Approvals: EAC, DNV-GL, DGUV, CCC, cULus

Applications:

• Industrial Machinery: Ideal for monitoring the position of machine components to ensure safe operation

• Conveyor Systems: Suitable for detecting the presence or position of items on conveyors

• Automated Equipment: Used in various automated systems requiring reliable position sensing
