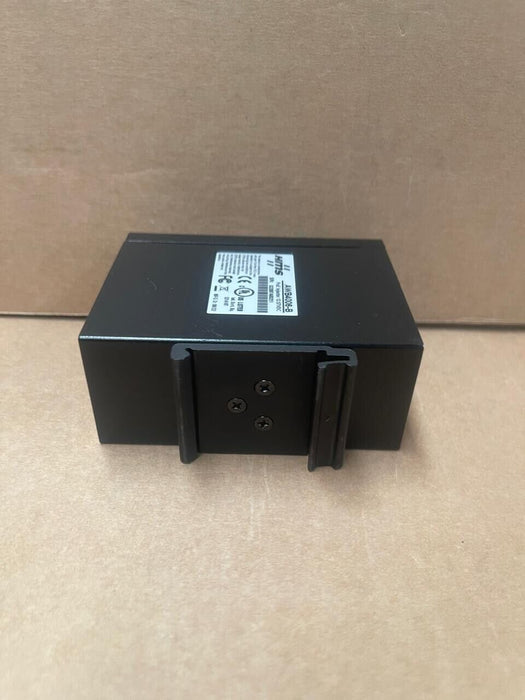

Anybus - AWB4006-B - Power over Ethernet (PoE) Injector 12-57VDC

The Anybus AWB4006-B is an industrial-grade Power over Ethernet (PoE) injector designed to supply power to Anybus devices, such as WLAN Access Points or Wireless Bolt RJ45 units, through a single Ethernet cable. This eliminates the need for separate power cables, simplifying installations and reducing clutter.

Key Features:

• PoE Support: Provides power and data transmission over a single Ethernet cable, removing the necessity for additional power wiring.

• Industrial-Grade Design: Features a robust IP30-rated metal housing, ensuring durability in demanding industrial environments.

• Flexible Mounting Options: Supports both DIN-Rail and wall mounting, offering versatility in installation.

Technical Specifications:

• Input Voltage: 12-57 VDC

• Output Voltage: 50 VDC

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +80°C

• Housing Material: Metal with IP30 protection class

• Dimensions: 15 mm (W) x 5 mm (H) x 20 mm (D)

• Weight: 500 grams
