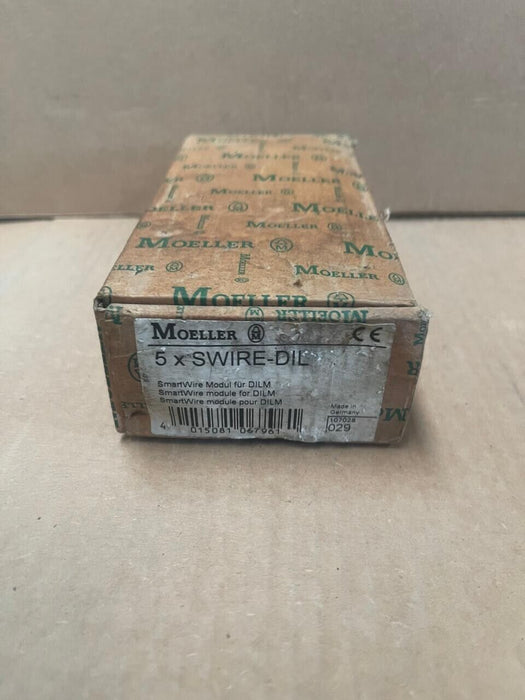

5XPCs Moeller - SWIRE-DIL - SmartWire-DT Coupling Module for DILM Contactors

The Moeller SWIRE-DIL is a SmartWire-DT coupling module designed to interface directly with Eaton’s DILM series contactors, ranging from DILM7 to DILM32. This module facilitates seamless integration into the SmartWire-DT communication system, enhancing control and monitoring capabilities within industrial automation setups. Key features include:

• Compatibility: Designed for direct mounting on DILM7 to DILM32 contactors, as well as DILA relays and DIMP20 devices.

• SmartWire-DT Integration: Enables connection to the SmartWire-DT gateway, allowing for streamlined communication and reduced wiring complexity.

• Digital Input: Equipped with one digital input for potential-free contacts, facilitating additional control or monitoring functions.

• Contactor Status Signaling: Provides feedback on the contactor’s switching position, enhancing system diagnostics and operational transparency.

• System Capacity: Supports up to 16 SmartWire-DT modules per chain, allowing for scalable system expansion.

• Installation Notes:

• Ensure the maximum current consumption of the contactor coils is considered within the SmartWire-DT chain.

• The A2 connection of the contactors should not be bridged.

• Electrical interlocking is achievable only via the module’s terminals for DILM contactors.

• Wiring kits DILM 12-XRL and PKZM0-XRM12 are incompatible with this module.
