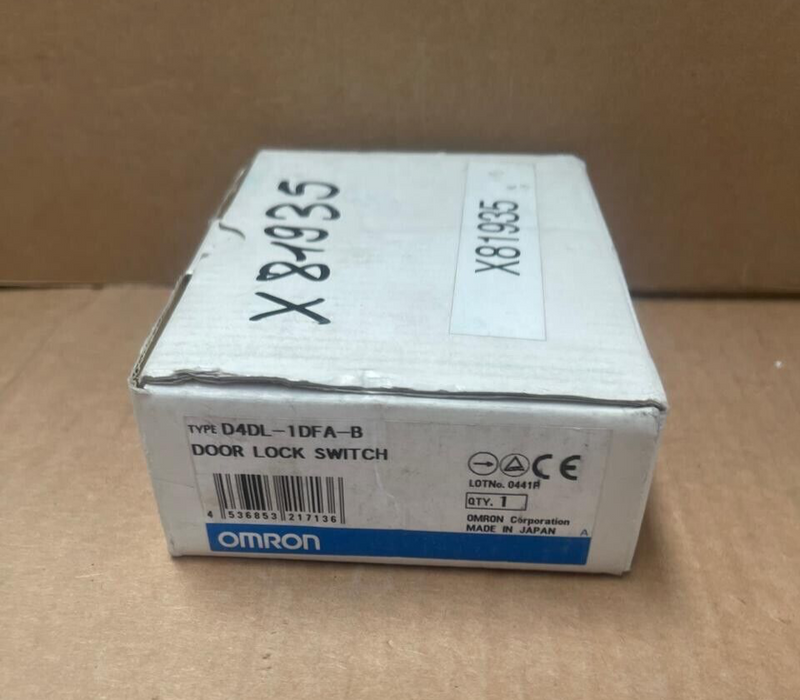

Omron - D4DL-1DFA-B - Guard Lock Safety-Door Switch, 2NC+1NC, 110V AC Solenoid R

The Omron D4DL-1DFA-B is a compact guard lock safety-door switch designed to enhance machine safety by ensuring that safety doors remain closed during hazardous operations. Key features include:

• Contact Configuration: Equipped with 2 Normally Closed (NC) safety contacts and 1 Normally Closed (NC) monitor contact, providing reliable safety and status monitoring.

• Locking Mechanism: Mechanical lock with a 110V AC solenoid release, ensuring the door remains locked during machine operation and can be unlocked electrically when safe.

• Head Mounting Direction: The head can be mounted in four possible directions, offering flexibility to accommodate various installation requirements.

• Indicator: Features an orange LED indicator compatible with 10 to 115V AC/DC, providing clear visual status of the switch.

• Housing Material: Constructed with a durable polymer housing, rated IP65, suitable for demanding industrial environments.

• Conduit Size: G1/2 conduit entry for straightforward electrical connections.

• Standards Compliance: Conforms to international safety standards, including EN60947-5-1 and GS-ET-19, ensuring high reliability and safety integrity.

This safety-door switch is ideal for applications requiring secure locking of safety guards or doors, preventing access to hazardous areas during machine operation and ensuring that machinery operates only when safety conditions are met.
