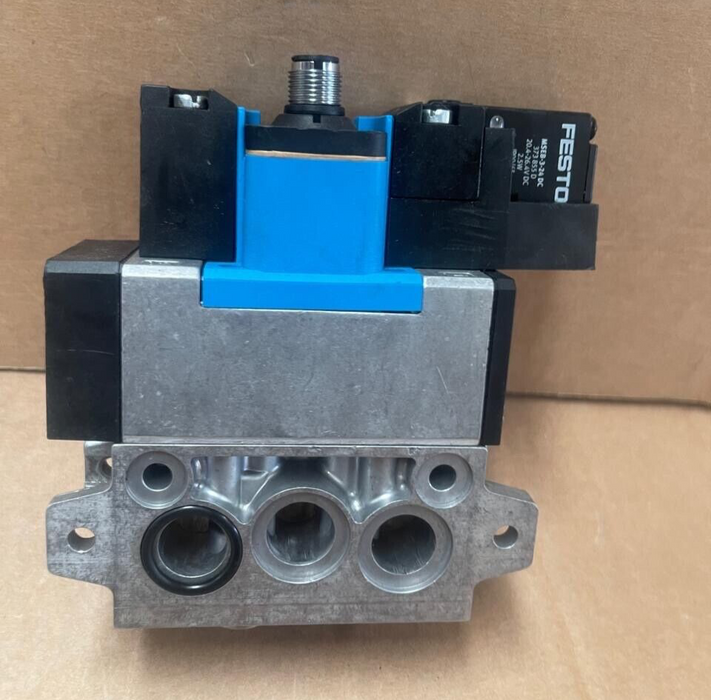

Festo - MEBH-5/2-D-1-ZSR-FR-C with MSEB-3-24-DC - 5/2-Way Double Solenoid

The Festo MEBH-5/2-D-1-ZSR-FR-C is a 5/2-way double solenoid pneumatic valve designed for precise control of pneumatic actuators. Paired with the MSEB-3-24-DC solenoid coil, this assembly ensures reliable operation in various industrial automation applications.

Key Features:

• Valve Function: 5/2-way double solenoid, allowing for two stable positions for directional control of airflow.

• Actuation Type: Electrical actuation via solenoid coils, enabling integration into automated systems.

• Flow Rate: Provides efficient airflow suitable for rapid actuator response.

• Operating Pressure Range: Suitable for a wide range of pneumatic applications.

• Mounting Position: Flexible installation in any orientation.

• Manual Override: Features manual override options for setup or maintenance.

• Degree of Protection: Rated for protection against dust and water ingress.

Technical Specifications:

• Valve Specifications:

• Model: MEBH-5/2-D-1-ZSR-FR-C

• Function: 5/2-way double solenoid valve

• Flow Rate: Standard nominal flow rate suitable for various applications

• Operating Pressure: Compatible with standard industrial pneumatic systems

• Manual Override: Equipped with manual override for maintenance purposes

• Mounting Position: Can be mounted in any orientation

• Solenoid Coil Specifications:

• Model: MSEB-3-24-DC

• Operating Voltage: 24 V DC

• Power Consumption: Approximately 4.5 W

• Duty Cycle: 100% continuous operation

• Electrical Connection: Plug-in connection compliant with industry standards

• Degree of Protection: IP65 with appropriate plug socket

• Ambient Temperature Range: Suitable for typical industrial environments
